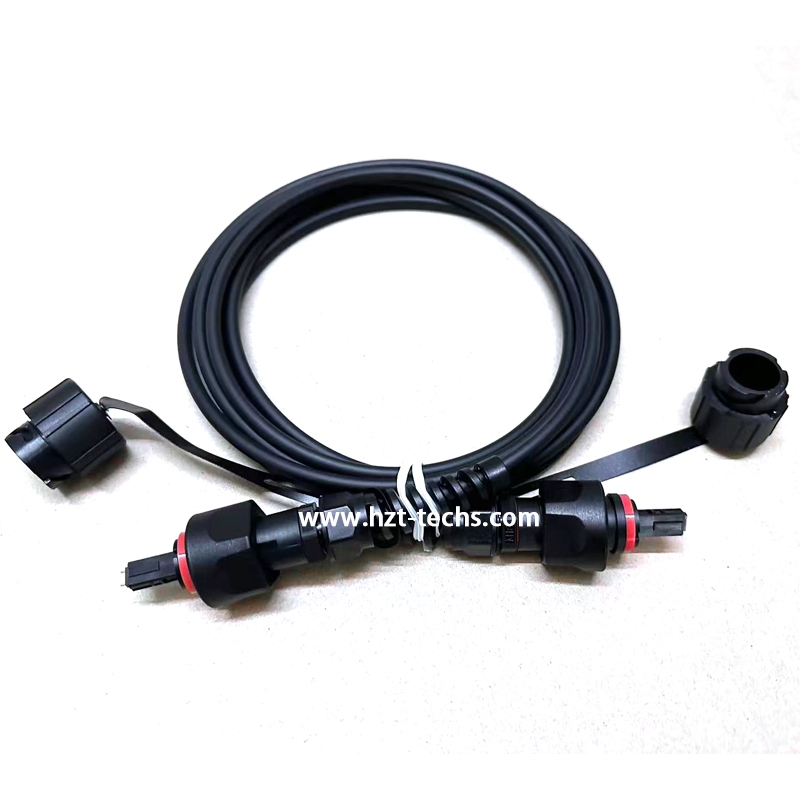

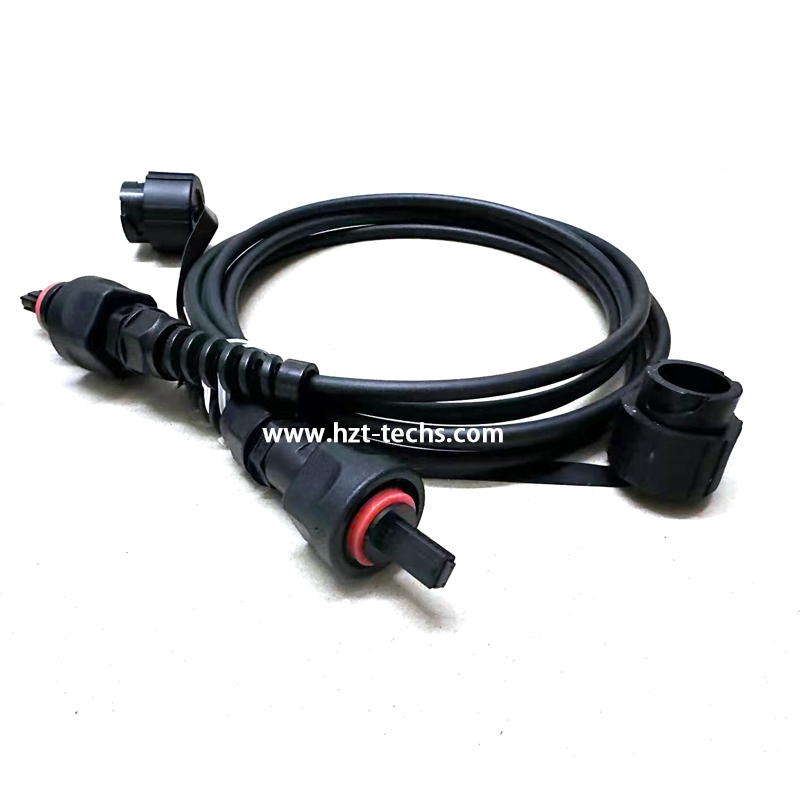

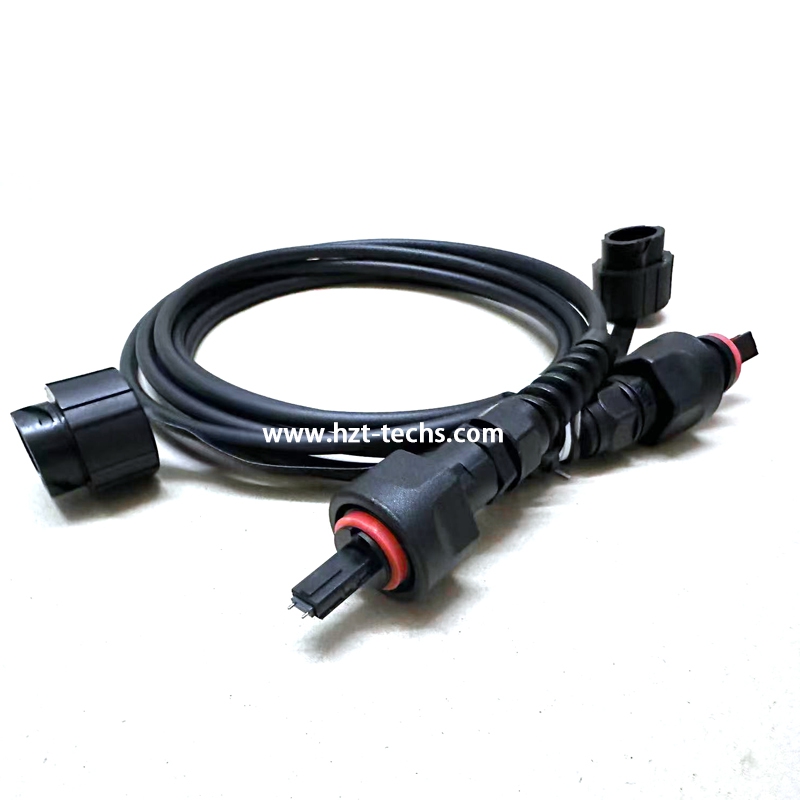

IP67 Waterproof 12 Core Singlemode G657A1 ODVA-MPOArmored Fiber Optical Cable Assembly

  • Description
  • Technical data
  • Make an inquiry

    Description
    ODVA outdoor waterproof fiber optic assemblies come with waterproof connectors of ODVA MPO/LC/SC,Special water-proofing design make sure the connector has blind-mating function, provides quick installation solutions and has good performance, it can compatible with all the similar products in market. Cable can be flat drop or round cable, amored or non-amored. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection.
    Features:
    Bayonet mechanical latch with IP67 grade
    LC, simplex SC or MPO connector with good repeat ability and interchangeability
    Suitable for different temperature and weather, harsh environment usage
    Application:
    Used for based station, RRU, RRH, LTE, BBU
    Remote interface application such as FTTx or towers
    Harsh environments where chemical, corrosive gases and liquids are common
    Mobile routers and internet hardware

    Specfication
    Item Parameter
    Connector Side A:  ODVA-MPO/MTP
    Connector Side B :  ODVA-MPO/MTP
    Fiber count:  12 Core
    Cable Diameter : 5.0/6.0±0.2mm
    Material & Color for Jacket :  TPU Black
    Insertion loss :

    singlemore  Standard Elite
    Typical value ≤0.30dB;
    Maximum ≤0.75dB;
    Typical value ≤0.15dB;
    Maximum ≤0.35dB;
    Multimode Typical value ≤0.50dB;
    Maximum ≤0.25dB;
    Typical value ≤0.10dB;
    Maximum ≤0.35dB;
    Return loss :  SM: ≥ 60dB (APC); ≥ 50dB (UPC) MM:≥ 30dB (UPC)
    Minimum allowable Tensile Strength (N)

    Short Term  600N
    Long  Term  250N

    Minimum allowable Crush Load (N/100mm)

    Short Term  800N
    Long Term  300N
    Minimum Bending Radius (MM)


    Short Term  20D
    Long Term  10D

    Mechanical Characteristics
    Endurance : 500 matings
    Vibration : Frequency: 10 to 55Hz,Amplitude: 0.75mm
    Cable retention :  400N (main cable); 50N (connector part)
    Strength of coupling mechanism : 80N for 2 to 3mm cable
    Cable torsion : 15N for 2 to 3mm cable
    Fall :  10 drops, 1m drop height
    Static lateral load 1N for 1h (main cable); 0.2N for 5min (ranch part)
    Cold -25°C, 96h duration
    Dry heat +70°C, 96h duration
    Change of temperature -25°C to +70°C, 12 cycles
    Humidity +40°C at 93%, 96h duration
