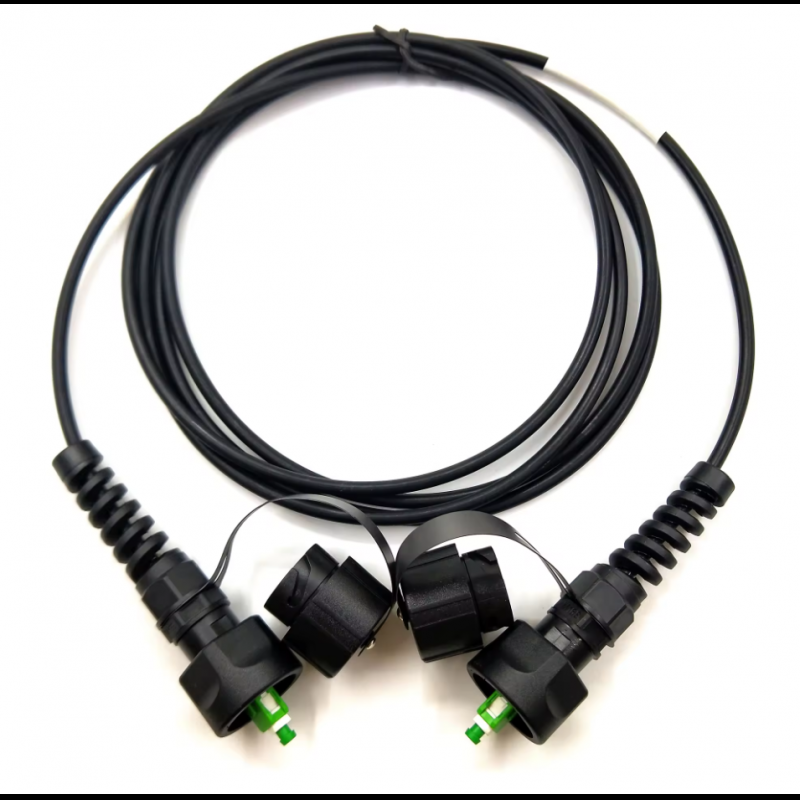

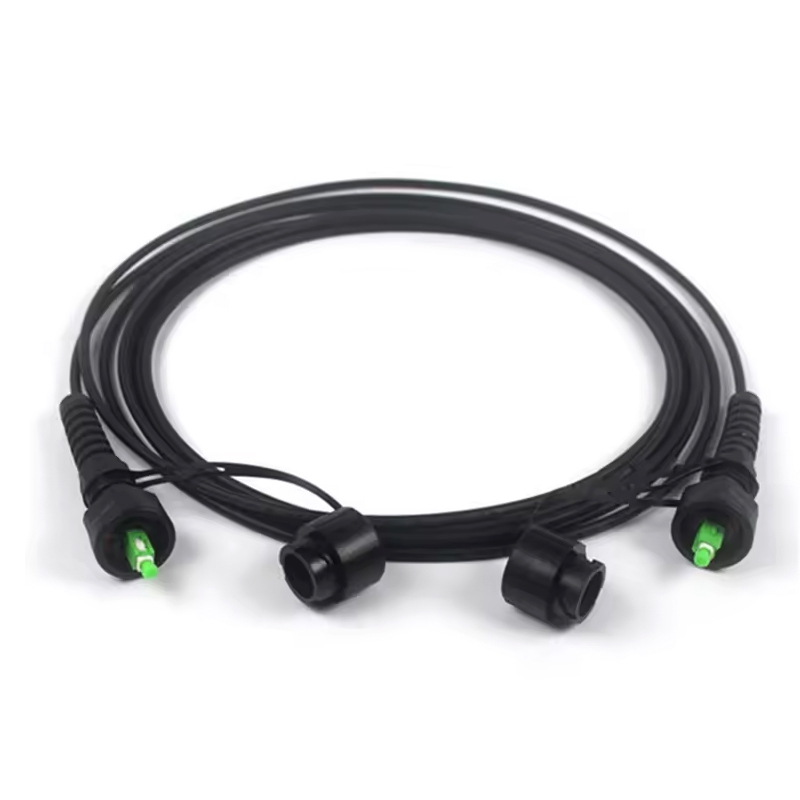

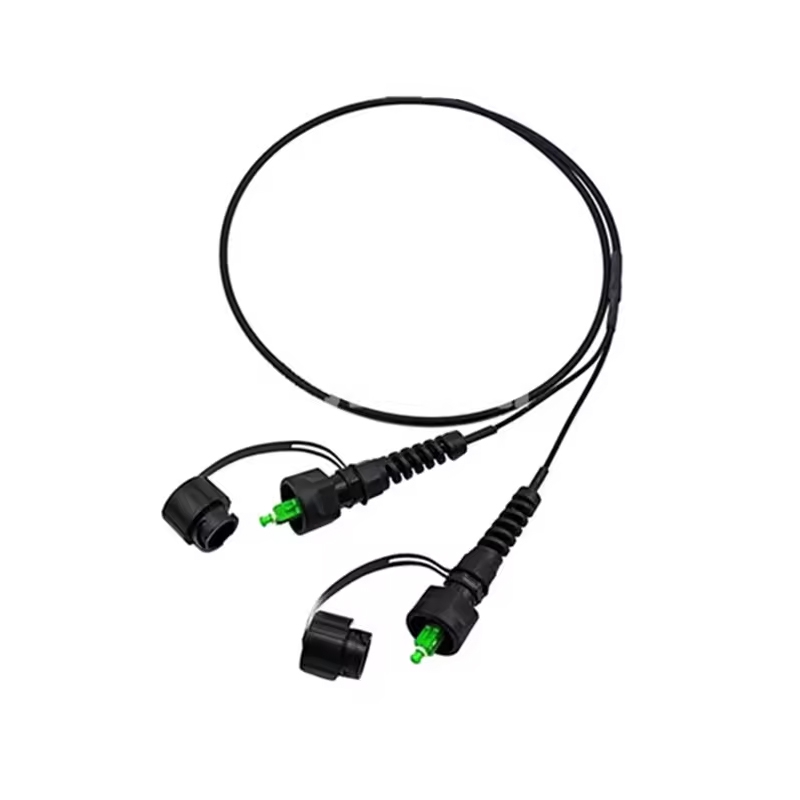

IP67 ODVA/SC-ODVA/SC Fiber Optic Cable Assembly

  • Description
  • Technical data
  • Make an inquiry
    Description
    Sealed Circular IP 67 ODVA Duplex LC fiber patch cable assemblies are available in both single mode and multimode version, this ODVA LC is a typical outdoor use fiber cable, suitable for different temperature and weather, especially ideal for FTTA and harsh environment use. our IP 67 ODVA LC duplex cables are designed as per IEC 61076-3-106 interfaces standard, integrated with our quality LC fiber connectors with loss optical loss; and we designed a rugged and armored PE jacketed optical cable body. we have these ODVA LC in 9/125 LC/UPC, 50/125 OM2/OM3/OM4/OM5 LC/UPC and 62.5/125 OM1 LC/UPC. cable assemblies can be custom made in ODVA Duplex LC to Breakout dual LC, or ODVA LC to other popular connectors.
    Features
    • IP67 rated for water and dust protection, corrosion resistance

    • Screwed mating mechanism to ensure the connection

    • Shock, vibration and mechanical crush resistance

    • Designed for harsh environment application with a broad temperature range

    • Customized cable length, and fiber type

    • Plug and play, easy and reliable, cost effective connection

    • Flame retardant and waterproof
      Application


    Specfication
    Item Parameter
    Connector Side A:  ODVA-SC
    Connector Side B :  ODVA-SC
    Cable Diameter : 5.0±0.2mm
    Material & Color for Jacket :  LSZH Color Black
    Insertion loss :

    Single mode:Typical l value≤0.15dB;Maximum≤0.30
    Multi mode:Typical value≤0.15dB;Maximum≤0.25
    Return loss :  SM: ≥ 60dB (APC); ≥ 50dB (UPC) MM:≥ 35dB (UPC)
    Minimum allowable Tensile Strength (N)

    Short Term  800N
    Long  Term  400N

    Minimum allowable Crush Load (N/100mm)

    Short Term  2000N
    Long Term  1000N
    Minimum Bending Radius (MM)


    Short Term  20D
    Long Term  10D

    Mechanical Characteristics
    Endurance : 500 matings
    Vibration : Frequency: 10 to 55Hz,Amplitude: 0.75mm
    Cable retention :  400N (main cable); 50N (connector part)
    Strength of coupling mechanism : 80N for 2 to 3mm cable
    Cable torsion : 15N for 2 to 3mm cable
    Fall :  10 drops, 1m drop height
    Static lateral load 1N for 1h (main cable); 0.2N for 5min (ranch part)
    Cold -25°C, 96h duration
    Dry heat +70°C, 96h duration
    Change of temperature -25°C to +70°C, 12 cycles
    Humidity +40°C at 93%, 96h duration
