Waterproof NSN-NSN Duplex Singlemode Fiber Optic Cable

  • Description
  • Technical data
  • Make an inquiry
    Description

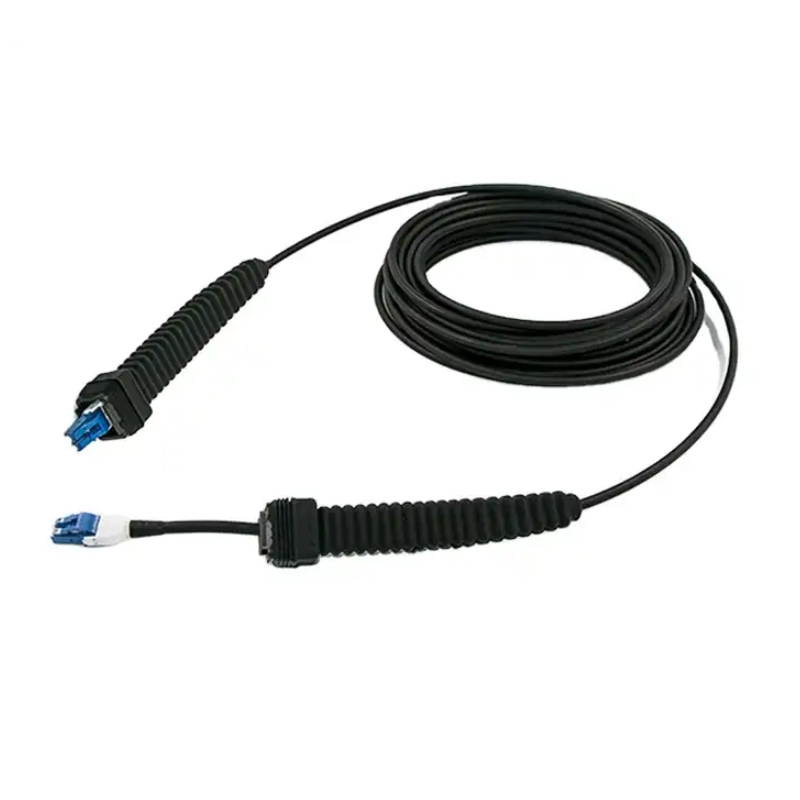

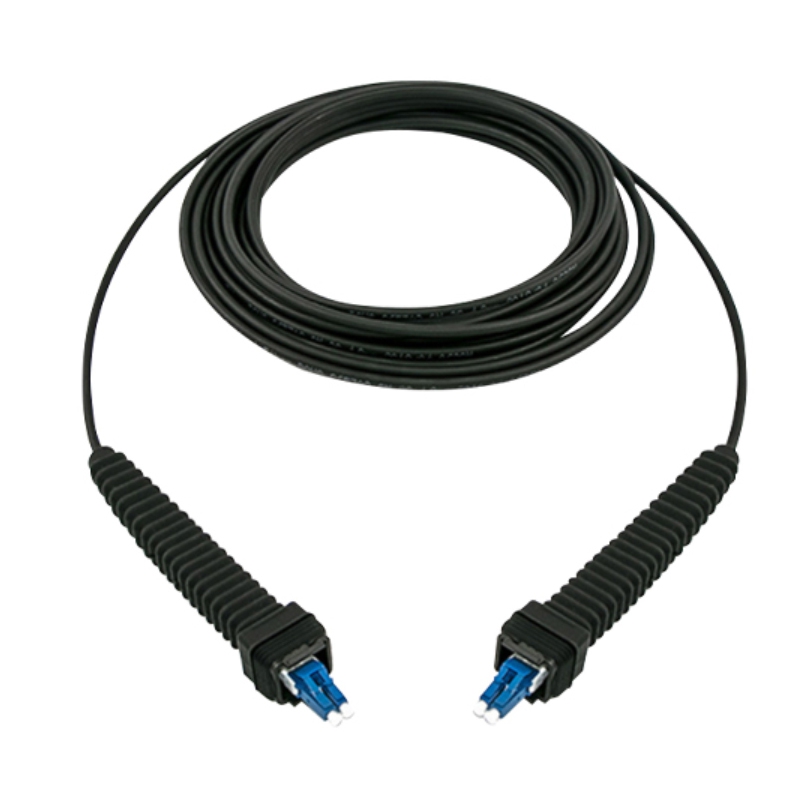

    The NSN Boot Fiber Optic Jumper is a high-performance optical cable designed for seamless connectivity in telecommunications and data networks. Featuring a robust construction, this jumper is equipped with a protective boot that safeguards the fiber optic connectors from physical damage and environmental factors. The boot design not only enhances durability but also ensures proper alignment and strain relief, minimizing the risk of signal loss. A Fiber Optic Outdoor Patch Cable is a specialized type of cable designed for outdoor use in telecommunications and data networking applications. These cables are constructed with durable materials that provide protection against harsh environmental conditions, including UV radiation, moisture, and extreme temperatures. The Duplex LC Fiber Optic Jumper is a compact and high-performance optical cable designed for efficient data transmission in networking applications.

    Featuring LC connectors, this jumper supports bidirectional data flow over two separate fibers, making it ideal for high-density environments. Constructed with premium-grade fiber, it ensures minimal signal loss and high bandwidth performance. Suitable for both indoor and outdoor use, the Duplex LC Fiber Optic Jumper is essential for building reliable fiber optic networks, providing high-speed connectivity and optimal data transfer rates.

    Features
    ●Easily add/install jumper cables for a future expansion.
    ●Low insertion loss and added loss.
    ●Height of attenuation.
    ●Flexibility with small bending radius and excellent cable routing properties.
    ●End-face geometry and quality superior than IEC and Telcordia standards.
    ●The material in the jumper cable are all-weather and UV-resistant.
    ●IP67 water and dust protection.
    ●Mechanical performance: IEC61754-20 standard.
    ●RoHS and REACH materials compliant.

    NSN boot Fiber Optic Jumper Dimensional Diagrams




    Specfication
    Item Parameter
    Connector Side A:  NSN
    Connector Side B :  NSN
    Cable Diameter : 7.0±0.2mm
    Material & Color for Jacket :  LSZH/PVC/TPU/OFNR
    Insertion loss :

    		 Single mode:Typical l value≤0.15dB;Maximum≤0.30
    Multi mode:Typical l value≤0.15dB;Maximum≤0.25
    Return loss :  SM: ≥ 60dB (APC); ≥ 50dB (UPC) MM:≥ 35dB (UPC)
    Minimum allowable Tensile Strength (N)

    		 Short Term  600N
    Long  Term  1000N

    Minimum allowable Crush Load （N/100mm)

    		 Short Term  1000N
    Long Term  2000N
    Minimum Bending Radius (MM)


    		 Short Term  20D
    Long Term  10D

    Mechanical Characteristics
    Endurance : 500 matings
    Vibration : Frequency: 10 to 55Hz,Amplitude: 0.75mm
    Cable retention :  400N (main cable); 50N (connector part)
    Strength of coupling mechanism : 80N for 2 to 3mm cable
    Cable torsion : 15N for 2 to 3mm cable
    Fall :  10 drops, 1m drop height
    Static lateral load 1N for 1h (main cable); 0.2N for 5min (ranch part)
    Cold -25°C, 96h duration
    Dry heat +70°C, 96h duration
    Change of temperature -25°C to +70°C, 12 cycles
    Humidity +40°C at 93%, 96h duration

    If you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
