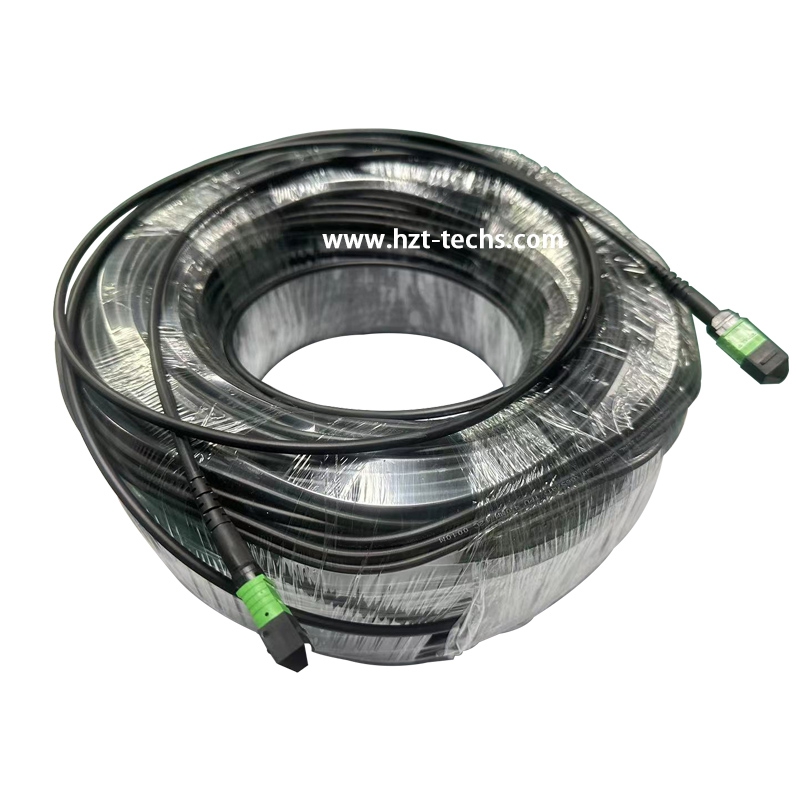

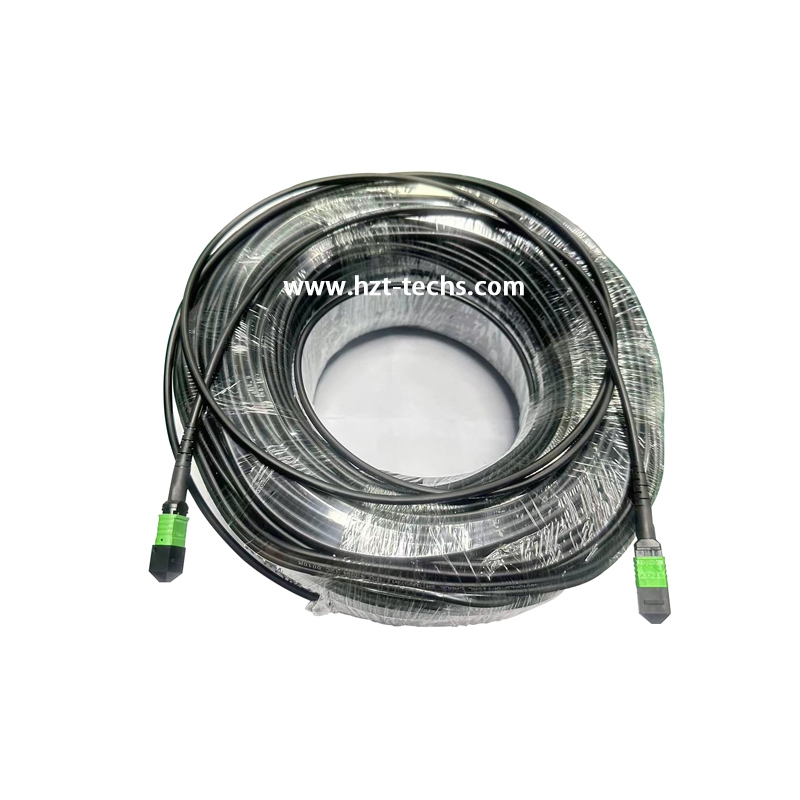

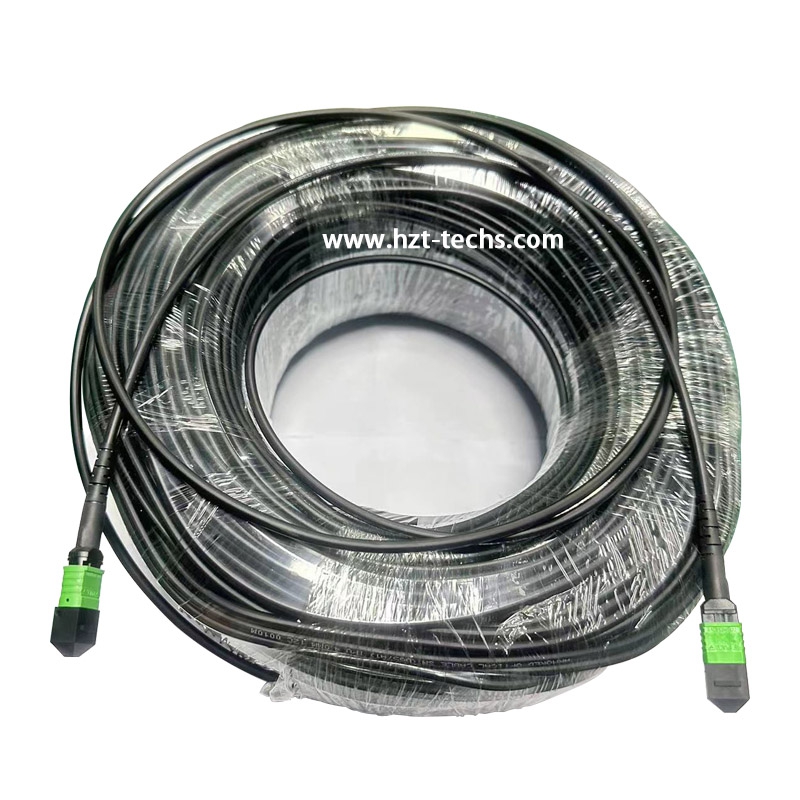

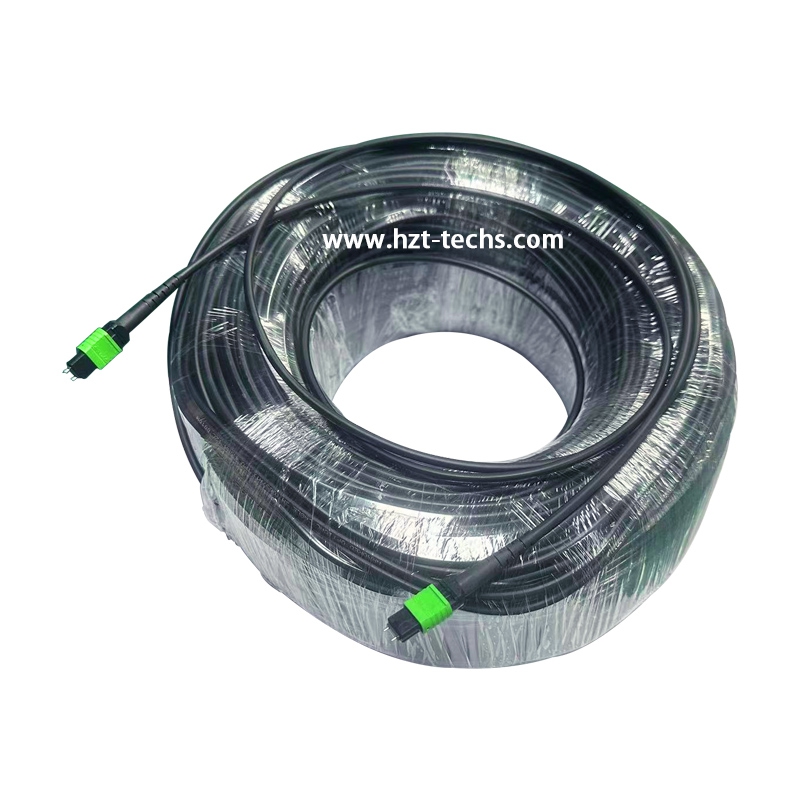

12 Core MTP/MPO-MTP/MPO Singlemode G657A1 Fiber Optical Patch Cords

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT Technology Armored MTP-MPT Fiber Patch Cords  is specifically designed are designed with a Ruggedized, crush resistant, durable jacket for superior flexibility and abrasion resistance across a wide temperature range. Single jacket up to 12 strands 125micron fibers with Aramid yarns strength member formed to one Su.Then in the helical tube and surrounded with metal braiding and TPU jacket for high crush resistance for harsh outdoor application.
    Both ends of this Armored MTP Fiber Patch Cords use MTP/MPO waterproof connectors, it can be 8 Core, 12 Core or 24 Core.    It has a rugged shell with Spiral SUS steel tube and high density Kevlar, it not only has high flexible properties, but also 10 times stronger than regular fiber optical cable and has a 40% higher rated range of operating temperature. Widely use for indoor, outdoor or Harsh environments.
    Feature
    ● Tight buffer fiber ease of stripping.
    ● The jacket is anti-aging, anti-abrasion.
    ● Kevlar improves the tensile strength and mechanical intensity.
    ● Kevlar make cable have excellent tensile strength.
    ● All dielectric structure protect it from electromagnetic influence.
    ● Good mechanical and environmental characteristics.
    ● Military communication system cable distribution.



    Specfication
    Technique Parameter :
    Singlemode
    Multimode
    Connector Type :
    MTP® Female/Male; MPO Female/Male
    Fiber Count :
    8 Fibers, 12 Fibers, 24 Fiber
    Fiber Type:
    Singlemode(G657A1, G657A2,)                               Or Multimode (OM2, OM3, OM4, OM5)
    Connector Side A :
    MTP/MPO
    Connector Side B:
    MTP/MPO
    Insertion Loss:
    Standard
    ≤0.75dB (0.30dB Typ.)
    ≤0.50dB (0.25dB Typ.)
    Elite
    ≤0.35dB (0.20dB Typ.)
    ≤0.35dB (0.15dB Typ.)
    Return Loss :
    UPC Polish
    ≥50dB
    30dB
    APC Polish
    ≥60dB
    -
    Attenuation :
    1310nm: ≤0.34dB/km
    1550nm: ≤0.20dB/km
    850nm: ≤3.0dB/km
    1300nm: ≤1.0dB/km
    Polarity :
    Type A (Straight),
    Type B (Cross Over),
    Type C (Cross Pair)
    Cable Length :
    1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 30m … 300m or Customized
    Cable Diameter :
    5.0mm
    Cable Jacket Material :
    Thermoplastic polyurethane(TPU)
    Cable Jacket Color :

    Black

    Durability :
    ≥100 times
    Permit Flattening Force

    1000N/100mm

    Allowable Tensile force
    Long term:

    200 N

    Short term:

    400N

    Bending Radius
    Static:

    10D /mm

    Dynamic:

    20D /mm

    Operating Temperature:
    -20℃ ~ +70℃
    Storage Temperature :
    -20℃ ~ +70
