Technique Parameter :
|
Singlemode
|
Multimode
|
|

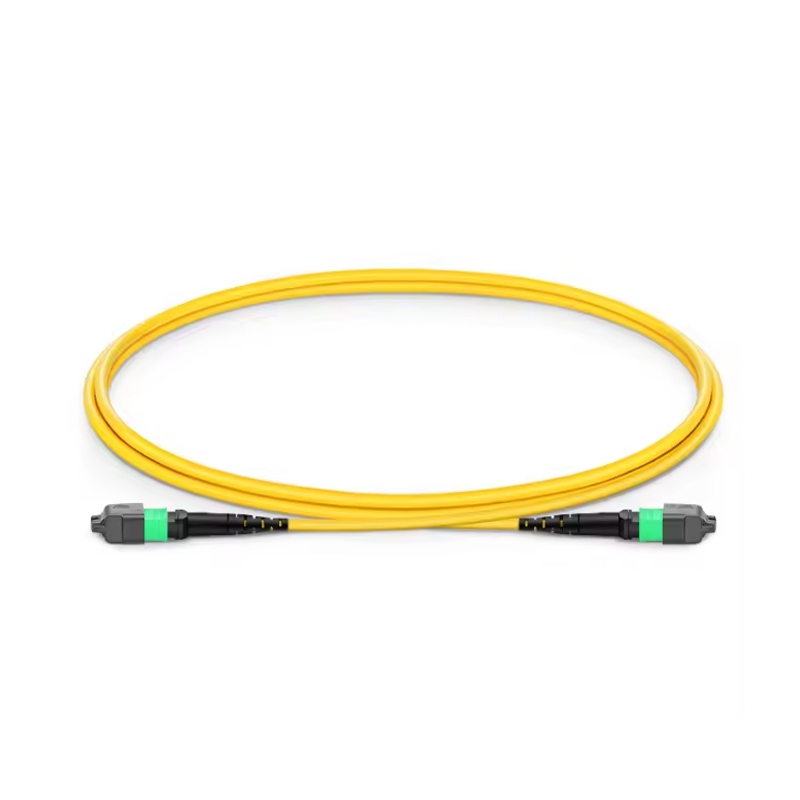

Connector Type :
|
MTP® Female/Male; MPO Female/Male
|
|
Fiber Count :
|
8 Fibers, 12 Fibers, 24 Fiber
|
|
Fiber Type:
|
Singlemode(G657A1, G657A2,) Or Multimode (OM2, OM3, OM4, OM5)
|
|
Connector Side A :
|
MTP/MPO
|
|
Connector Side B:
|
MTP/MPO
|
|
Insertion Loss:
|
Standard
|
≤0.75dB (0.30dB Typ.)
|
≤0.50dB (0.25dB Typ.)
|
|
Elite
|
≤0.35dB (0.20dB Typ.)
|
≤0.35dB (0.15dB Typ.)
|
|
Return Loss :
|
UPC Polish
|
≥50dB
|
≥30dB
|
|
APC Polish
|
≥60dB
|
-
|
|
Attenuation :
|
1310nm: ≤0.34dB/km
1550nm: ≤0.20dB/km
|
850nm: ≤3.0dB/km
1300nm: ≤1.0dB/km
|
|
Polarity :
|
Type A (Straight),
Type B (Cross Over),
Type C (Cross Pair)
|
|
Cable Length :
|
1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 30m … 300m or Customized
|
|
Cable Diameter :
|
4.0mm
|
|
Cable Jacket Material :
|
Thermoplastic polyurethane(TPU)
|
|
Cable Jacket Color :
|
Black
|
|
Durability :
|
≥100 times
|
|
Permit Flattening Force
|
1000N/100mm
|
|
Allowable Tensile force
|
Long term:
|
200 N
|
|
Short term:
|
400N
|
|
Bending Radius
|
Static:
|
10D /mm
|
|
Dynamic:
|
20D /mm
|
|
Operating Temperature:
|
-20℃ ~ +70℃
|
|
Storage Temperature :
|
-20℃ ~ +70℃
|
