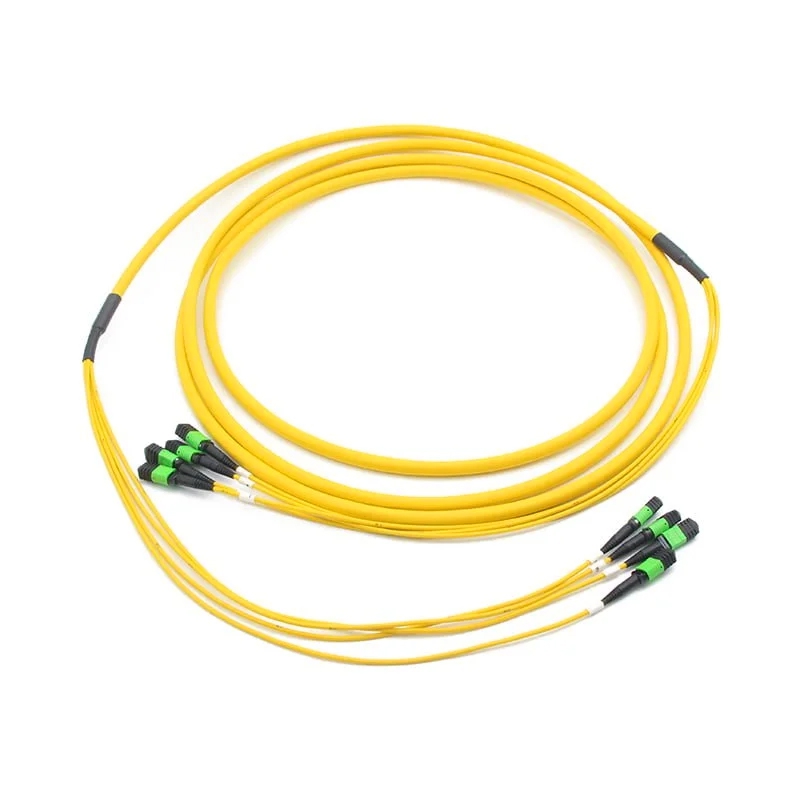

48 Core MTP/MPO Cable--4*MTP/MPO- 4*MTP/MPO Singlemode Fiber Patch Cords

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT Technology‘s 48 Core MTP/MPO Cable--4*MTP/MPO- 4*MTP/MPO Singlemode Fiber Patch Cords  is a factory pre-terminated 48-fiber single mode MPO patch cord for limited space cabling. It includes 4x high-performance MPO-12 female connectors on each end and 4x12fibers optical cable for optimal functionality and reliability. One MPO-12 connector is roughly the same size as an SC connector but can provide up to 12 times the density, thereby providing significant space and cost savings. Additionally, it offers consistent user quality, much faster installation, and simpler cable management.
    HZT Technology offers high quality high-count MTP fiber optic assemblies. The cables range from 12 to 144 fibers, in 12-fiber sub-units.
    All cables are UL plenum rated and can be used in riser spaces. Each fiber in every connector comes pre-tested with test results. The cables come ready to be plugged-in. These high-count cables are optimal for use in Data Centers and other high-density installations.
    MTP male connector is the standard, but custom cables using MTP female as well as MTP to hybrid assemblies are available.
    Feature
    ● 4 x 12 Core MTP to 4 x 12  Core MTP connectors;
    ● 4 Fibers, 8 Fibers, 12 Fibers, 24 Fibers,
    24 Fibers, 36 Fibers, 48 Fibers, 72 Fibers, 96 Fibers, 144 Fibers version on request;
    ● UPC or APC polish available
    ● 100% tested for low insertion loss and back reflection
    ● Optional MPO or MTP Connector
    ● Support 40G and 100G parallel optics networks
    ● Support OM3, OM4, SM optic fiber
    ● Special specification available upon custom request

    Application
    ● Data communication network;
    ● Optical System Access network;
    ● High-density architectures;
    ● Telecommunication networks;
    ● Local Area Networks (LANs);
    ● 40G and 100Gbps Fiber Network;
    ● Precise installations;
    ● Wide Area Networks (WANs).



    Technique Parameter :
    Singlemode
    Multimode
    Connector Type :
    MTP® Female/Male; MPO Female/Male
    Fiber Count :
    48 Fibers
    Fiber Type:
    OS2
    Connector Side A:
    4 × US Conec MTP/OPTICO MPO
    Connector Side B:
    4 × US Conec MTP/OPTICO MPO
    Insertion Loss:
    Standard
    ≤0.70dB (0.45dB Typ.)
    ≤0.60dB (0.40dB Typ.)
    Elite
    ≤0.35dB (0.20dB Typ.)
    ≤0.35dB (0.15dB Typ.)
    Return Loss :
    UPC Polish
    ≥50dB
    ≥20dB
    APC Polish
    ≥60dB
    -
    Attenuation :
    1310nm: ≤0.34dB/km
    1550nm: ≤0.20dB/km
    850nm: ≤3.0dB/km
    1300nm: ≤1.0dB/km
    Polarity :
    Type A (Straight),
    Type B (Cross Over),
    Type C (Cross Pair)
    Cable Length :
    1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 30m … 300m or Customized
    Cable Diameter :
    Main Cable diameter is 9.5 mm, Branch Cable is 3.0mm
    Cable Jacket Material :
    Low Smoke Zero Halogen (LSZH), Plenum (OFNP)
    Cable Jacket Color :
    Yellow
    OM2: Orange ,
    OM3: Aqua,
    OM4: Magenta ,
    OM5: Lime Green
    Durability :
    ≥100 times
    Tensile Load :
    Long term: 80N, Short term: 160N
    Operating Temperature:
    -20℃ ~ +70℃
    Storage Temperature :
    -40℃ ~ +85℃
