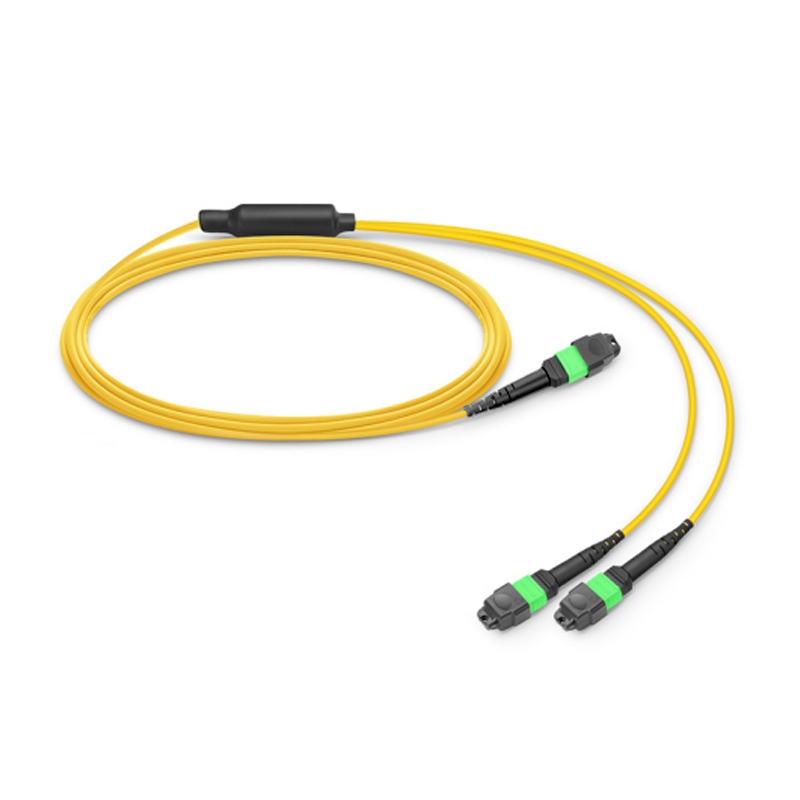

24 Core MTP to 2 x 12 Core MTP SM Fiber Optic Patch Cable

  • Description
  • Technical data
  • Make an inquiry
    Description

    24 Fibers MTP Fiber Optic Cables are designed to provide a more flexible multi-fiber cabling system based on MTP products. Unlike MTP harness cables, MTP Fiber Optic Cables are terminated with MTP connectors at both ends, providing more possibilities for existing 24-core cabling systems.
    HZT 24 Core MTP to 2 x 12 Core MTP SM Fiber Optic Patch Cable allow customers to convert 100G network to 40G network, the conversion cable with one 24-core MTP Fiber connector, another end with 2 pieces of 12-core MTP connectors.

    Feature
    ● 1 x 24 Core MTP to 2 x 12  Core MTP connectors;
    ● 4Fibers, 8Fibers, 12Fibers or 24Fibers version on request;
    ● UPC or APC polish available
    ● 100% tested for low insertion loss and back reflection
    ● Optional MPO or MTP Connector
    ● Support 40G and 100G parallel optics networks
    ● Support OM3, OM4, SM optic fiber
    ● Special specification available upon custom request

    Application
    ● Data communication network;
    ● Optical System Access network;
    ● High-density architectures;
    ● Telecommunication networks;
    ● Local Area Networks (LANs);
    ● 40G and 100Gbps Fiber Network;
    ● Precise installations;
    ● Wide Area Networks (WANs).



    Technique Parameter :
    Singlemode
    Multimode
    Connector Type :
    MTP® Female, Male; MPO Female, Male
    Fiber Count :
     24 Core, (8, 12, 16, 36, 48, 72, 96, 144 also available.)
    Fiber Type:
    OS2, OM2, OM3, OM4, OM5
    Insertion Loss:
    Standard
    ≤0.70dB (0.45dB Typ.)
    ≤0.60dB (0.40dB Typ.)
    Elite
    ≤0.35dB (0.20dB Typ.)
    ≤0.35dB (0.15dB Typ.)
    Return Loss :
    UPC Polish
    ≥50dB
    ≥20dB
    APC Polish
    ≥60dB
    -
    Attenuation :
    1310nm: ≤0.34dB/km
    1550nm: ≤0.20dB/km
    850nm: ≤3.0dB/km
    1300nm: ≤1.0dB/km
    Polarity :
    Type A (Straight),
    Type B (Cross Over),
    Type C (Cross Pair)
    Cable Length :
    1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 30m … 300m or Customized
    Cable Diameter :
    7.0mm
    Cable Jacket Material :
    Low Smoke Zero Halogen (LSZH), Plenum (OFNP)
    Cable Jacket Color :
    Yellow
    OM2: Orange ,
    OM3: Aqua,
    OM4: Magenta ,
    OM5: Lime Green
    Durability :
    ≥100 times
    Tensile Load :
    Long term: 80N, Short term: 160N
    Operating Temperature:
    -20℃ ~ +70℃
    Storage Temperature :
    -40℃ ~ +85℃
