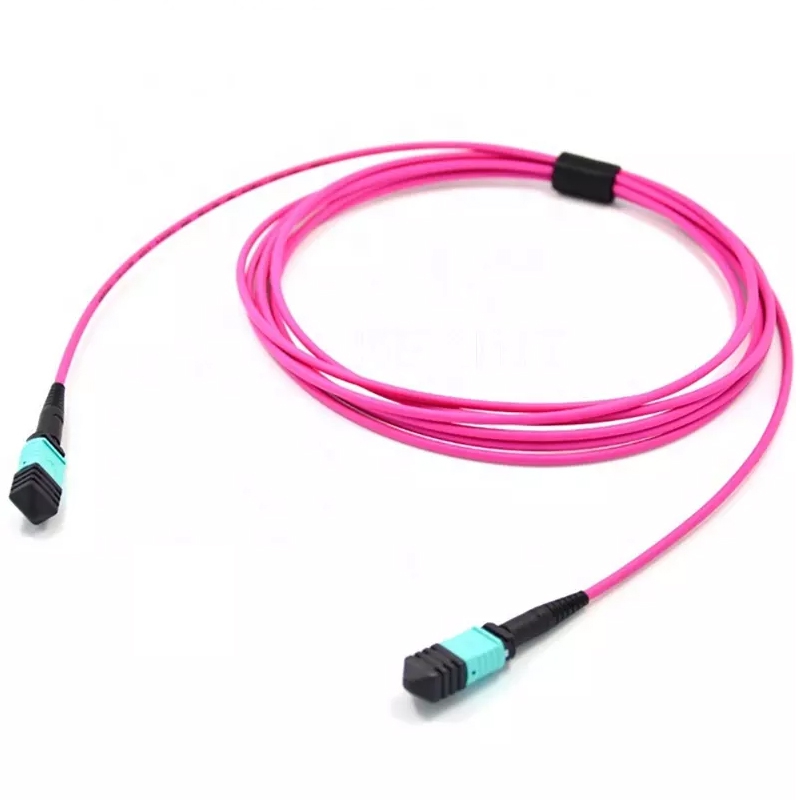

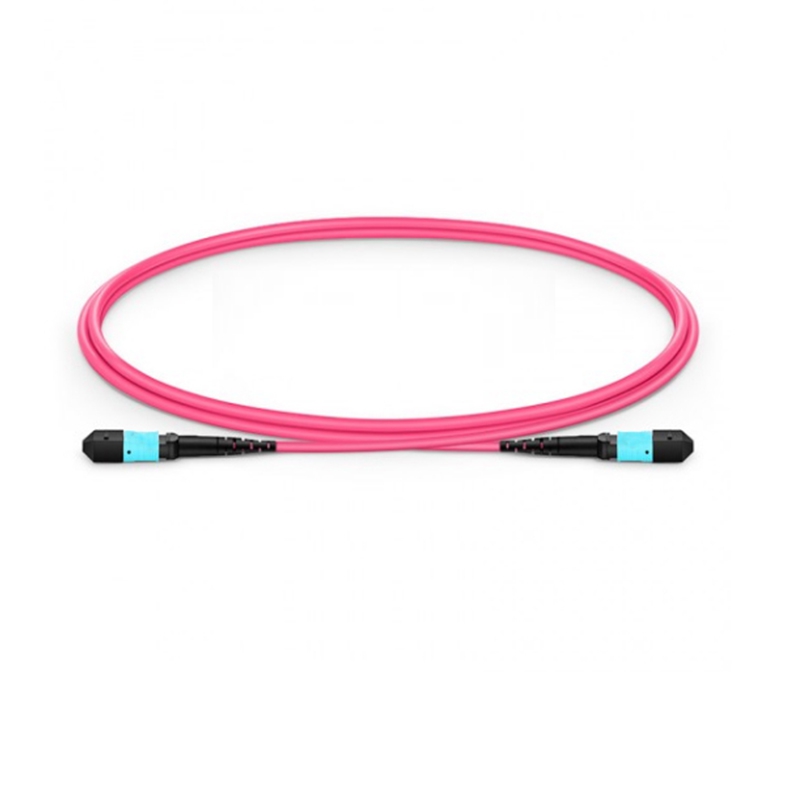

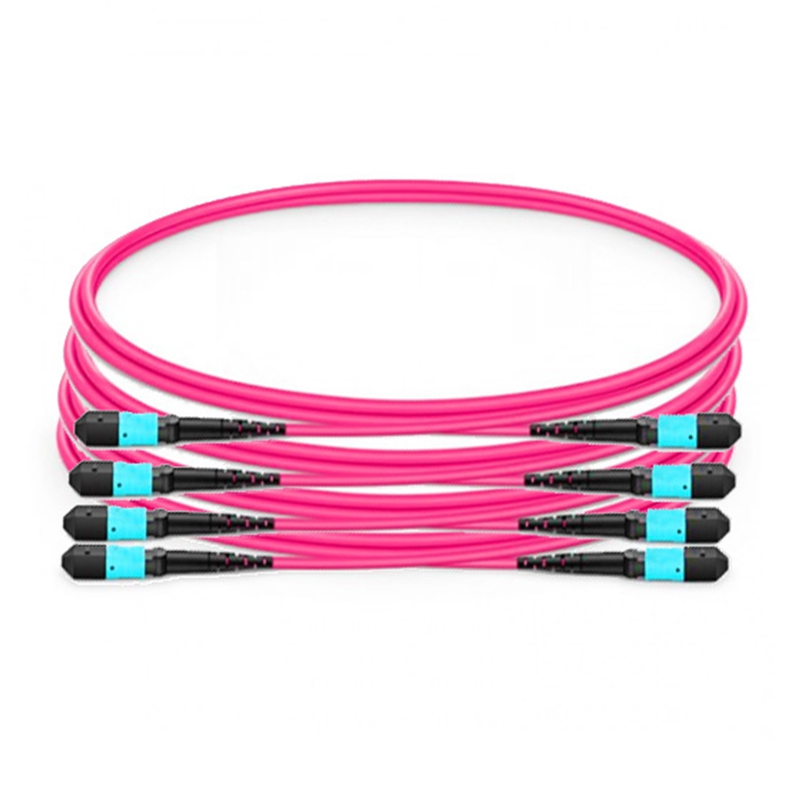

8/12/24 Core OM4 MTP/MPO-MTP/MPO Fiber Patch Cords

  • Description
  • Technical data
  • Make an inquiry

    Description

    MPO/MTP Fiber Optical Patch cords are designed for quick, easy deployment of high-density interconnects and cross-connects in Data Centers and SANs. The efficient plug and play design greatly reduces the initial installation, maintenance and upgrade costs. MPO/MTP patch cords with high quality, low insertion loss and high return loss can fully meet the requirements of high-speed network demanding.

    Application

    1.Data communication network.

    2.Optical System Access network.

    3.Storage area networking fiber channel.

    4.High density architectures

    Features

    1.100% pre-terminated and tested in factory to ensure transfer performance.

    2.Rapid configuration and networking, reduce installation time.

    3.Supports 40G and 100G network applications.

    4.Cable Jacket material: LSZH, OFNR, OFNP available.

    5.Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.

    Fiber Identification and Polarization Classification (MPO/MTP-MPO/MTP)

    (1) Polarization A: Straight connection



    (2) Polarization B: Cross connection


     (3) Polarization C: Pair cross connection


    Specification
    Technique Parameter :
    Singlemode
    Multimode
    Connector Type :
    MTP® Female, Male; MPO Female, Male
    Fiber Count :
    8, 12, 16, 24, 36, 48, 72, 96, 144
    Fiber Type:
    OS2,OM2, OM3, OM4, OM5
    Insertion Loss:
    Standard
    ≤0.70dB (0.45dB Typ.)
    ≤0.60dB (0.40dB Typ.)
    Elite
    ≤0.35dB (0.20dB Typ.)
    ≤0.35dB (0.15dB Typ.)
    Return Loss :
    UPC Polish
    ≥50dB
    ≥20dB
    APC Polish
    ≥60dB
    -
    Attenuation :
    1310nm: ≤0.34dB/km
    1550nm: ≤0.20dB/km
    850nm: ≤3.0dB/km
    1300nm: ≤1.0dB/km
    Polarity :
    Type A (Straight),
    Type B (Cross Over),
    Type C (Cross Pair)
    Cable Length :
    1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 30m … 300m or Customized
    Cable Diameter :
    3.0mm
    Cable Jacket Material :
    Low Smoke Zero Halogen (LSZH), Plenum (OFNP)
    Cable Jacket Color :
    Yellow
    OM2: Orange ,
    OM3: Aqua,
    OM4: Magenta ,
    OM5: Lime Green
    Durability :
    ≥100 times
    Tensile Load :
    Long term: 80N, Short term: 160N
    Operating Temperature:
    -20℃ ~ +70℃
    Storage Temperature :
    -40℃ ~ +85℃
