Description
MPO/MTP Fiber Optical Patch cords are designed for quick, easy deployment of high-density interconnects and cross-connects in Data Centers and SANs. The efficient plug and play design greatly reduces the initial installation, maintenance and upgrade costs. MPO/MTP patch cords with high quality, low insertion loss and high return loss can fully meet the requirements of high-speed network demanding.
Application
1.Data communication network.
2.Optical System Access network.
3.Storage area networking fiber channel.
4.High density architectures
Features
1.100% pre-terminated and tested in factory to ensure transfer performance.
2.Rapid configuration and networking, reduce installation time.
3.Supports 40G and 100G network applications.
4.Cable Jacket material: LSZH, OFNR, OFNP available.
5.Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.
Fiber Identification and Polarization Classification (MPO/MTP-MPO/MTP)

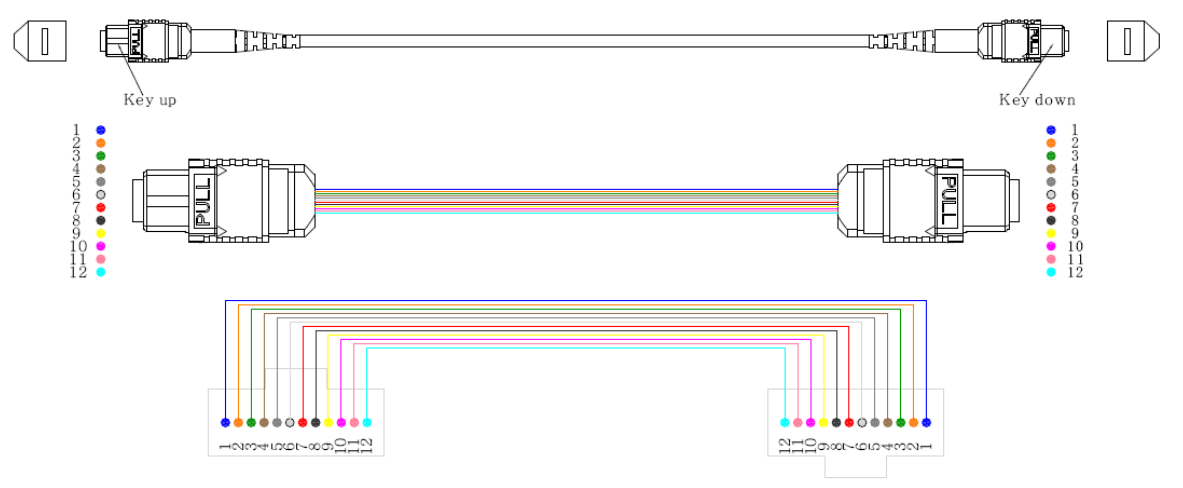

(1) Polarization A: Straight connection

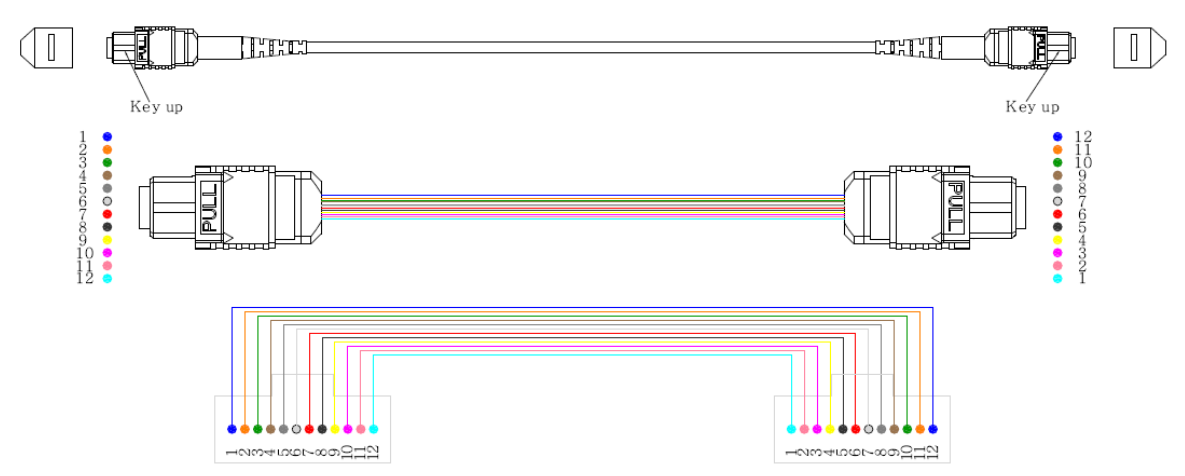

(2) Polarization B: Cross connection

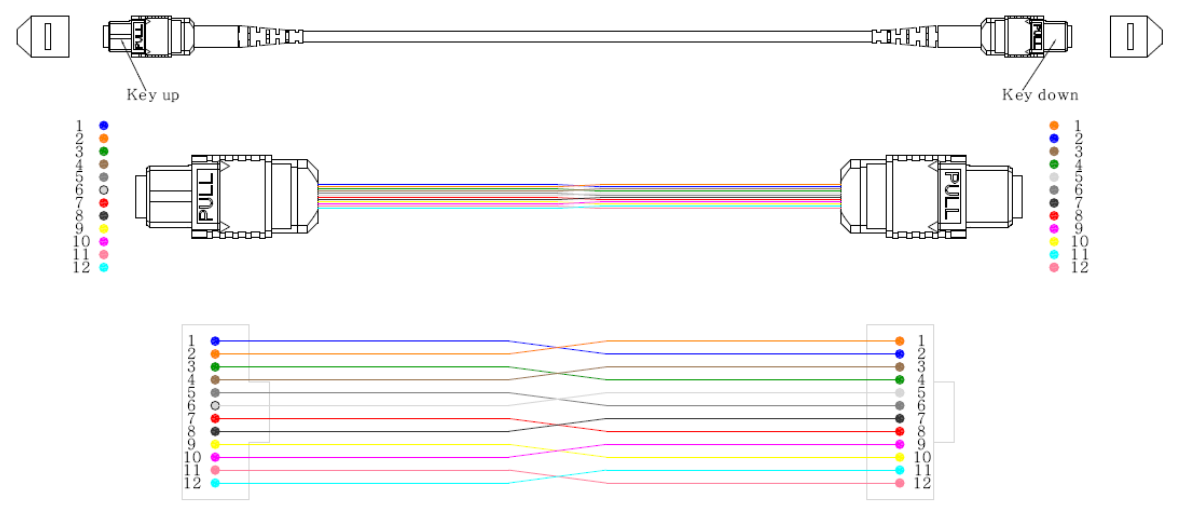

(3) Polarization C: Pair cross connection
