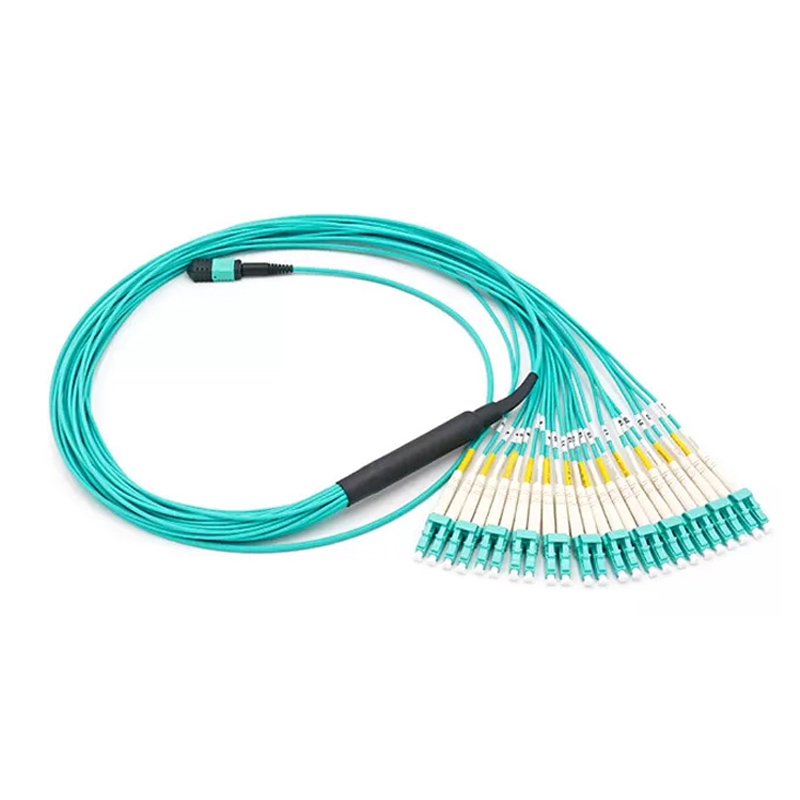

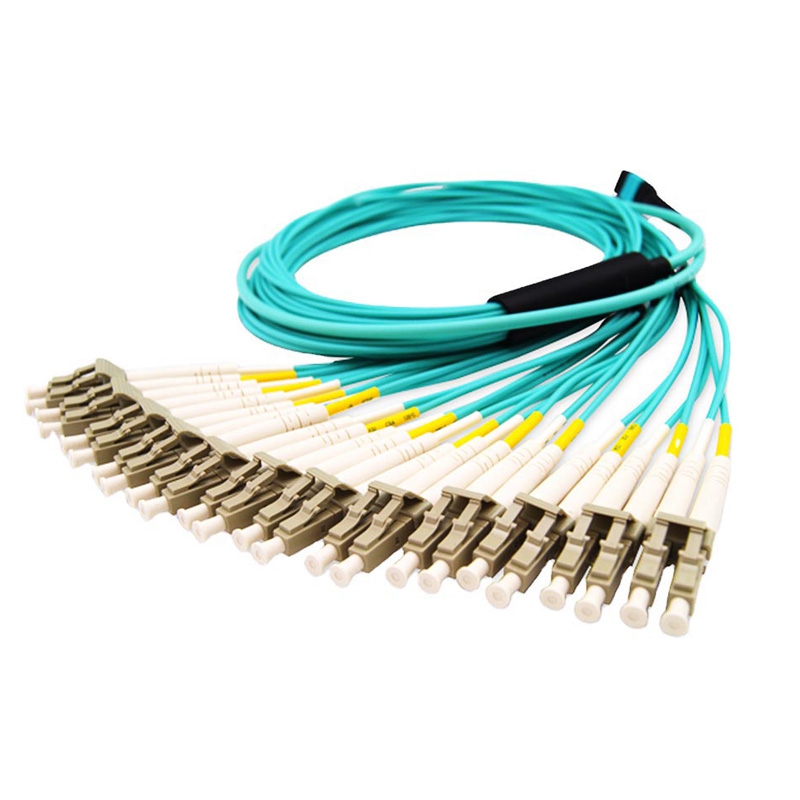

MTP/MPO-24 * LC Multimode OM3-300 Fiber Optical Break-Out Cable

  • Description
  • Technical data
  • Make an inquiry
    Description
    The MPO to LC 24 Fiber OM3 50/125 Breakout Cable is designed to help datacenters and telecommunications rooms optimize connection density in limitedspace while keeping pace with evolving fiber optic technology. With its push/pulltab MPO connector and the universally acclaimed performance quality of LCconnectors, this cable provides a sigh of relief for network administrators.
    This breakout cable accommodates 24 fibers in a single connector, allowing forhigh-density connections. On the opposite end, it fans out to 24 LC connectorsfollowing a rollover "Type B" polarity.
    Commonly used in aggregating 10x10GBASE SFP+ to 1 x100GBASE-SR4 rates, theMPO connectors in this breakout cable can support up to three individual 40G(40GBASE-SR4) links when connected to properly configured transceivers. it alsoenables the consolidation of individualized fiber strands to a centralized locationwithout the need for conversion modules like fiber cassettes.
    With this MPO to LC OM3 50/125 Breakout Cable, data can be transmitted over a50/125 micron 1Gbps fiber link up to 1000 meters at 850nm or up to 550 meters at1300nm.On a 10Gbps link, data can be transfered up to 300 meter at 850nm.
    Each MPO to LC 24 Fiber OM3 50/125 Breakout Cable is assembled to meet andexceed industry performance standards. They undergo comprehensive testing.ensuring the highest possible quality. The MTp@ connector is available uponrequest. Each breakout cable can be customized with pinned (male) or non-pinned(female) connectors in any combination for networking compatibility. Cablelengths are available upon request. The cables are constructed with ruggedizedcomponents to ensure reliable performance in diverse environments.
    Features
    ● Hi-density MPO 24-fiber connectors for reduced cablingMPO connector fans out to 24 LC connectors
    ● Push/Pull tab connectors offer maximum accessibility in high densityinstallations; install / remove with one hand
    ● OM3 rated 50/125 Multimode
    ● Aqua jacket allows fast, easy identification in a crowded switch or patchpanel
    ● Supports to 1000GbE speeds
    ● Factory-terminated provide consistent quality, high performance and reduceinstallation time
    ● Low lL and stable signal transmission ensuring your network safetyHigh-quality MPO connectors and guaranteed by 3D interferometerOptimized
    ● performance-available in elite MTP and discrete premiumconnector
    ● Custom configurations available
    Applications
    ● Optical switching interframe connections
    ● High-density fiber card edge access
    ● Data Center Cabling
      Specification
    Overview
    Fiber type:
    Multimode
    Optical Mode:
    OM3
    Connection
    Side A - Connector 1:
    24-Strand MTP/MPO (Female)
    Side B - Connector 2:
    24 × LC (Male) or 12 × Duplex LC
    Endface Polish:
    UPC
    Polarity:
    Fault: Type B (cross), Type A and C optional.
    Physical
    Cable Jacket Color:
    Aqua
    Connector Color:
    White
    Cable Jacket Material:
    LSZH, OFNP
    Clad Diameter (microns):
    125
    Core Diameter (microns):
    50
    Number of Fibers:
    24
    Cable Length (m):
    1~100m
    Branch Cable Length:
    50cm, other length can be customized.
    Branch Cable Diameter:
    2.0mm
    Pulling eye:
    If need, yes.
    Minimum Bend Radius:
    20 mm (Dynamic); 10 mm (Static)
    Network Compatibility:
    10G,40G,100G
    Attenuation @850nm:
    3.0 dB/km
    Attenuation @1300nm:
    0.6 dB/km
    MTP/MPO Connector:
    Insertion Loss  :
    Standard
    Elite
    Typical≤ 0.50dB,           Max≤ 0.25dB
    Typical≤ 0.15dB,          Max≤ 0.35dB
    LC Connector:
    Insertion Loss  :
    Typical value≤0.15dB;   Maximum≤0.30
    Return loss
    ≥ 30dB (PC);
    Operating Temperature Range:
    -4° to 140°F (-20° to 60°C)
    Storage Temperature Range:
    -4° to 140°F (-20° to 60°C)
    Operating Humidity Range:
    5% to 85% RH, Non-Condensing
    Storage Humidity Range:
    35% to 65% RH, Non-Condensing
