MTP/MPO-8 * LC Multimode OM3-300 Fiber Optical Break-Out Cable

  • Description
  • Technical data
  • Make an inquiry
    Description

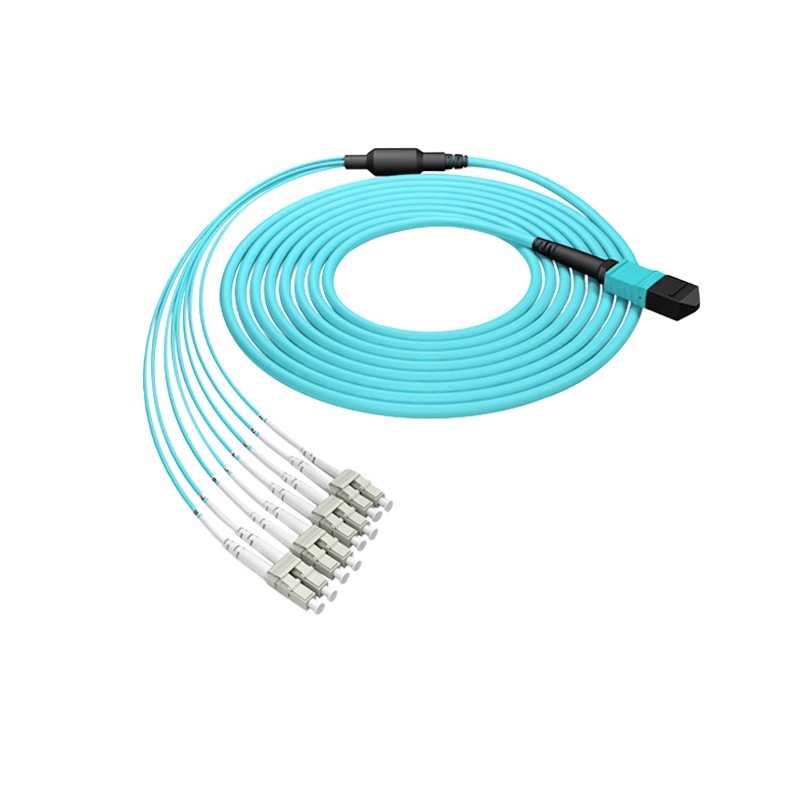

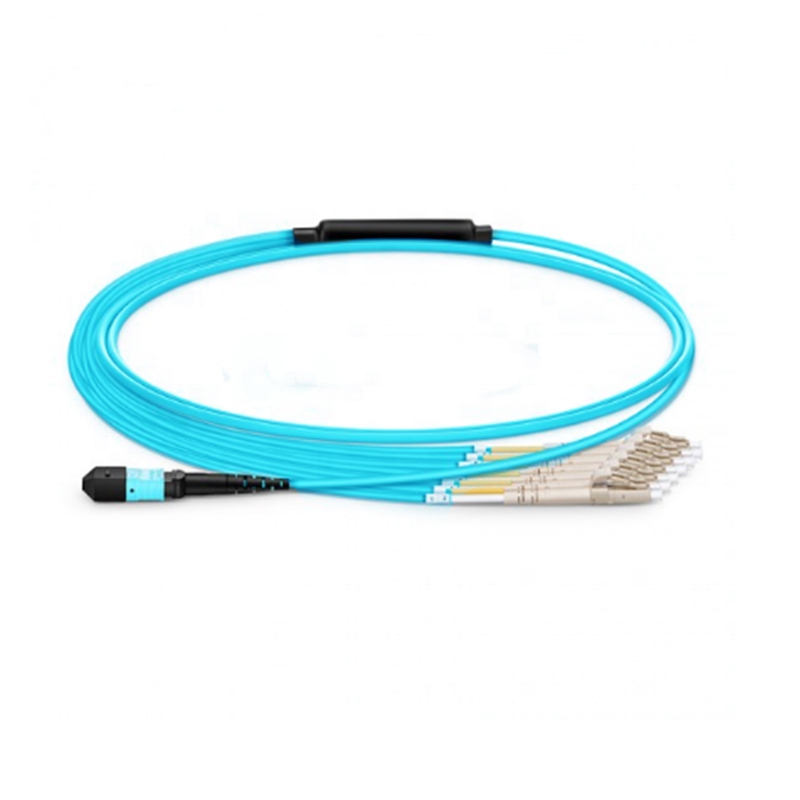

    The MPO to LC 12 Fiber 50/125 Multimode OM3 Breakout Cable is a factory pre-terminated cable that provides consistent quality, fast installation, and simplifiedcable management. lt features one MPO female connector and 6x LC UPc duplexfiber connectors. The connectors utilize UPC polish for improved surface finishand reduced back reflection.
    These breakout cables are ideal for direct connections between transceivers orpatch panels with LC ports and MPO backbone/trunks. They offer the advantageof running a single MPO trunk assembly from multiple SFP+ transceivers,minimizing insertion loss caused by multiple connectors. They also aid in themigration from 10G to 40G transmission rates, such as with a QSFP+ to 4x SFP+solution.
    The MTP@ connector is available upon request. Each MPO to LC Breakout Cablecan be customized with pinned (male) or non-pinned (female) connectors in anycombination to ensure networking compatibility. Cable lengths are available uponrequest. Each breakout cable undergoes comprehensive testing and isconstructed with ruggedized components for reliable
    Features
    ● Laser-Optimized multimode 50/125 0M3 fiberMPO female to 6 x LC duplex harness cable
    ● Direct connect between transceivers and MPO (MTP) trunks
    ● ldeal for high-density applications
    ● Factory-terminated provide consistent quality, high performance andreduce installation time
    ● 100% tested for low insertion loss performance and high return loss
    ● Optimized performance-available in elite MTP and discrete premiumconnector
    ● Custom configurations available
    Applications
    ● Optical switching interframe connections
    ● High-density fiber card edge access
    ● 40G and 10G interconnect
    ● Data Center Cabling
      Specification
    Overview
    Fiber type:
    Multimode
    Optical Mode:
    OM3
    Connection
    Side A - Connector 1:
    8-Strand MTP/MPO (Female)
    Side B - Connector 2:
    8 × LC (Male) or 4 × Duplex LC
    Endface Polish:
    UPC
    Polarity:
    Fault: Type B (cross), Type A and C optional.
    Physical
    Cable Jacket Color:
    Aqua
    Connector Color:
    White
    Cable Jacket Material:
    LSZH, OFNP
    Clad Diameter (microns):
    125
    Core Diameter (microns):
    50
    Number of Fibers:
    8
    Cable Length (m):
    1~100m
    Branch Cable Length:
    50cm, other length can be customized.
    Branch Cable Diameter:
    2.0mm
    Pulling eye:
    If need, yes.
    Minimum Bend Radius:
    20 mm (Dynamic); 10 mm (Static)
    Network Compatibility:
    10G,40G,100G
    Attenuation @1310nm:
    3.0 dB/km
    Attenuation @1550nm:
    0.6 dB/km
    MTP/MPO Connector:
    Insertion Loss  :
    Standard
    Elite
    Typical≤ 0.50dB,           Max≤ 0.25dB
    Typical≤ 0.15dB,          Max≤ 0.35dB
    LC Connector:
    Insertion Loss  :
    Typical value≤0.15dB;   Maximum≤0.30
    Return loss
    ≥ 30dB (PC);
    Operating Temperature Range:
    -4° to 140°F (-20° to 60°C)
    Storage Temperature Range:
    -4° to 140°F (-20° to 60°C)
    Operating Humidity Range:
    5% to 85% RH, Non-Condensing
    Storage Humidity Range:
    35% to 65% RH, Non-Condensing
    If you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
