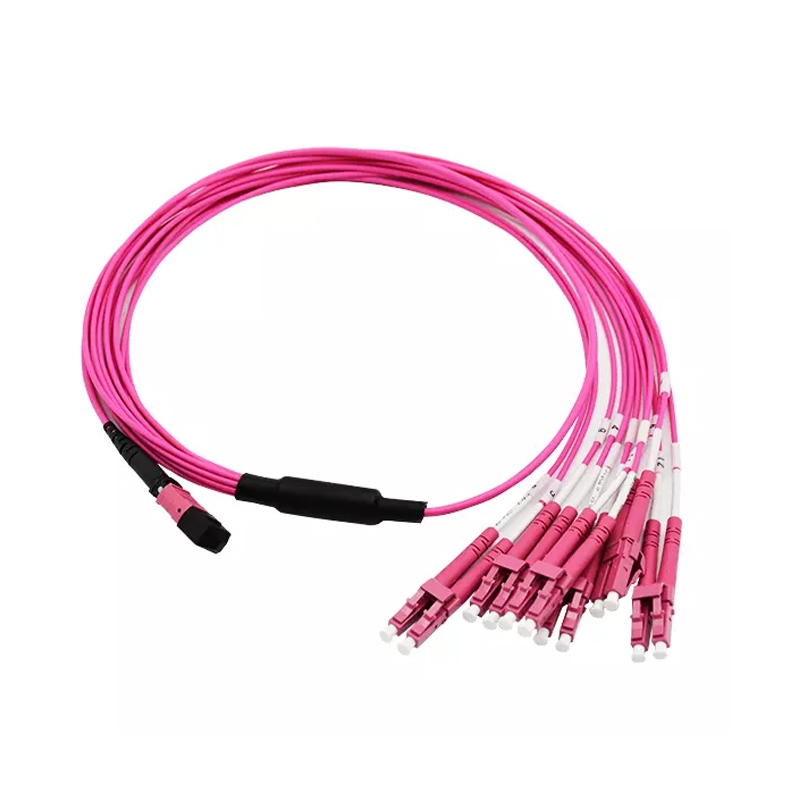

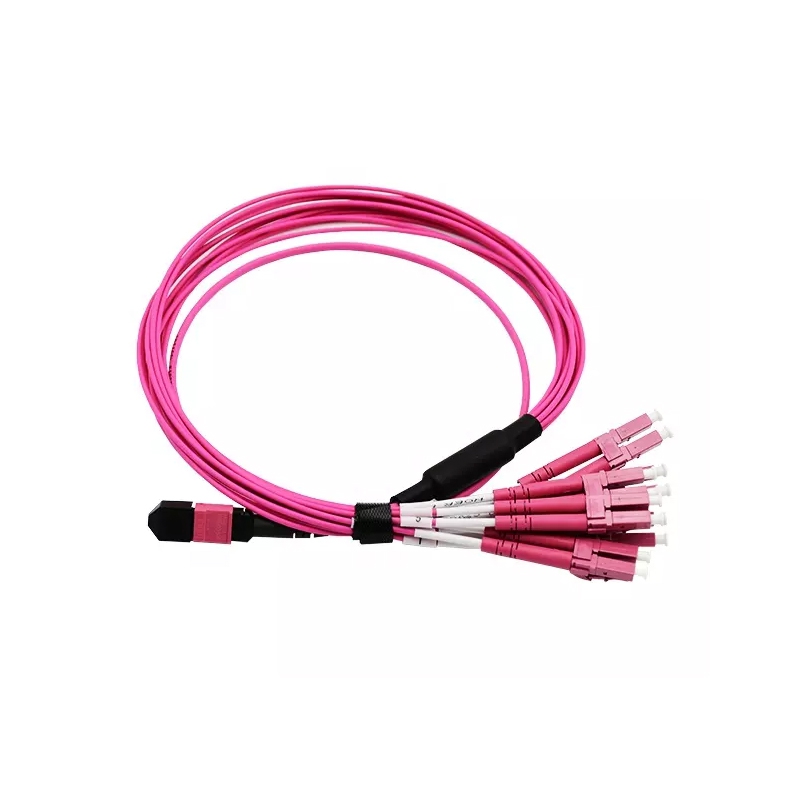

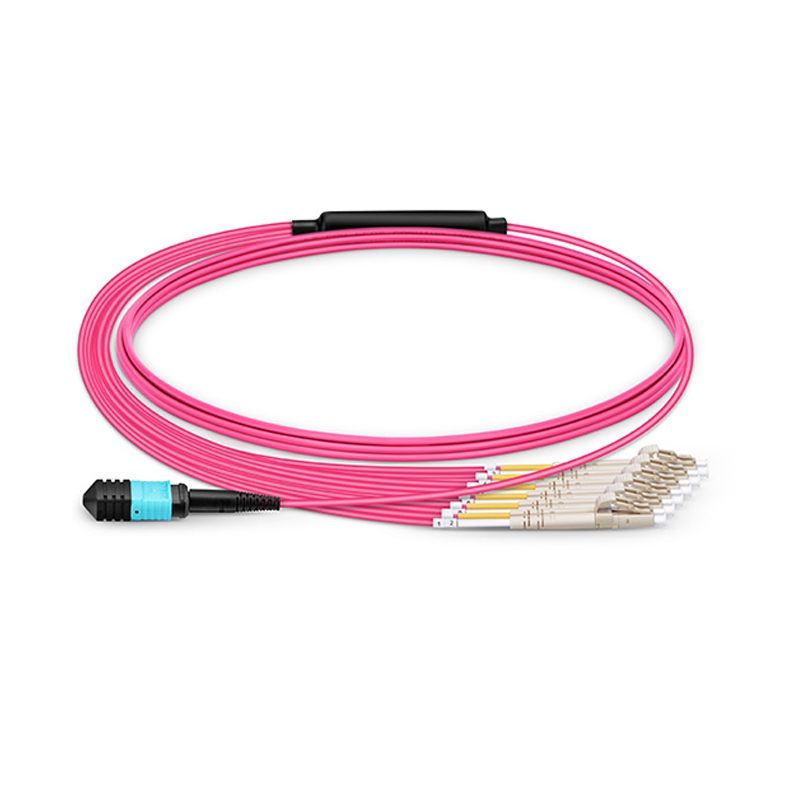

MTP/MPO-12 * LC Multimode OM4 Fiber Optical Break-Out Cable

  • Description
  • Technical data
  • Make an inquiry
    Decsripton
     MTP to 12 x LC-Duplex OM4 Multimode Fiber-Optic Cable, the ideal solution for high-speed data transmission and network connectivity. This premium-grade patch cord is meticulously designed to ensure seamless and efficient performance in a wide range of networking environments. The cable features MTP connector on one end and four LC-Duplex connector on the other end, providing a reliable and secure connection for your networking needs. Built with OM4 multimode fiber, this cable is optimized for high-bandwidth applications, ensuring efficient data transfer and low signal loss. The cable is constructed with durability in mind, offering a robust outer jacket that protects against environmental factors and physical stress. Available in a range of lengths from 0.5 meters to 100 meters, you can choose the perfect cable length to suit your specific networking setup. Whether you’re establishing connections within data centers, corporate networks, or any other high-demand networking environments,
    MTP to 12 x LC-Duplex OM4 Multimode Fiber-Optic Cable  ensures reliable and efficient data transmission. Choose the perfect cable length for your requirements and experience enhanced connectivity with this exceptional fiber-optic solution.
    Feature
    ● Duplex SN connector optimized for the latest 400 Gb OSFP/QSFP-DD transceivers
    ● Space-saving SN plug is 4x smaller than duplex LC for easier cable management
    ● Switchable SN connectors allow polarity conversion without tools or re-termination
    ● Backward compatible with 40/100 Gb networks to facilitate future-proofing
    ● Magenta LSZH jacket allows fast, easy identification in a crowded switch or patch panel
    Application
    ● Optical switching interframe connections
    ● High-density fiber card edge access
    ● 40G,100G, 200G interconnect
    ● Data Center Cabling
      Specification
    Overview
    Fiber type:
    Multimode
    Optical Mode:
    OM4
    Connection
    Side A - Connector 1:
    12-Strand MTP/MPO (Female)
    Side B - Connector 2:
    12 × LC (Male) or 6 × Duplex LC
    Endface Polish:
    UPC
    Polarity:
    Fault: Type B (cross), Type A and C optional.
    Physical
    Cable Jacket Color:
    Manenta
    Connector Color:
    White, Aqua, Black
    Cable Jacket Material:
    LSZH, OFNP
    Clad Diameter (microns):
    125
    Core Diameter (microns):
    50
    Number of Fibers:
    12
    Cable Length (m):
    1~100m
    Branch Cable Length:
    50cm, other length can be customized.
    Branch Cable Diameter:
    2.0mm
    Pulling eye:
    If need, yes.
    Minimum Bend Radius:
    20 mm (Dynamic); 10 mm (Static)
    Network Compatibility:
    10G,40G,100G
    Attenuation @850nm:
    3.0 dB/km
    Attenuation @1300nm:
    0.6 dB/km
    MTP/MPO Connector:
    Insertion Loss  :
    Standard
    Elite
    Typical≤ 0.50dB,           Max≤ 0.25dB
    Typical≤ 0.15dB,          Max≤ 0.35dB
    LC Connector:
    Insertion Loss  :
    Typical value≤0.15dB;   Maximum≤0.30
    Return loss
    ≥ 30dB (PC);
    Operating Temperature Range:
    -4° to 140°F (-20° to 60°C)
    Storage Temperature Range:
    -4° to 140°F (-20° to 60°C)
    Operating Humidity Range:
    5% to 85% RH, Non-Condensing
    Storage Humidity Range:
    35% to 65% RH, Non-Condensing
