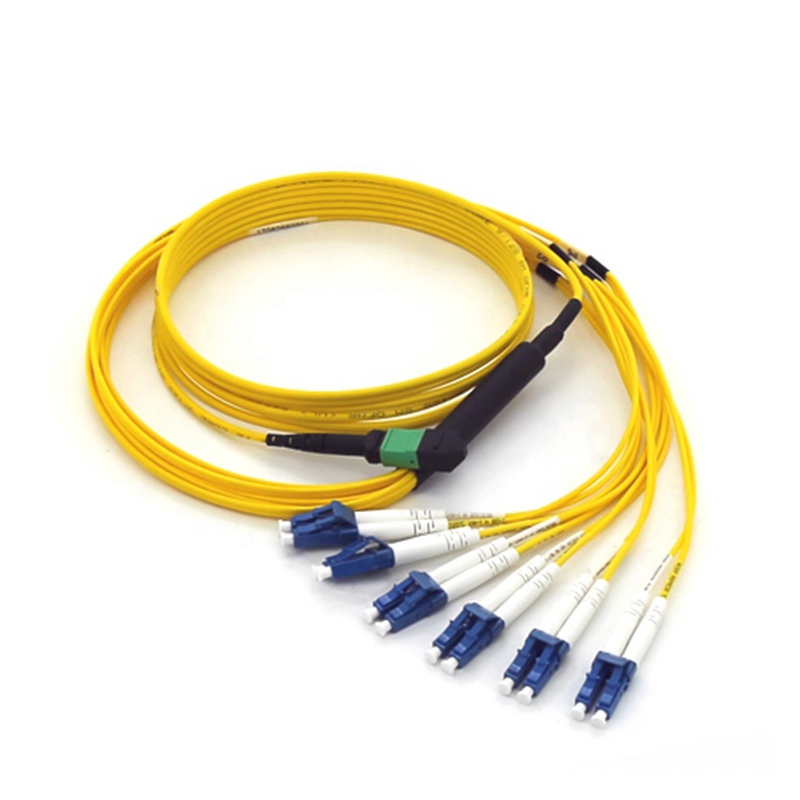

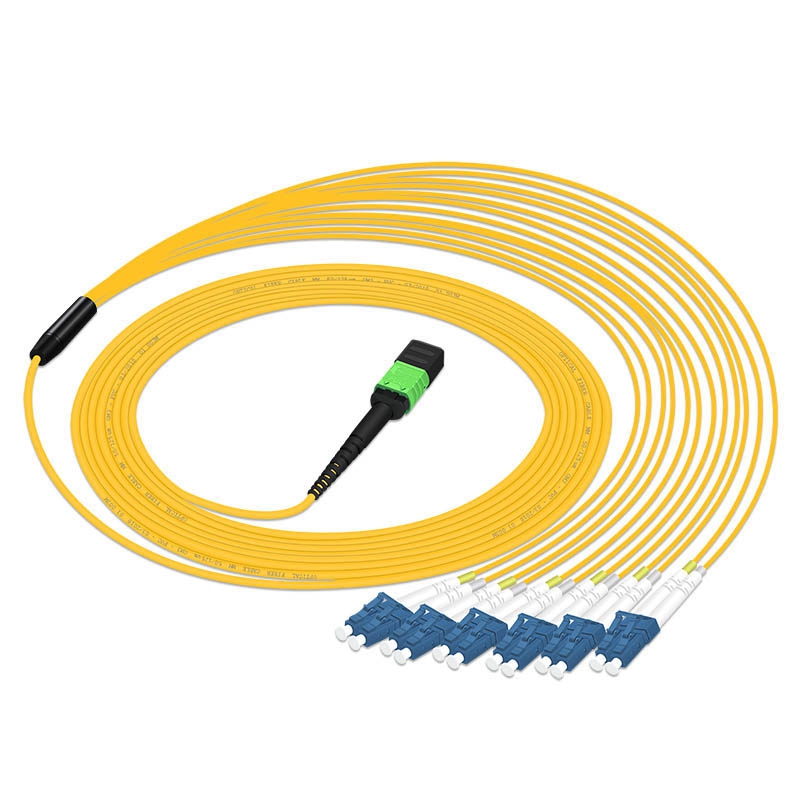

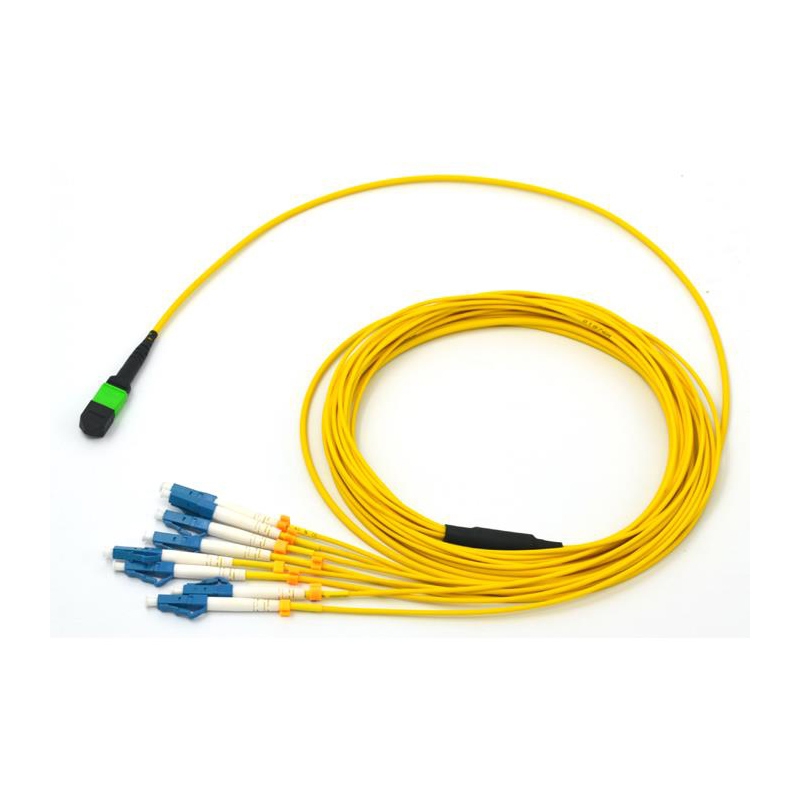

MTP/MPO-12 * LC Singlemode Fiber Optical Break-Out Cable

  • Description
  • Technical data
  • Make an inquiry

    Description
    MPO/MTP harnesses cables are usually divided into three types of MTP-MTP connector, MTP-Common connector and MTP-Secure Keyed LC connector, according to different colors divided into SM, MM and 10G MM. The fiber cores range from 8 to 144 Cpre.With this MTP/MPO fiber breakout cable, you are ready for deployment in any singlemode 9/125 MTP/MPO or standard fiber network. Singlemode 9/125 cables are best used for long cable runs and the push-on connectors hold them securely in place. This singlemode, MTP/MPO fiber breakout cable is comprised of one MTP/MPO connector on one end and 12 simplex or 6 duplex fiber connectors on the other end. The connectors utilize a UPC (Ultra Physical Contact) polish which provides a better surface finish with less back reflection. These breakout cables are perfect for when you have limited space and want to convert your standard fiber network to a high density MTP/MPO network but still want that great fiber connection. It has a yellow, riser rated, PVC jacket.
    Features
    ● 8, 12, 24, 36, 48, 72, 96, and 144 count fiber cable
    ● Attached pulling-eye to fit each particular environment
    ● Color coded housings available to differentiate fiber type, polish type, and connector grade
    ● Designed for low loss and standard loss SM applications
    ● Factory terminated and 100% optically tested
    ● High precision guide pins
    ● High-density
    ● Installer-friendly to save time and labor costs
    ● MTP®/MPO fanout cables available in 12 & 24 fiber MTP®/MPO connectors
    ● Optimal network performance
    ● Patented elliptical guide pin tip to minimize ferrule debris
    ● Quality components
    Application
    ● Data communication network.
    ● Optical System Access network.
    ● Storage area networking fiber channel.
    ● High density architectures
      Specification
    Overview
    Fiber type:
    Singlemode
    Optical Mode:
    OS2
    Connection
    Side A - Connector 1:
    12-Strand MTP/MPO (Female)
    Side B - Connector 2:
    12 × LC (Male) or 6 × Duplex LC
    Endface Polish:
    APC; UPC
    Polarity:
    Fault: Type B (cross), Type A and C optional.
    Physical
    Cable Jacket Color:
    Yellow
    Connector Color:
    Blue; Green; Black
    Cable Jacket Material:
    LSZH, OFNP
    Clad Diameter (microns):
    125
    Core Diameter (microns):
    9
    Number of Fibers:
    12
    Cable Length (m):
    1~100m
    Branch Cable Length:
    50cm, other length can be customized.
    Branch Cable Diameter:
    2.0mm
    Pulling eye:
    If need, yes.
    Minimum Bend Radius:
    20 mm (Dynamic); 10 mm (Static)
    Network Compatibility:
    10G,40G,100G
    Attenuation @1310nm:
    0.36 dB/km
    Attenuation @1550nm:
    0.22 dB/km
    MTP/MPO Connector:
    Insertion Loss  :
    Standard
    Elite
    Typical≤ 0.30dB,           Max≤ 0.75dB
    Typical≤ 0.15dB,          Max≤ 0.35dB
    LC Connector:
    Insertion Loss  :
    Typical value≤0.15dB;   Maximum≤0.30
    Return loss
    ≥ 60dB (APC);                ≥ 50dB (UPC)
    Operating Temperature Range:
    -4° to 140°F (-20° to 60°C)
    Storage Temperature Range:
    -4° to 140°F (-20° to 60°C)
    Operating Humidity Range:
    5% to 85% RH, Non-Condensing
    Storage Humidity Range:
    35% to 65% RH, Non-Condensing
