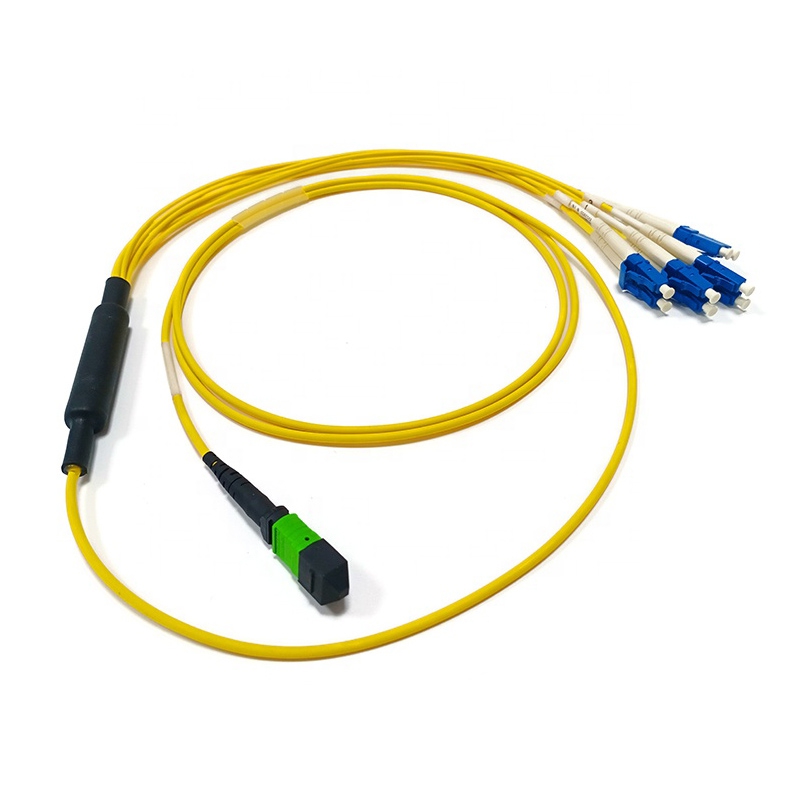

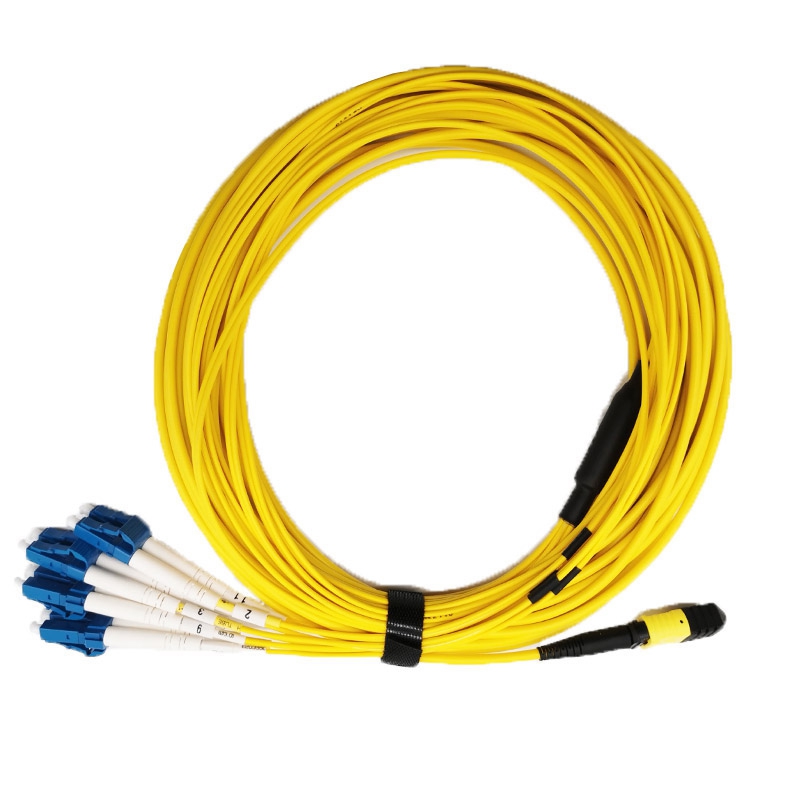

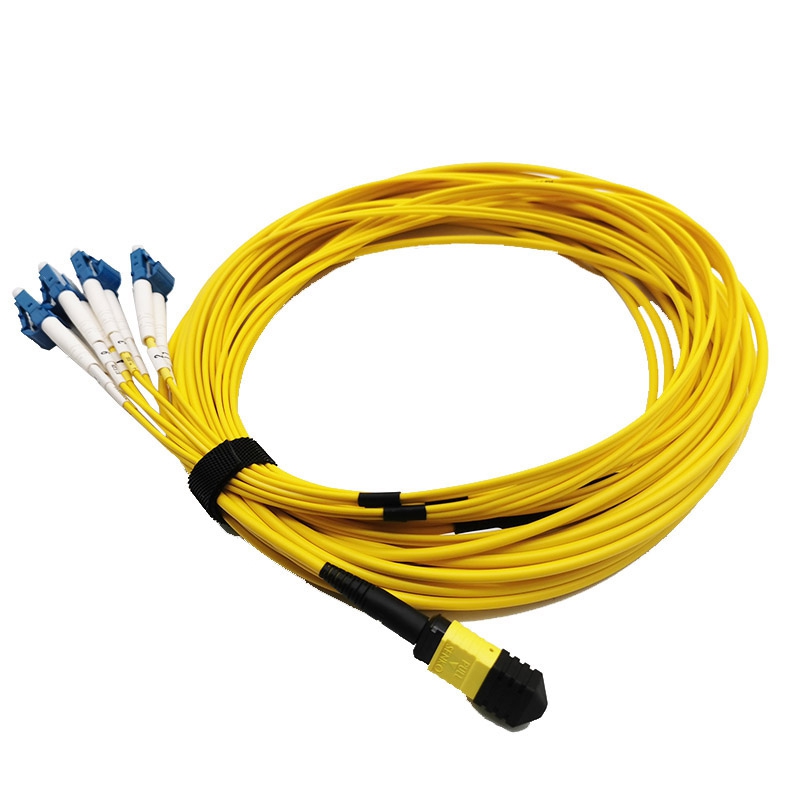

MTP/MPO-8 * LC Singlemode Fiber Optical Break-Out Cable

  • Description
  • Technical data
  • Make an inquiry
    Description
    MPO to 4 duplex LC breakout cable fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ optical transceiver module to four×10Gbps LC SFP+ optical transceiver modules, while 12 fiber type is used in 10G networks. The MPO to Lc breakout cable is also an economical solution for a smaller network environment in which you don‘t need complicated equipment, because the MPO cable allows redistribution of various fibers into one round cable for short distance transmission, it offers 8, 12, 24 and up to 144fibers for these applications. To protect the cable in the harsh environment, Armored cable is available.
    Features
    ● 8, 12, 24, 36, 48, 72, 96, and 144 count fiber cable
    ● Attached pulling-eye to fit each particular environment
    ● Color coded housings available to differentiate fiber type, polish type, and connector grade
    ● Designed for low loss and standard loss SM applications
    ● Factory terminated and 100% optically tested
    ● High precision guide pins
    ● High-density
    ● Installer-friendly to save time and labor costs
    ● MTP®/MPO fanout cables available in 12 & 24 fiber MTP®/MPO connectors
    ● Optimal network performance
    ● Patented elliptical guide pin tip to minimize ferrule debris
    ● Quality components
    Application
    ● Data communication network.
    ● Optical System Access network.
    ● Storage area networking fiber channel.
    ● High density architectures
      Specification
    Overview
    Fiber type:
    Singlemode
    Optical Mode:
    OS2
    Connection
    Side A - Connector 1:
    8-Strand MTP/MPO (Female)
    Side B - Connector 2:
    8 × LC (Male) or 4 × Duplex LC
    Endface Polish:
    APC; UPC
    Polarity:
    Fault: Type B (cross), Type A and C optional.
    Physical
    Cable Jacket Color:
    Yellow
    Connector Color:
    Blue; Green; Black
    Cable Jacket Material:
    LSZH, OFNP
    Clad Diameter (microns):
    125
    Core Diameter (microns):
    9
    Number of Fibers:
    8
    Cable Length (m):
    1~100m
    Branch Cable Length:
    50cm, other length can be customized.
    Branch Cable Diameter:
    2.0mm
    Pulling eye:
    If need, yes.
    Minimum Bend Radius:
    20 mm (Dynamic); 10 mm (Static)
    Network Compatibility:
    10G,40G,100G
    Attenuation @1310nm:
    0.36 dB/km
    Attenuation @1550nm:
    0.22 dB/km
    MTP/MPO Connector:
    Insertion Loss  :
    Standard
    Elite
    Typical≤ 0.30dB,           Max≤ 0.75dB
    Typical≤ 0.15dB,          Max≤ 0.35dB
    LC Connector:
    Insertion Loss  :
    Typical value≤0.15dB;   Maximum≤0.30
    Return loss
    ≥ 60dB (APC);                ≥ 50dB (UPC)
    Operating Temperature Range:
    -4° to 140°F (-20° to 60°C)
    Storage Temperature Range:
    -4° to 140°F (-20° to 60°C)
    Operating Humidity Range:
    5% to 85% RH, Non-Condensing
    Storage Humidity Range:
    35% to 65% RH, Non-Condensing
