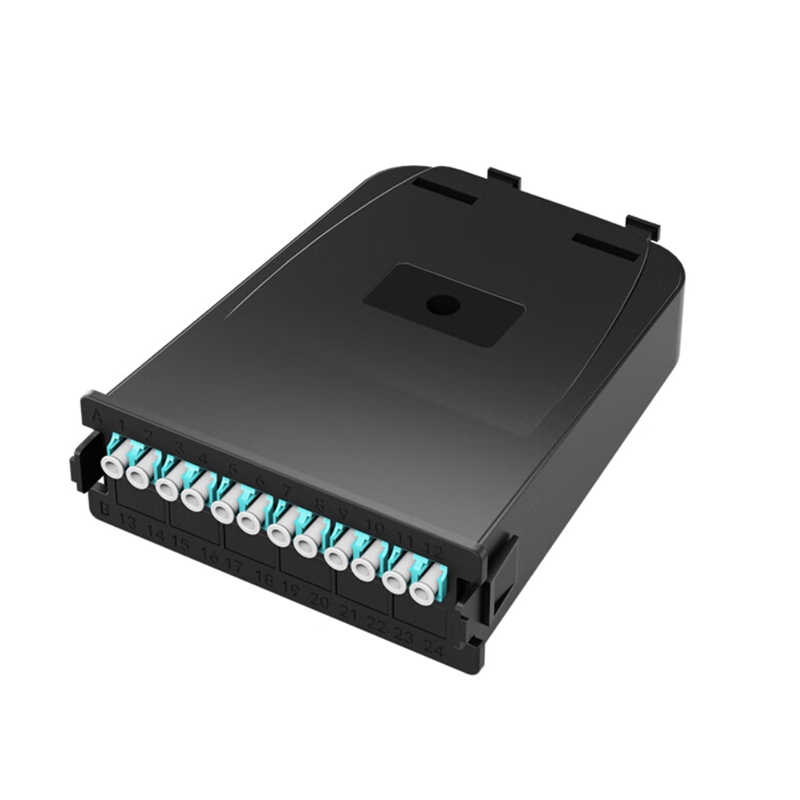

12 Core MPO/MTP To 12* LC Cassette Box Multimode OM3 MPO MTP Modular Cassette

  • Description
  • Technical data
  • Make an inquiry
    Description

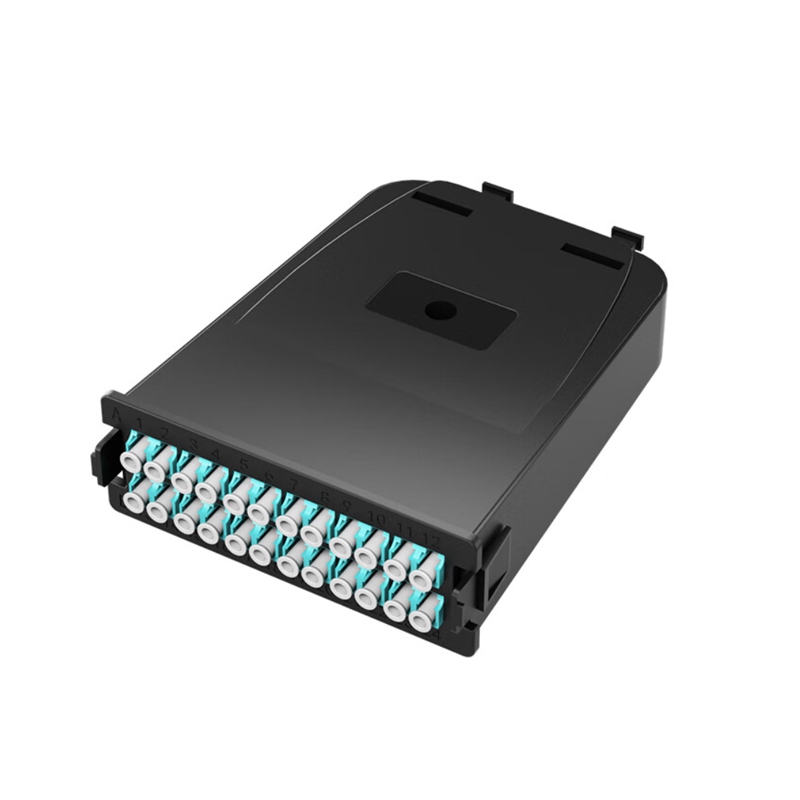

    MTP/MPO-LC fber optic cassette is a closed-type of device with a 12/24-corefber patch cords for branching 12-core MTP / MPO trunk cable to LC Connectors so that the system appliances are easily be connected to the ports orpanels. The cassette can be quickly deployed to 24xLC or 12xLC adapters andcan be easily installed in HDF high-density rack-mounted ODF. The modularstructure is high manageable and flexible. With the future requirements on theconnectivity, the modules can be changed to meet the corresponding needs.In the meanwhile, the existing trunk cabling structure remains unchanged.
    Features
    Excellent transmission performance is 100% factory pre-terminated andtested
    The adoption of universal polarity design ensures the correct fber polarityand the variety of polarity to be chosen in the system
    Flexible expansion, modular design.
    One-hand operation
    Metal shell design, good intensity, effective protection for internal fberbranch parts
    Compliant with TIA/EIA604-D-2007,EC61754-7-2008 series standards.
    Super bend-bright fber, minimum fber bending radius, minimized structure.
    ●Smooth upgrade to next generation data center of 40GbE and 100GbEapplications
    Model Number:  MPO To 12* LC cassette module
    Fiber Type :  OM3 50/125μm
    Fiber count :  12 Fibers
     Front Connector Type :  6* LC Duplex
    Rear Connector Type : 1x MPO-12 Male (Pinned)
    Test Wavelength :   850 nm
    Insertion Loss : MPO≤0.5dB, LC≤0.3dB
    Return Loss : MPO≥20dB, LC≥30dB
    Polarity : Type A
    Durability :  ≥500 times
     MPO Connector : Key up to Key down
    Polish : UPC
    Operating:  -20°C to 70°C
    Storage : -40°C to 85°C
