1-ch MADI Video to Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description

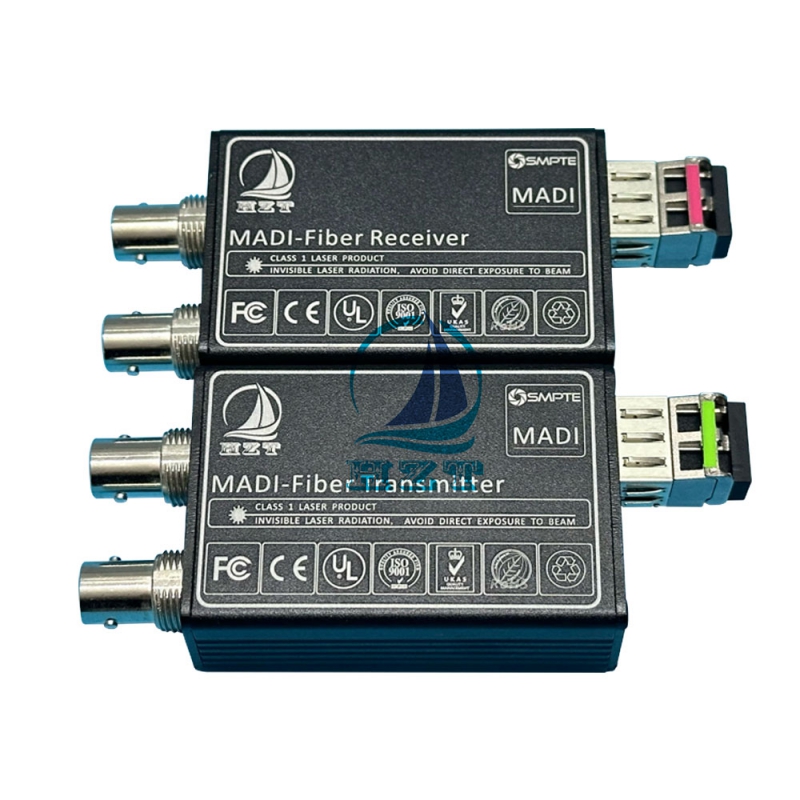

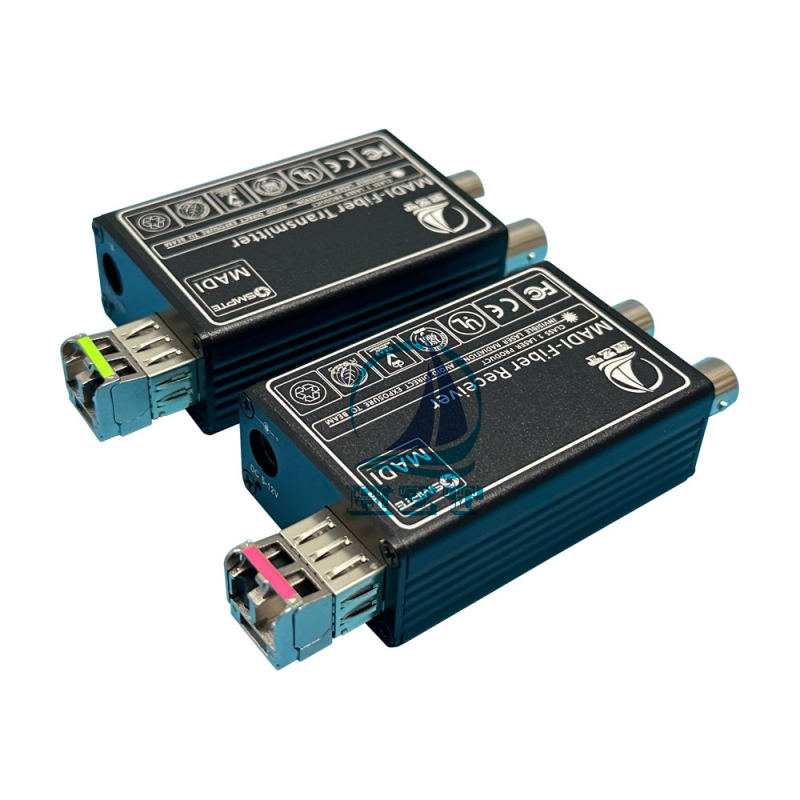

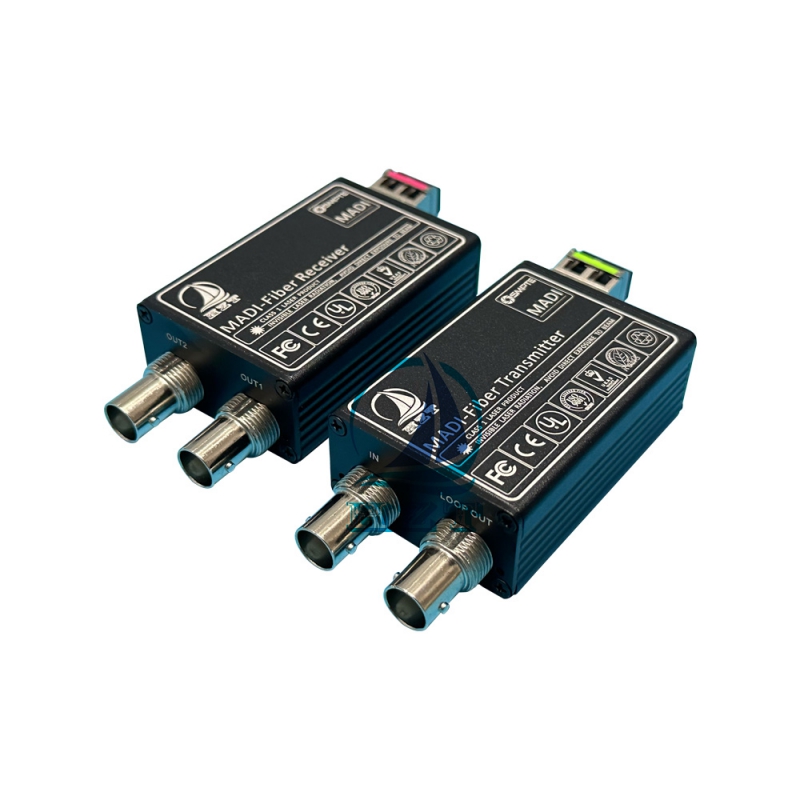

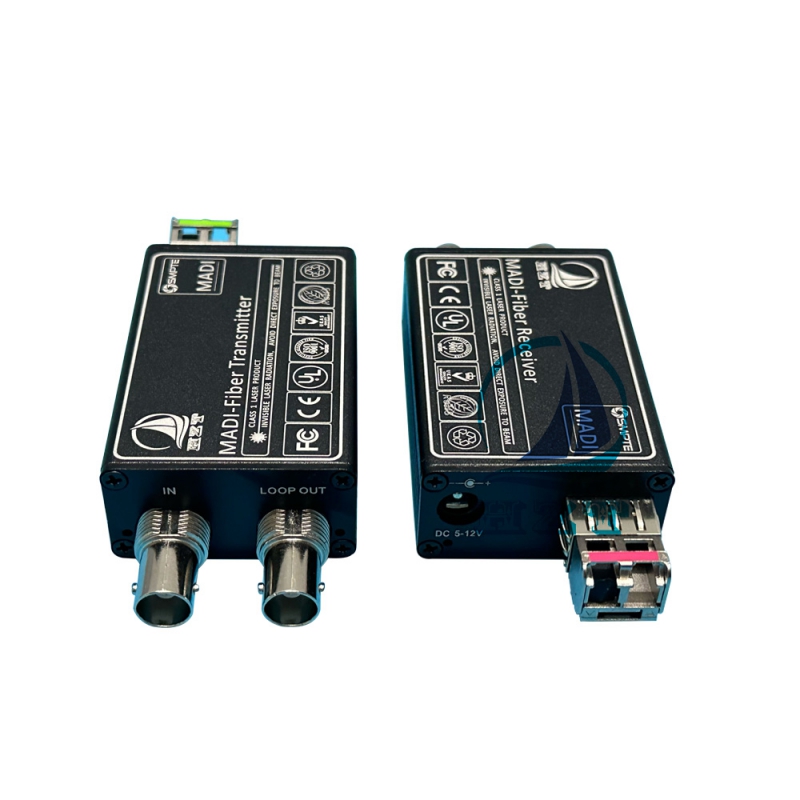

    HZT  Technology MADI Fiber Converter (HZT-MADI-1V-SM001)  including one Transmitter and Receiver. The transmitter allows one MADI Signal input with 1-ch MADI Loop out, and receiver has 2-ch MADI Output.  It enables conversion between MADI (Multichannel Audio Digital Interface) signals and optical fiber transmission. This compact unit supports 64 channels of high-quality digital audio at sampling rates up to 96kHz through standard single-mode or multi-mode fiber connections.

    HZT-MADI-1V-SM001 is a Ideal for broadcast facilities, live sound, and studio installations, the converter extends MADI signal transmission over long distances while maintaining pristine audio quality. The fiber optic interface provides complete electrical isolation and immunity to electromagnetic interference.
    The device operates plug-and-play with all major MADI-compatible equipment and includes comprehensive fault protection mechanisms. Optional network control allows remote monitoring and configuration in large-scale systems.

    Features
    ● 1-ch MADI to Fiber converter
    ● Supports up to 64 channels of audio I/O
    ● Real time conversion with no degradation of signal quality
    ● Single-mode and Multi-mode versions
    ● Up to 10km (6.2 miles) using Single-mode fiber
    ● Single LC fiber connections
    ● Supports hot swapping and hot plugging

    Application
    ● Live Concert Systems‌
    ● Film Production‌
    ● Stadium PA Systems‌
    ● Global Music Production‌
    ● Broadcast Infrastructure‌
    ● Theatrical Sound Design‌

    Technique Parameter

    Fiber Optical
    Wavelength:
    1310nm&1470nm~1610nm
    Output Power:
    -5~0dBm
    Optical fiber:
    Single mode Fiber
    Rx sensitivity:
    -18dBm~0 dBm
    Optical connector:
    Single LC Fiber Connector
    Distance:
    0~10KM   (SM Default)
    MADI
    Input :
    1 x 75 Ohm BNC connector
    Supported standards:
    AES10-2008
    Cable Equalization:
    80m
    Output:
    1 x 75 Ohm BNC connector
    Amplitude:
    750mV P/P
    Number of Transmitter Channel:
    1-ch MADI Input +1-ch MADI Output
    Number of Receiver Channel:
    2-ch MADI

    General index

     power supply:
    DC 5~12V
    Power consumption
    <5 w
    Net weight:
    Approax.0.75 KG /pair
    Dimension :
    55*42*22mm
    Case Material:
    Aluminum Alloy
    Work Temp:
    -20°C to 55°C
    Storage Temp:
    -20°C to 70 °C
    humidity:
    0 ~ 95% (non-condensing)
