Parameters
|
Single-mode
|
Multimode
|

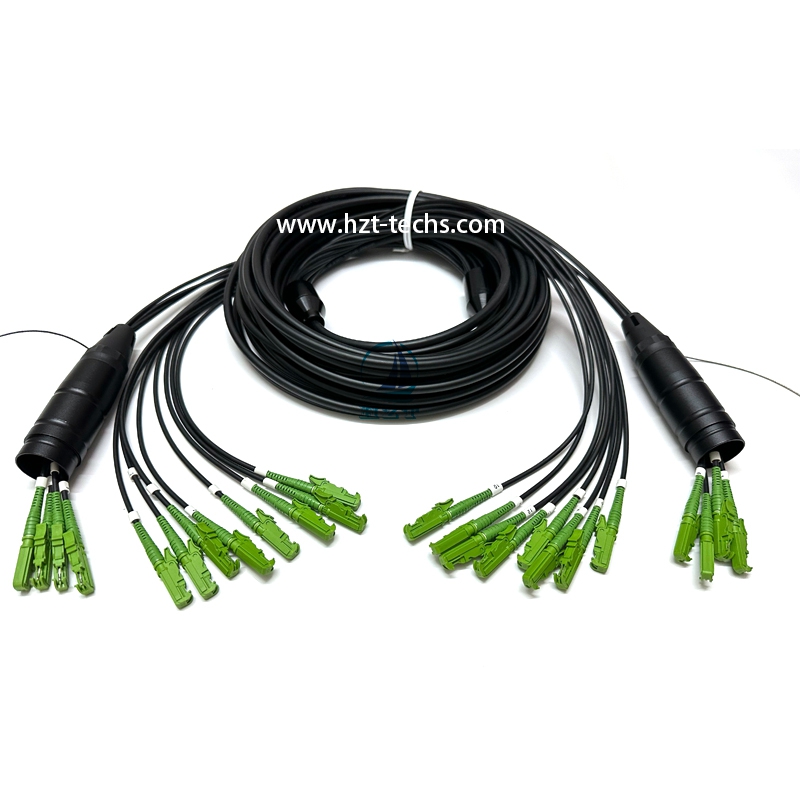

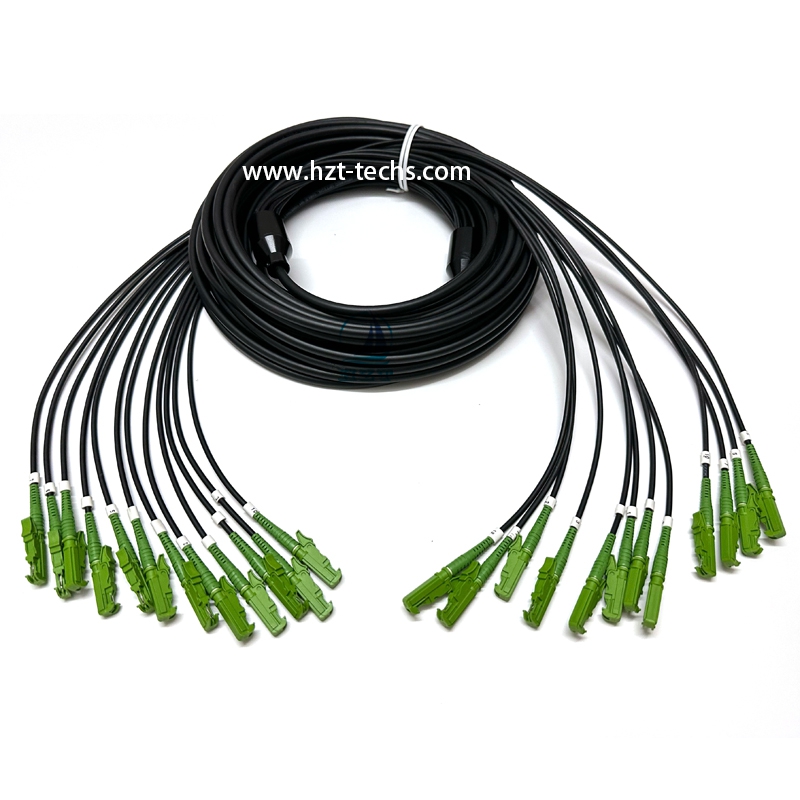

Connector A:
|
E-2000™(SC, FC, ST, LC, MTRJ Optional)
|
Connector B:
|
E-2000™(SC, FC, ST, LC, MTRJ Optional)
|
Fiber Count:
|
12 Core
|
Fiber Type:
|
Fault: G657A1(G657A2, OM1,OM2, OM3, OM4 can be customized.)
|

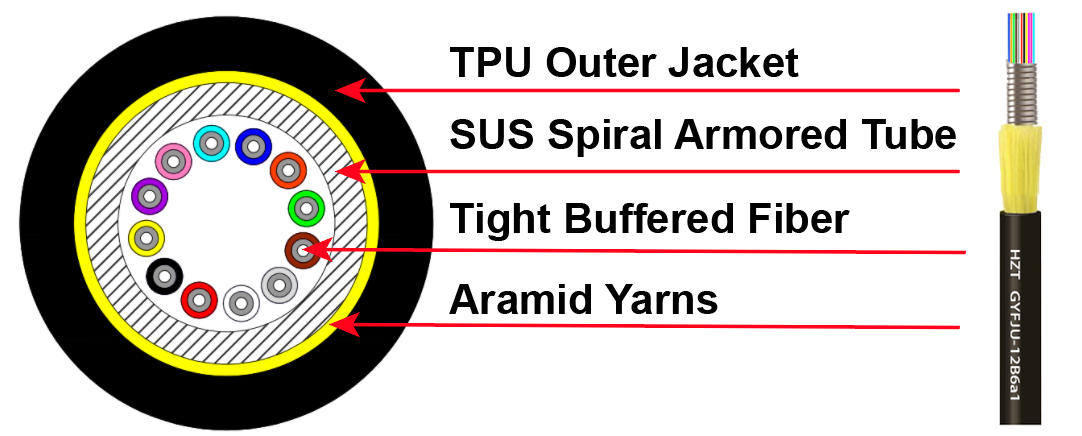

Armored Spiral Steel Tube:
|
Material:
|
SUS204
|
Outer Diameter:
|
2.8±0.2mm
|
Steel tube Thickness:
|
0.32±0.05 mm
|
Aramid Yarns:
|
1000 Den
|
Outer Jacket:
|
Material:
|
TPU
|
Thickness:
|
1.0±0.10mm
|
Cable nominal diameter(mm):
|
5.0±0.2mm
|
Net weight:
|
35±2Kg
|
Cable Color (Single Mode: OS1 & OS2):
|
Black
|
Jacket Colour (Multimode: OM1 & OM2&OM3&OM4):
|
Black
|

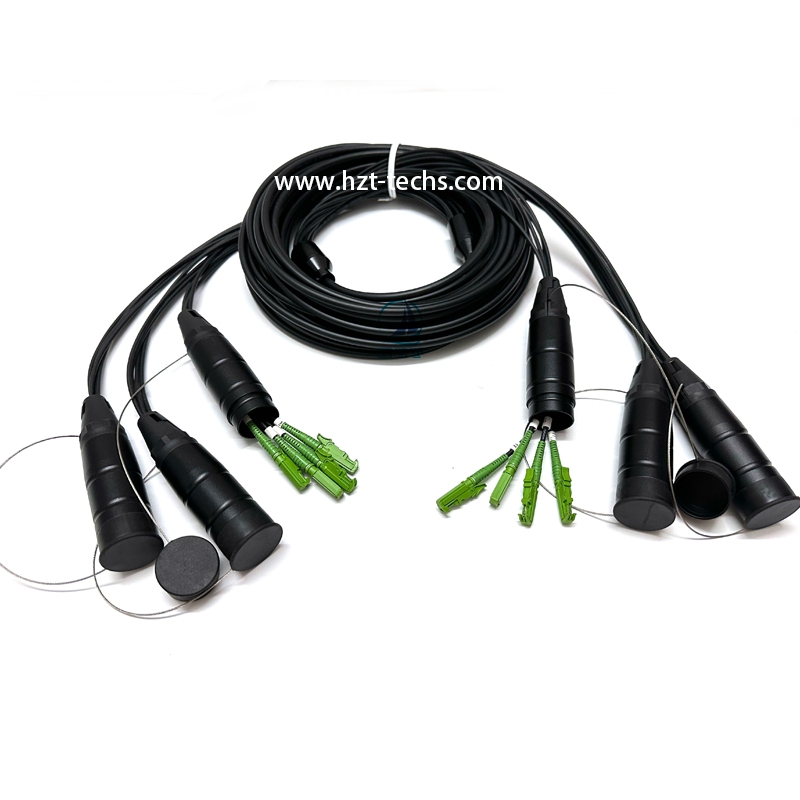

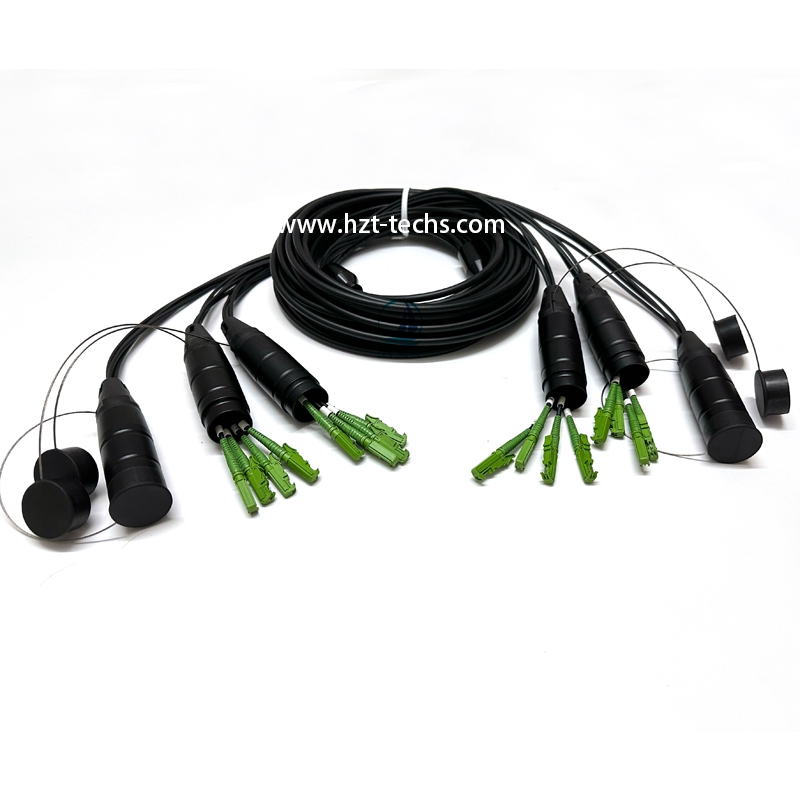

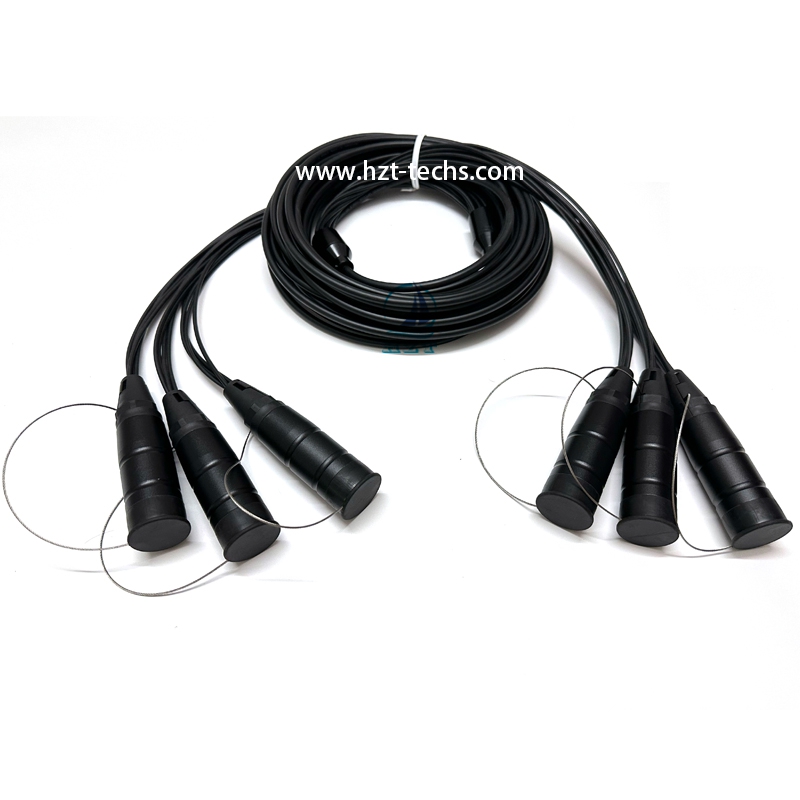

Protective Cover:
|
Supported.
|
Dustproof plug:
|
Pull-ring dust plug
|
Polishing Type:
|
PC
|
UPC
|
APC
|
PC
|
Insertion Loss (dB):
|
≤0.2
|
≤0.25
|
Return Loss (dB):
|
≥45
|
≥50
|
≥60
|
N/A
|
Repeatability (dB):
|
IL≤0.2 RL≤5
|
IL≤0.1
|
Vibration (dB):
|
IL≤0.2 RL≤5
|
IL≤0.2 dB
|
Exchangeability (dB):
|
IL≤0.2 RL≤5
|
IL≤0.2 dB
|
Tensile Strength (kg):
|
10
|
Vibration (dB):
|
≤0.2
|
Durability:
|
≤0.2 typical change, 1000 matings
|
Ferrule Material:
|
Zirconia Ceramic
|
Cable Length (m):
|
1, 2, 5, 10, 20, 30, 50,100 or customized
|
Operation Temperature (℃):
|
-20 ~ +70℃
|
Storage Temperature (℃):
|
-40 ~ +85℃
|
