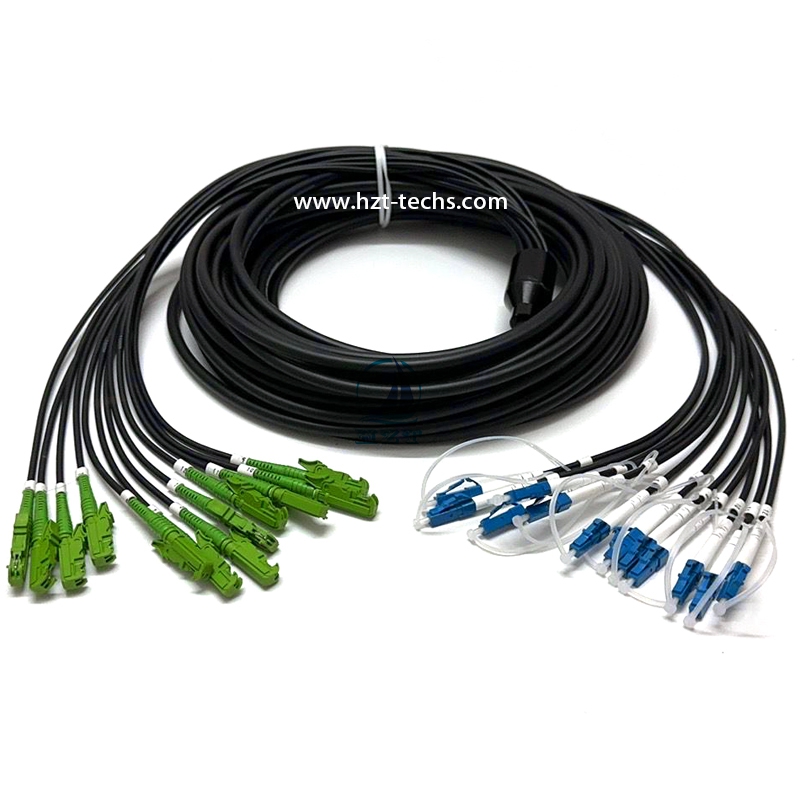

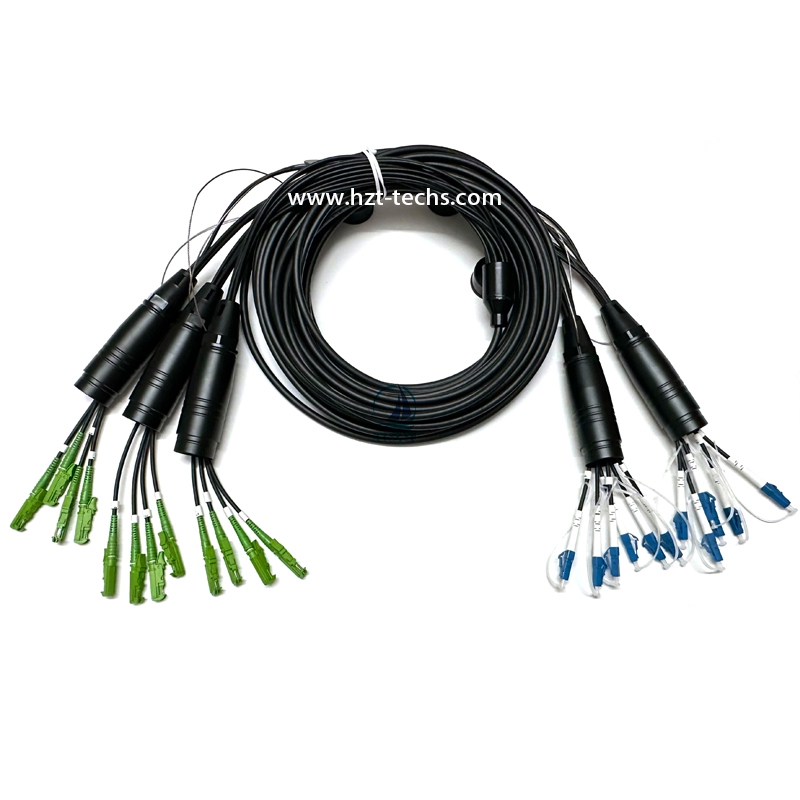

E2000/APC to 12xLC/UPC Armored Flexible Singlemode G657A1 Breakout Fiber Patch Cords

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT Technology E2000/APC to 12 x LC/UPC Armored Flexible Breakout  Fiber Patch Cords is different from regular break-out cable, The main cable consists of 12 strands of G657A1 (also can be G657A2, or  OM1, OM2, OM3 or OM4 multi-mode fiber) tightly buffered  fibers placed in a spiral armored steel tube wrapped with a layer of high-density arnylon yarn, and extruded to form a TPU sheath to form the entire cable. Branch cable adopts 3.0mm armor cable, the length can be 30 cm, 50 cm, 1 meter optional.
    HZT Technology Armored Flexible Fiber Cable is a communication cable specially designed for military, emergency rescue, field operations and other special environments. Compared with conventional civilian optical cables, Tactical optical cables have higher durability, flexibility and rapid deployment capabilities, and can adapt to extreme weather, complex terrain and high-intensity service conditions.
    HZT Technology also provide Connector assembly service, we can install  SC, FC, LC, ST, SC/APC, FC/APC, LC/APC, ST/APC, E2000, E2000/APC, DIN, MU and so on connnector.
    Compared with LC-LC and SC-SC jumpers, E2000-E2000 fiber optic jumpers have many advantages, such as low insertion loss, high return loss, strong interchangeability and good repeatability. E2000- The E2000 fiber jumper uses an E2000 connector with a spring valve and a push-pull locking device at both ends. The latching device locks completely when you insert the connector, and the spring valve closes automatically when you pull it out. This connector is characterized by protecting the pins from contamination and wear.
    Feature
    ● Low insertion loss;
    ● High return loss;
    ● Good repeatability;
    ● Good interchange;
    ● Excellent environmental adaptability.
     Applications:
    ● CATV (Cable Television)
    ● Telecommunication networks
    ● Computer fiber networks and fiber test equipment
    ● Communication rooms
    ●  FTTH (Fiber to The Home)
    ● LAN (Local Area Network)
    ● FOS (fiber optic sensor)
    ● Fiber Optic Communication System
    ● Optical fiber connected and transmitted equipment
    ● Defense combat readiness, etc.
    Cable Structure

    Specification
    Parameters
    Single-mode
    Multimode
    Connector A:
    E-2000™(SC, FC, ST, LC, MTRJ Optional)
    Connector B:
    E-2000™(SC, FC, ST, LC, MTRJ Optional)
    Fiber Count:
    12 Core
    Fiber Type:
    Fault: G657A1(G657A2, OM1,OM2, OM3, OM4 can be customized.)
    Armored Spiral Steel Tube:
    Material:
    SUS204
    Outer Diameter:
    2.8±0.2mm
    Steel tube Thickness:
    0.32±0.05 mm
    Aramid Yarns:
    1000 Den
    Outer Jacket:
    Material:
    TPU
    Thickness:
    1.0±0.10mm
    Cable nominal diameter(mm):
    5.0±0.2mm
    Net weight:
    35±2Kg
    Cable Color (Single Mode: OS1 & OS2):
    Black
    Jacket Colour (Multimode: OM1 & OM2&OM3&OM4):
    Black

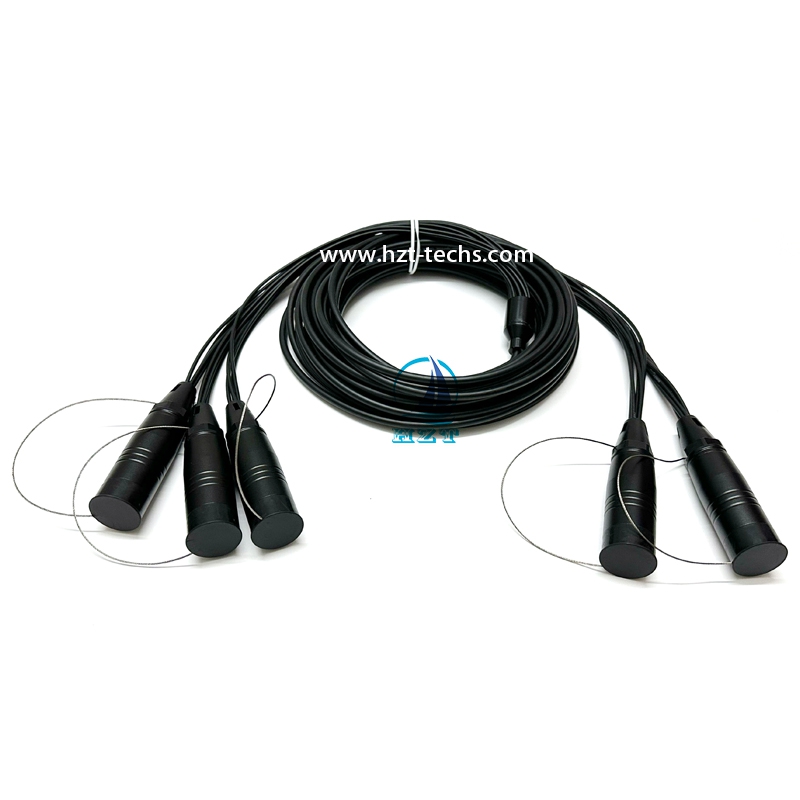

    Protective Cover:
    Supported.
    Dustproof plug:
    Pull-ring dust plug
    Polishing Type:
    PC
    UPC
    APC
    PC
    Insertion Loss (dB):
    ≤0.2
    ≤0.25
    Return Loss (dB):
    ≥45
    ≥50
    ≥60
    N/A
    Repeatability (dB):
    IL≤0.2  RL≤5
    IL≤0.1
    Vibration (dB):
    IL≤0.2   RL≤5
    IL≤0.2 dB
    Exchangeability (dB):
    IL≤0.2   RL≤5
    IL≤0.2 dB
    Tensile Strength (kg):
    10
    Vibration (dB):
    ≤0.2
    Durability:
    ≤0.2 typical change, 1000 matings
    Ferrule Material:
    Zirconia Ceramic
    Cable Length (m):
    1, 2, 5, 10, 20, 30, 50,100 or customized
    Operation Temperature (℃):
    -20 ~ +70℃
    Storage Temperature (℃):
    -40 ~ +85
