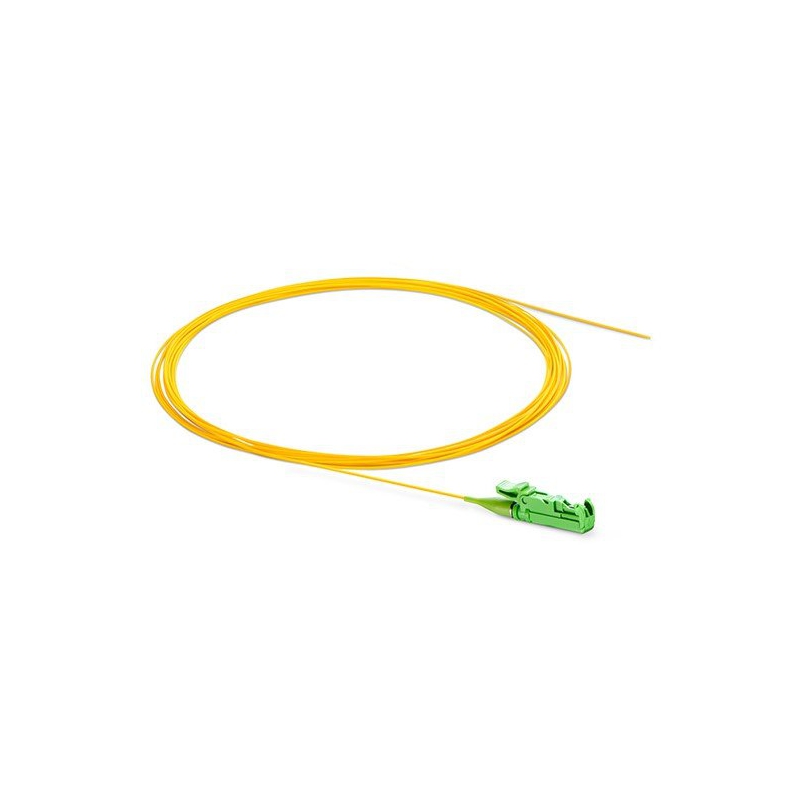

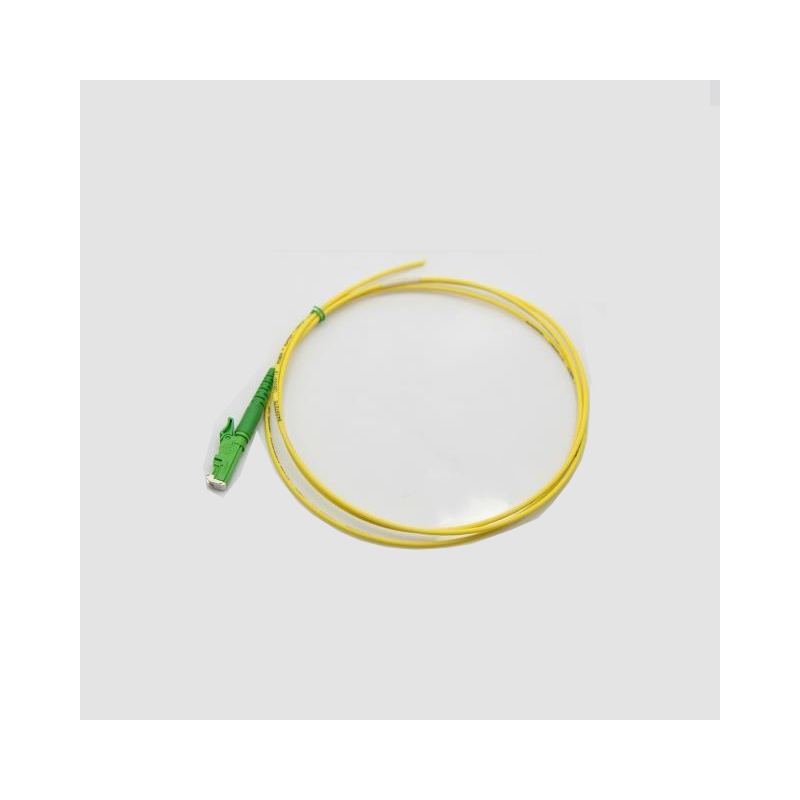

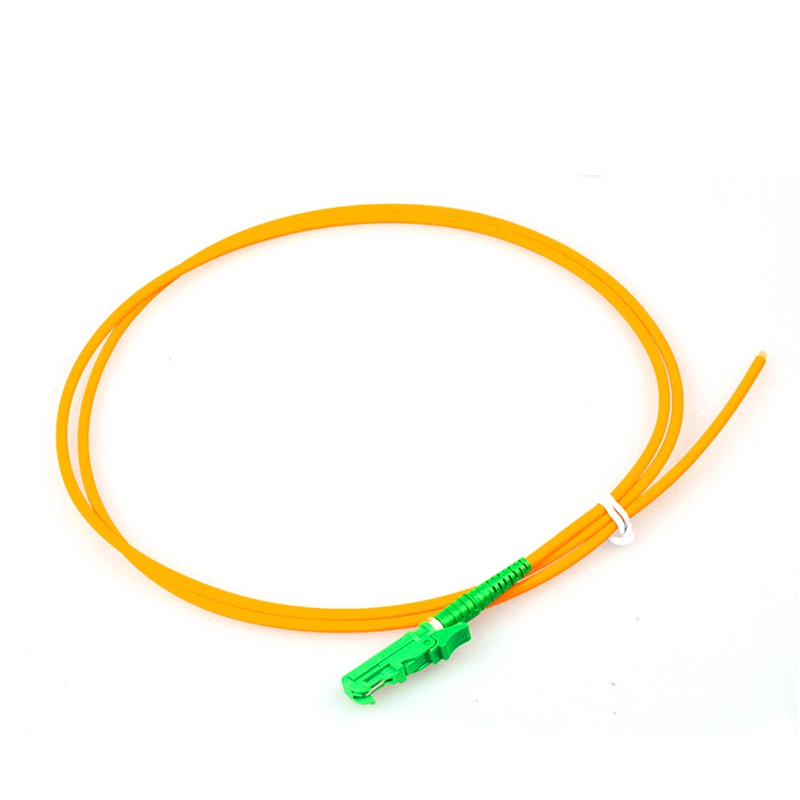

E2000/APC Fiber Optic Pigtail Single Mode, 0.9/2mm jacket, 1 meter Length

  • Description
  • Technical data
  • Make an inquiry
    Description
    E2000 pigtail is a cable with a high-grade E2000 fiber optic connector on one end, the end unterminated. They can configure single mode and multimode fiber for the specific application. These E2000 pigtail Assemblies are available in UPC and APC polish with simplex or duplex fiber cable versions. Cable length, cable diameter, and jacket are optional. The typical type of fiber pigtail uses 0.9mm or 2.0mm cable because it is especially suitable for high-density splice applications.
    Feature
    ● Low insertion loss and high return loss
    ● Excellent end-face geometry parameter
    ● Special specifications available upon customer’s request.
    Application
    ● Data Transmission Networks
    ● Image transmission Networks
    ● CATV
    ● Optical test instrument
    ● Photoelectric automatic control system

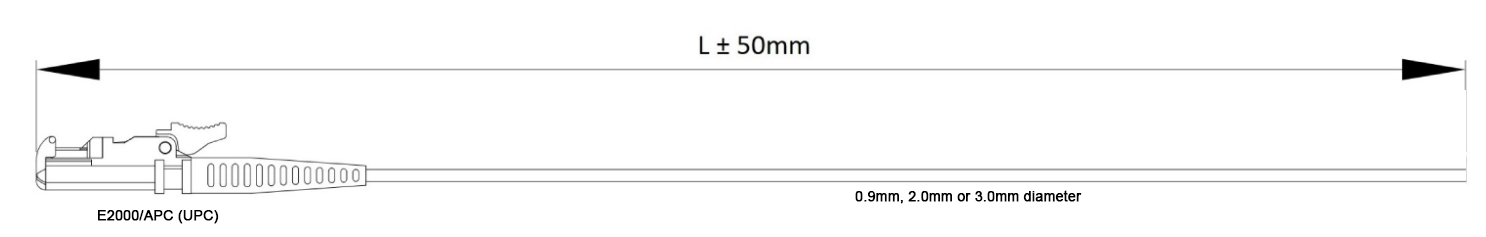

    Structure


    Specification
    Parameters
    Single-mode
    Connector A:
    E-2000™
    Connector B:
    --
    Polishing Type:
    APC or UPC
    Operating Wavelength:
    1260~1650nm
    Insertion Loss (dB):
    ≤0.3dB(Typical value:0.2dB)
    Return Loss (dB):
    Return Loss
    Repeatability (dB):
    ≤0.2dB
    Interchangeability:
    ≤0.2dB
    Mechanical Endurance:
    500 times
    Jacket Material:
    PVC, LSZH, OFNR
    Cable Color (Single Mode: OS1 & OS2):
    Yellow
    Cable Length (m):
    0.3m, 0.5m, 1.0, 2.0m, 3.0m
    Cable Diameter (mm):
    Ø0.9, Ø2.0, Ø3.0
    Operation Temperature (℃):
    -20 ~ +70℃
    Storage Temperature (℃):
    -20 ~ +70℃
