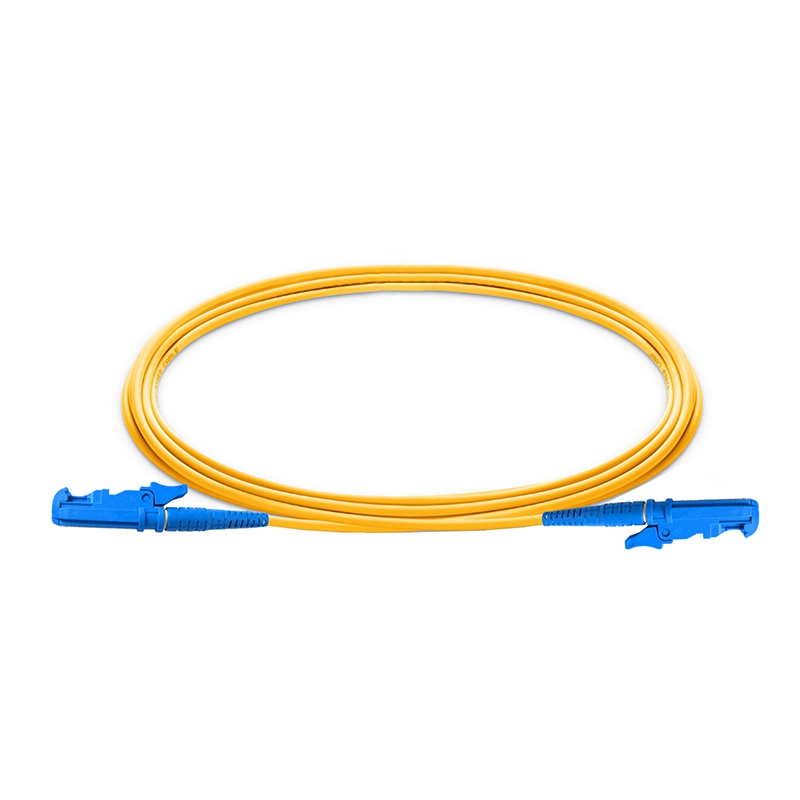

E2000/UPC-E2000/UPC Singlemode OS2 Simplex Fiber Patch Cable

  • Description
  • Technical data
  • Make an inquiry
    Description
    High performance E2000 patch cords, manufactured for intermal applications using high quality Low Smoke Zero Halogen (LSZH) cable and low loss zirconiaferule connectors. They are offered with UPC(singlemode and multimode or APC polishing (singlemode). They fully conform to lSO/EC, TIAElA and Telcordia standards.
    Feature
    ● E2000 connectors with metal shutter
    ● Available as hybrid patch cords with FC,LC, SC orST connectors
    ● Available in different fibre types including OS1, OS2-G.652D or G657A1, G.657A2, OM1, OM2, OM3 Or OM4
    ● Low smoke zero halogen (LSZH) jacket
    ● CE, RoHS and FCC compliant
    Application
    ● Telecommunication networksData centers
    ● FTTH
    ● LAN and WAN
    Structure


    Specification
    Parameters
    Single-mode
    Multimode
    Connector A:
    E-2000™(SC, FC, ST, LC, MTRJ Optional)
    Connector B:
    E-2000™(SC, FC, ST, LC, MTRJ Optional)
    Polishing Type:
    PC
    UPC
    APC
    PC
    Insertion Loss (dB):
    ≤0.2
    ≤0.25
    Return Loss (dB):
    ≥45
    ≥50
    ≥60
    N/A
    Repeatability (dB):
    IL≤0.2  RL≤5
    IL≤0.1
    Vibration (dB):
    IL≤0.2   RL≤5
    IL≤0.2 dB
    Exchangeability (dB):
    IL≤0.2   RL≤5
    IL≤0.2 dB
    Tensile Strength (kg):
    10
    Vibration (dB):
    ≤0.2
    Durability:
    ≤0.2 typical change, 1000 matings
    Ferrule Material:
    Zirconia Ceramic
    Jacket Material:
    PVC, LSZH, OFNR
    Cable Color (Single Mode: OS1 & OS2):
    Yellow
    Jacket Colour (Multimode: OM1 & OM2):
    Orange
    Jacket Colour (Multimode: OM3 & OM4):
    Aqua
    Cable Length (m):
    1, 2, 5, 10, 20, 30, 50,100 or customized
    Cable Diameter (mm):
    Ø0.9, Ø2.0, Ø3.0
    Operation Temperature (℃):
    -20 ~ +70℃
    Storage Temperature (℃):
    -40 ~ +85℃
