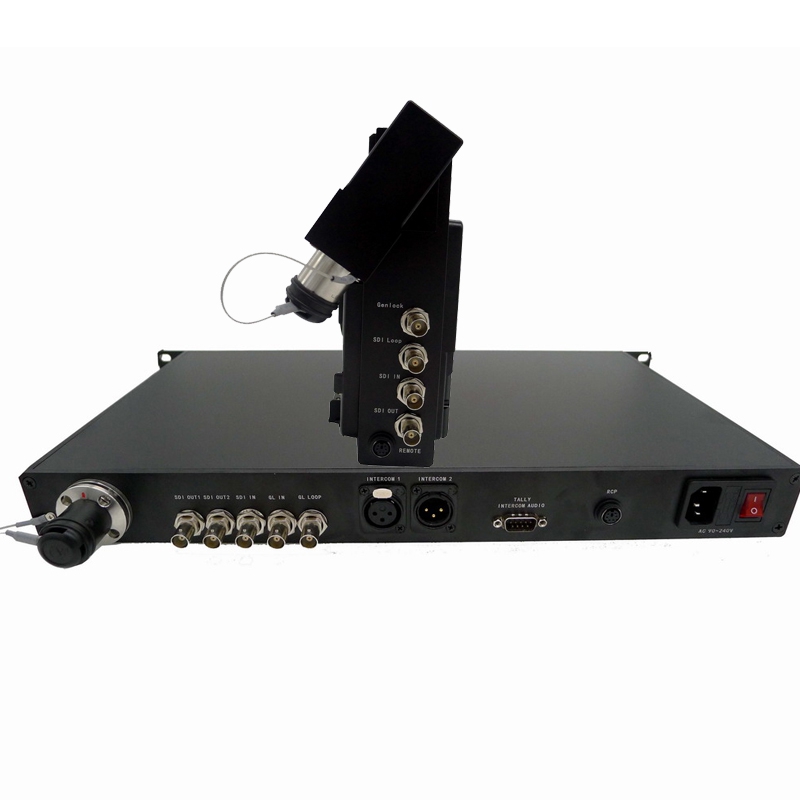

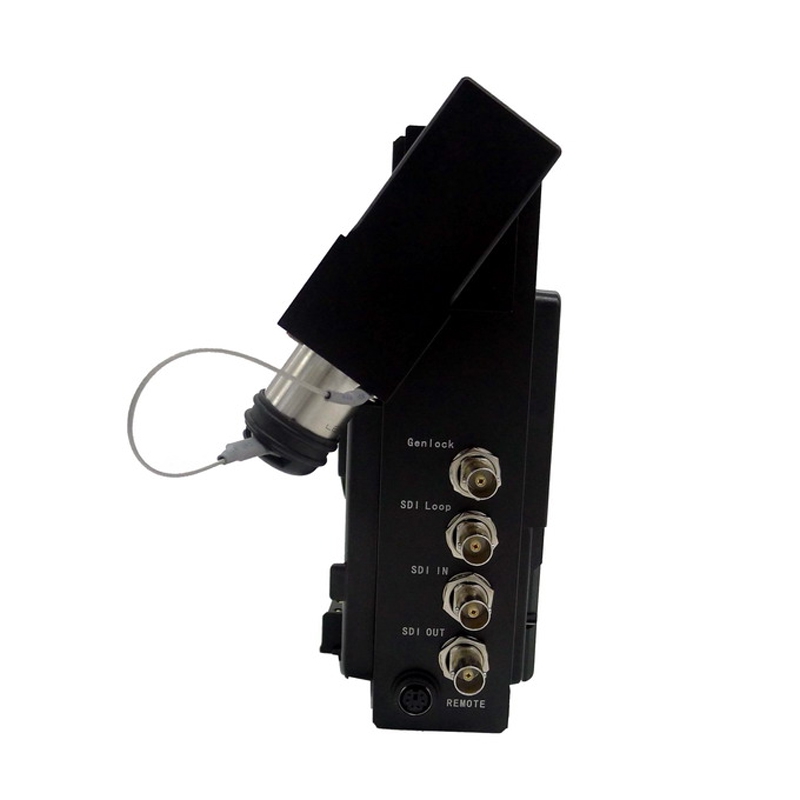

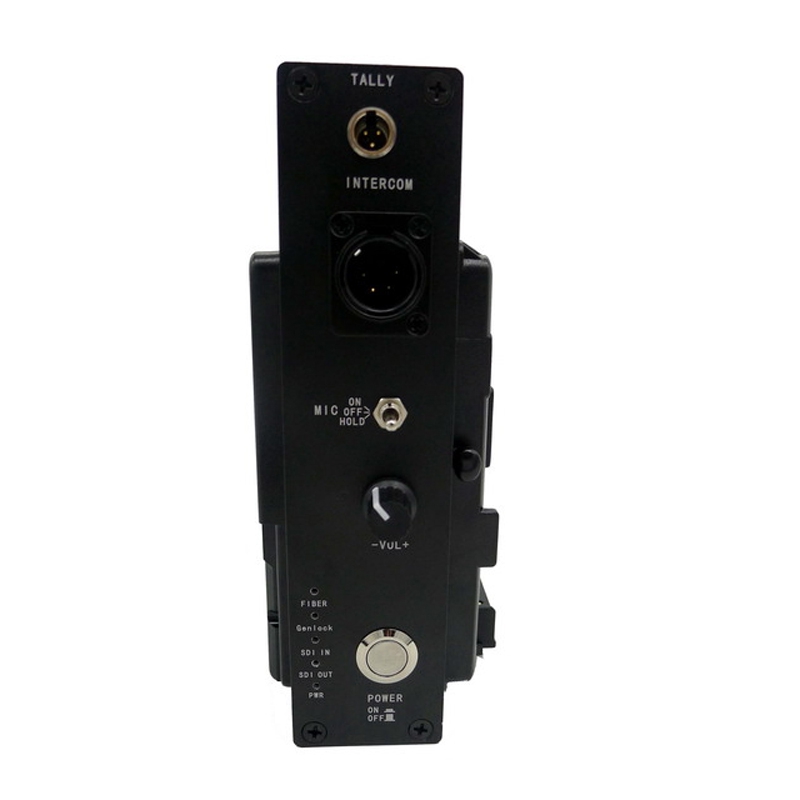

JVC Camera EFP to Fiber System for Camera Adapter + Base station

  • Description
  • Technical data
  • Make an inquiry
    Description
    EFP to fiber for JVC remote control includes one Camera Adaptor and one Base Station. The system transports 1-ch 3G/HD-SDI signal from the camera to the Base Station, 1-ch reverse 3G/HD-SDI,Genlock or BB/TC, Remote control for JVC camera(compatible with Remote ControlUnit RM-LP25/ RM-LP55/RM-LP57), 10/100M Ethernet, intercom (Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected intercom main station), tally(One color or two colors can be selected), Remote camera power supply (14.6V DC up to 100 Watts). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.
    Features
    ● 1-ch Forward 3G-SDI and 1-ch Reverse 3G-SDI
    ● Handle all Pathological patterns
    ● Automatic cable equalization to ensuresignal integrity
    ● 3G/HD/SD-SDI input auto recognition,support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE259M
    ● Mic inputs with mute and pre-amps
    ● Headphone with volume up or down
    ● Remote control (Sony/ Panasonic/JVC/Ikegami/Datavideo optional)
    ● Tally LED+/- wet output or dry ContactClosure optional
    ● V-mount or A-mount (Anton/Bauer)batteryplate optional
    ● Genlock or TC/BB is available
    ● Reverse PGM / IFB audio is optional
    ● 10/100M Ethernet is optional
    ● Remote camera power supply (14.6V DC up to100 Watts), with insertion detection protection, Lemo SMPTE 304 or NeutrikOpticalCON DUO connector
    ● SMPTE hybrid cable 200+m
    Connection Diagram

    Optical:
    Wavelength:
    1310nm / 1550nm / CWDM
    Output Power:
    -6~-1dBm
    Rx sensitivity:
    <-18dBm
    Transmission Distance:

    Remote power 100W,SMPTE hybrid cable 200+meter

    Optical connector:
    Lemo SMPTE 304 / Neutrik OpticalCON DUO ,
    Camera end can be rotated 90 degrees
    SDI input
    /output:
    Signal format:
    SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data rate:
    270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
    SDI interface:
    BNC 75 Ohm
    SDI Number:
    Camera Adapter
    Base Station
    1-CH 3G-SDI Video Input,
    1-CH 3G-SDI Video Output
    1-CH 3G-SDI Video Input,
    2-CH 3G-SDI Video Output
    Intercom:

    Camera Adapter
    Base Station:
    Interface:
    4-pin XLR(Male)
    3-pin XLR Female/Male: Party line audio for Clearcom / Altairaudio / Granitesound’s Intercom main station
    Microphone:
    Mic inputs with mute and pre-amps
     None
    Headphone:
    with volume up or down
     None
    Tally:


    Camera  Adaptor
    Base Station
    Interface:
    4-pin or 3pin mini XLR
    DB9(Male)
    Input/Output:
    Dry Contact Closure
    or wet LED+/- (Output)
    Dry Contact Closure or TTL (Input)
    LED Indicator:
    On: short or LED on
    Off: open or LED off

    On: short to GND or TTL low,  Off: open or TTL high

    Remote

    Camera Adapter
    Base Station
    Interface:
    JVC 6-pin interface
    JVC 6-pin interface
    Data:
    JVC Remote Control data
    JVC Remote Control data
    Ethernet
    Work mode:
    Full duplex/half duplex
    Data Rate:
    10/100/1000Mbps(AUTO)
    connection terminal:
       RJ45
         Physical:

    Camera Optic Adaptor
