Optical：
|
Wavelength:
|
1310nm / 1550nm / CWDM
|
|
|
Output Power:
|
-6~-1dBm
|
||
|
Rx sensitivity:
|
<-18dBm
|
||
|
Transmission Distance:
|
Remote power 100W，SMPTE hybrid cable 200+meter |
||
|
Optical connector:
|
Lemo SMPTE 304 / Neutrik OpticalCON DUO ,
Camera end can be rotated 90 degrees
|
||
|
SDI input
/output:
|
Signal format:
|
SMPTE 424M, SMPTE 292M, SMPTE 259M
|
|
|
Data rate:
|
270Mbit/s - 1.48Gbit/s - 3Gbit/s
|
||
|
Cable Equalization:
|
Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
|
||
|
SDI interface:
|
BNC 75 Ohm
|
||
|
SDI Number:
|
Camera Adapter
|
Base Station
|
|
|
1-CH 3G-SDI Video Input,
1-CH 3G-SDI Video Output
|
1-CH 3G-SDI Video Input,
2-CH 3G-SDI Video Output
|
||
|
Intercom:
|
|
Camera Adapter
|
Base Station:
|
|
Interface:
|
4-pin XLR(Male)
|
3-pin XLR Female/Male: Party line audio for Clearcom / Altairaudio / Granitesound’s Intercom main station
|
|
|
Microphone:
|
Mic inputs with mute and pre-amps
|
None
|
|
|
Headphone:
|
with volume up or down
|
None
|
|
|
Tally:
|
|
Camera Adaptor
|
Base Station
|
|
Interface:
|
4-pin or 3pin mini XLR
|
DB9(Male)
|
|
|
Input/Output:
|
Dry Contact Closure
or wet LED+/- (Output)
|
Dry Contact Closure or TTL (Input)
|
|
|
LED Indicator:
|
On: short or LED on
Off: open or LED off
|
On: short to GND or TTL low, Off: open or TTL high |
|
|
Remote：
|
|
Camera Adapter
|
Base Station
|
|
Interface:
|
JVC 6-pin interface
|
JVC 6-pin interface
|
|
|
Data:
|
JVC Remote Control data
|
JVC Remote Control data
|
|
|
Ethernet：
|
Work mode:
|
Full duplex/half duplex
|
|
|
Data Rate:
|
10/100/1000Mbps(AUTO)
|
||
|
connection terminal:
|
RJ45
|
||
|
Physical:
|
|

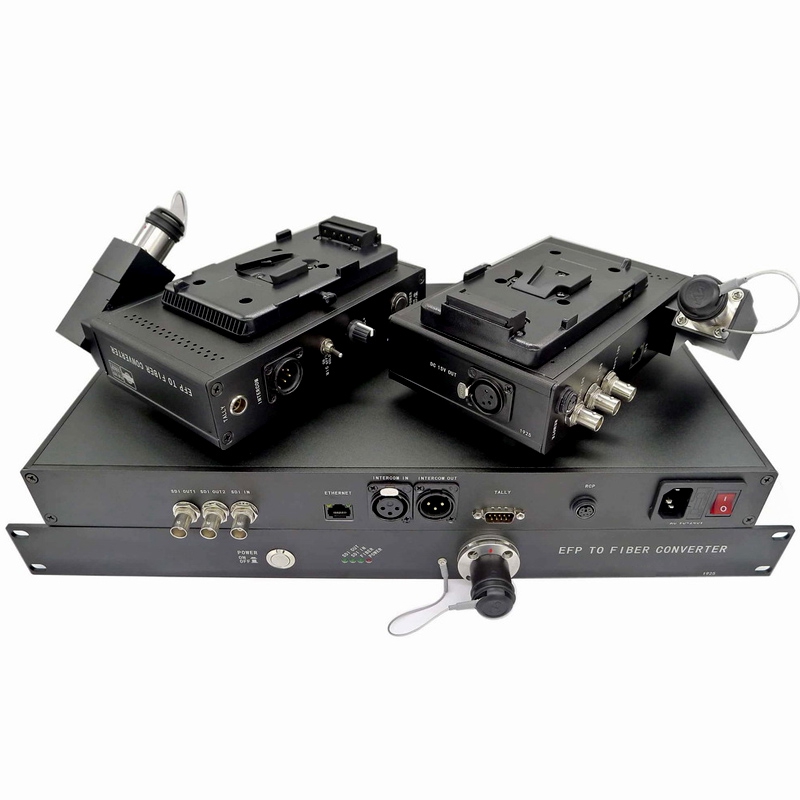

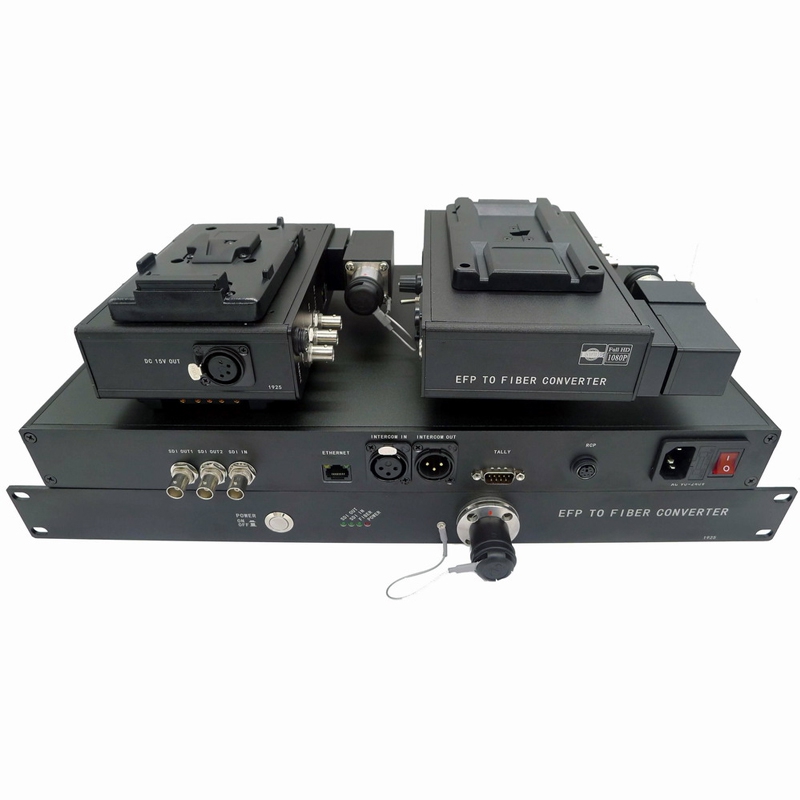

Camera Optic Adaptor
|
|
