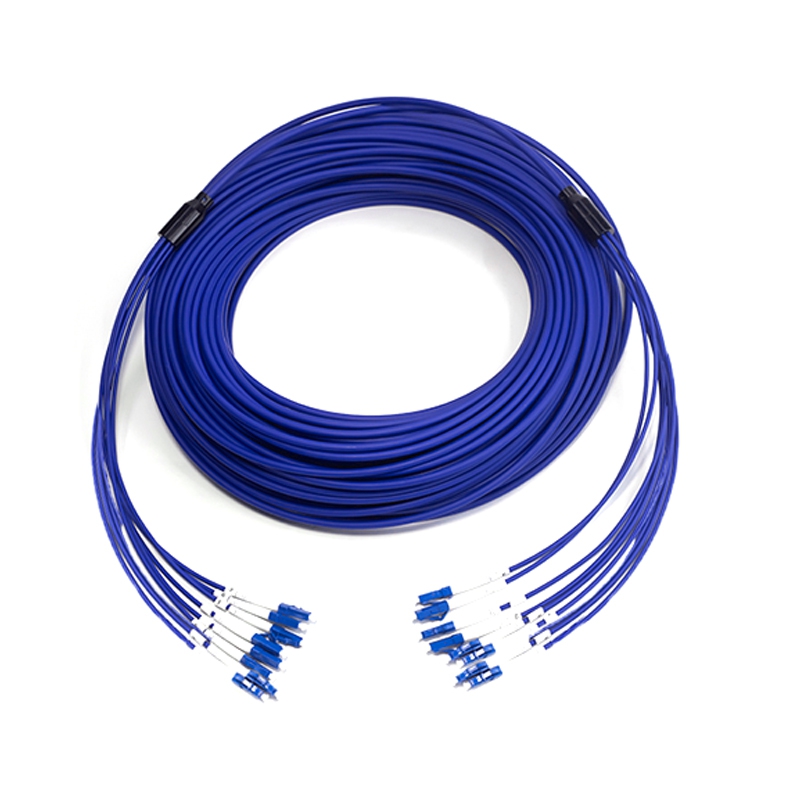

8 Core LC/UPC-LC/UPC Armored Fiber Optical Cable

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT Technology Indoor Armored Fiber Cable with LC-LC Connector Assembly has an helical stainless steel tubet rugged shell with steel and kevlar is stronger than common fiber optic cable and has a higher rated range of operating temperature. Although this cable contains metal, it is still light weight and flexible with about an 8 inch bend radius. Armored fiber optic patch cable is specifically designed for customer premises, central offices and indoor harsh environments or heavy traffic areas which require extra protection.

    Features·
    ● Low insertion loss and high return loss
    ● RoHS, REACH and SVHC compliant
    ● Resist damage by improper twist
    ● Widely applied in CATV / VIDEO, passive optical network PON, FTTX, ATM, SONET/WDM and military areas
    ● Light-tight construction
    ● Rugged, excellent kink and crush resistant
    ● Resistance of pressure and rodent bite
    ● Easy-installation, designed construction to support tough usage
    Cable Standard
    GJSFJV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR, OFNP.
    Cable Structure


    Technique Parameter
    Items
    Parameter
    Cable Name:
    8 Core LC/UPC-LC/UPC Armored Fiber Cable
    Fiber Count:
    8 Core
    Fiber Mode:
    OS 9/125μm
    Fiber Type:
    G657A1, (can customized G657A2, OM1,OM2,OM3, OM4 and OM5)
    Connector Type:
    LC to LC (Customized SC, ST, FC, E2000 Connector)
    Polish Type:
    UPC to UPC,  (APC optional)
    Insert Loss:
    ≤0.3dB
    Return Loss:
    ≥50dB
    Armored Material:
    Stainless Steel Tube
    Cable Outside Diameter (OD):
    4.5mm
    Cable Jacket:
    LZSH or PVC
    Tensile Load:
    120/225N (Long/Short Term)
    Operating Temperature:
    -20~70°C
    Storage Temperature:
    -20~70°C
