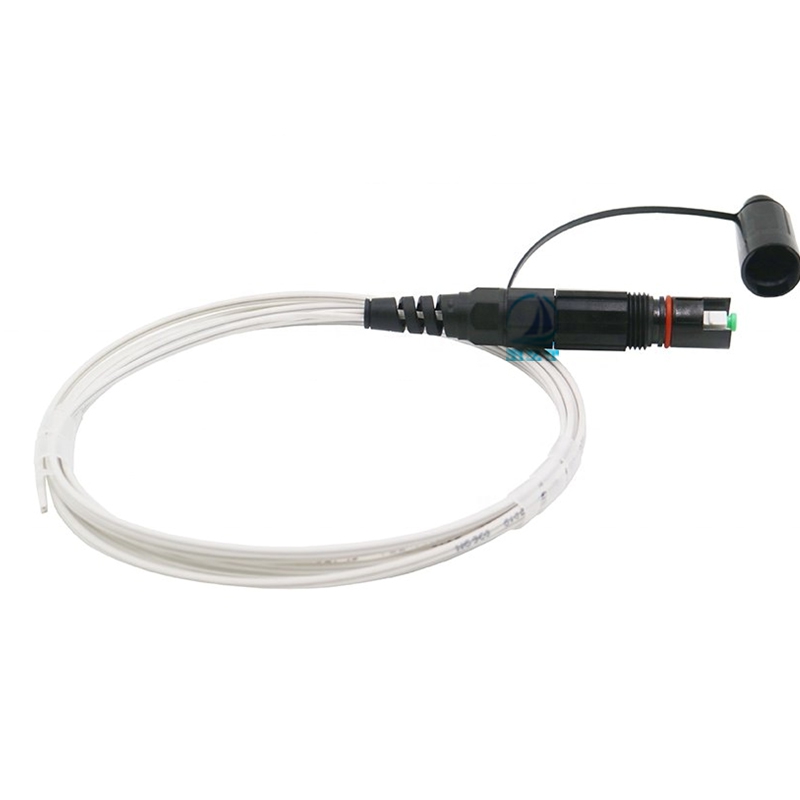

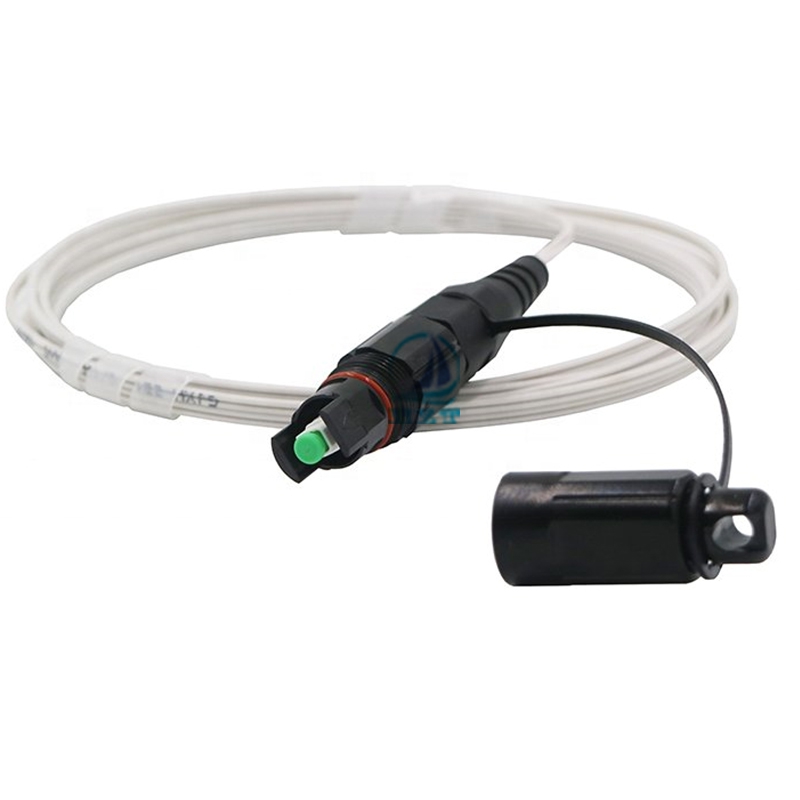

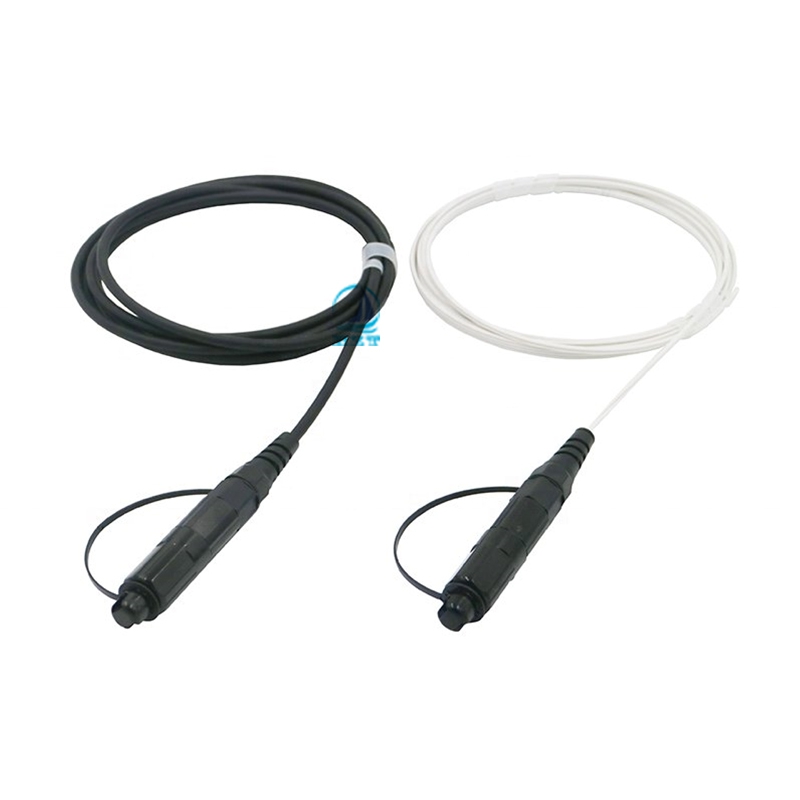

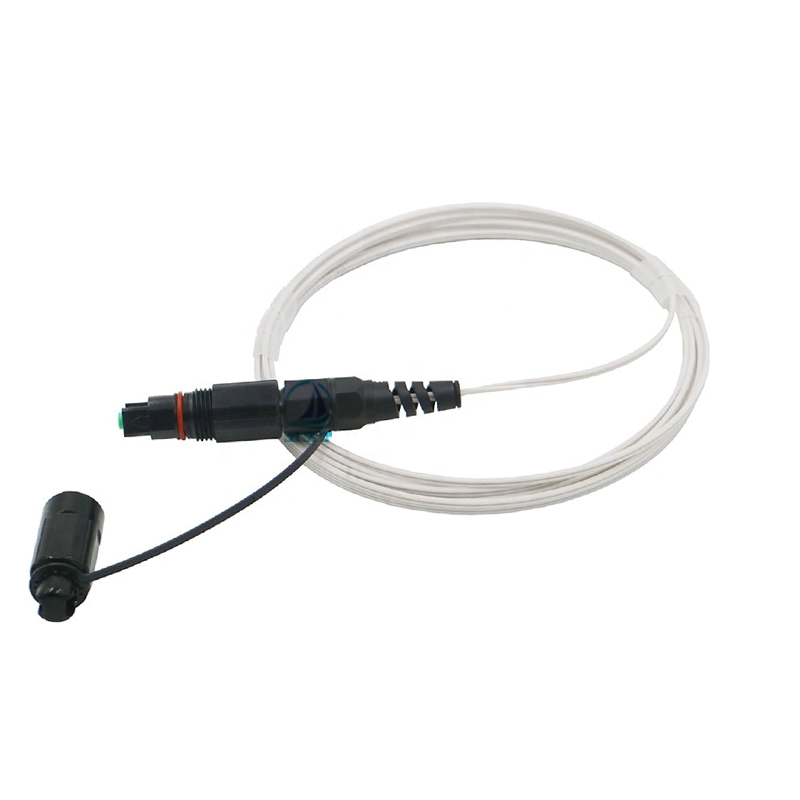

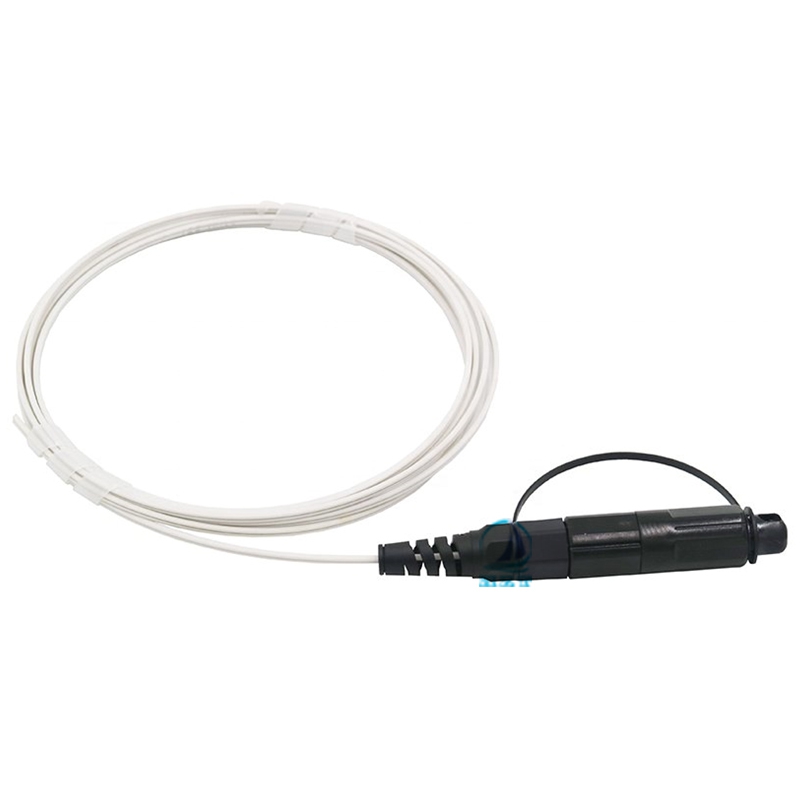

Optitap SC/APC Fast Connector Fiber Pigtail

  • Description
  • Technical data
  • Make an inquiry

    Features

    Compact size,easy to operate,durable.
     Easy connection to hardended adapters on terminals or closures.
     Reduce welding,connect directly to achieve interconnection.
    Spiral clamping mechanism ensures long-term reliable connection.
    Guide mechanism,can be blinded with one hand,simple and quick,connect and install.
    Accepts 2.0x3.0mm,3.0mm ,5.0mm Cable Diameters Factory or field installation,Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.

    Applications

    Fiber optic communications in harsh outdoor environments.
     Outdoor communications equipment connection.
    Waterproof fiber equipment SC port.
    Remote wireless base station.
    ●FTTX wiring projiect
    Specification
    Waterproof Rate IP68.(1M,hours)
    Applicable optical cable 2.0x3.0mm,3.0mm ,5.0mm
    Insertion loss ≤0.50dB
    Return loss ≥55dB
    End face performance Conform to YD T 2341.1-2011
    Mechanical durability 1000 times
    Cable tension



    2.0x3.0mm (Ttap Fast Connector) ≥30N; 2Minute
    2.0mm,3.0mm (Ttap Connector) ≥30N; 2Minute
    5.0mm (Ttap Connector) ≥70N; 2Minute
    Torsion of optical cable ≥15N
    Drop performance Allow 10 drops under 1.5m height without abnormal performance
    Operation temperature -10℃~+70℃
    Hot and humid working environment Long term operation under 90% relative humidity ,70 ℃
