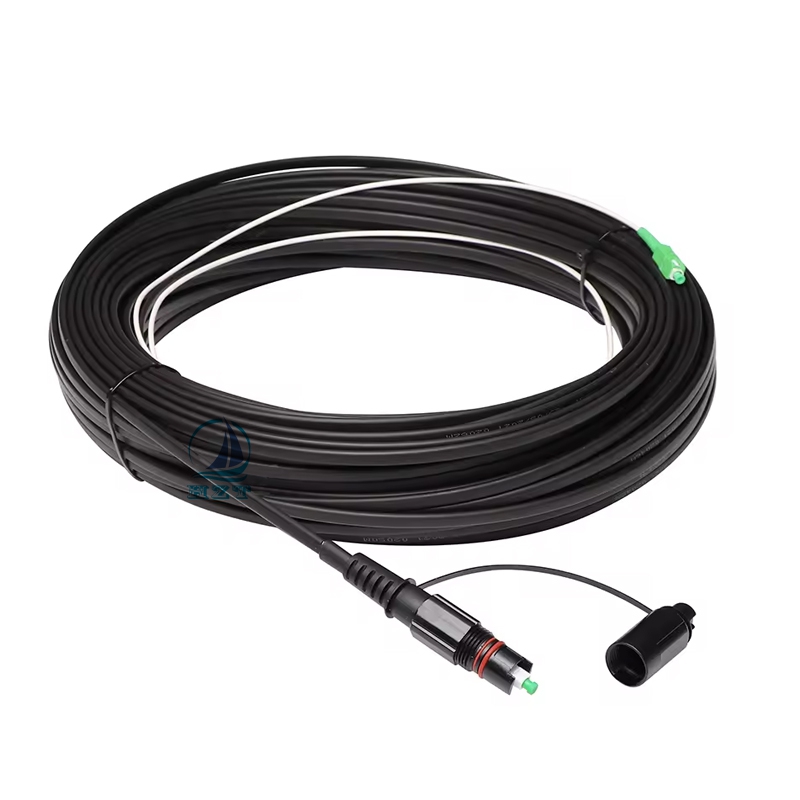

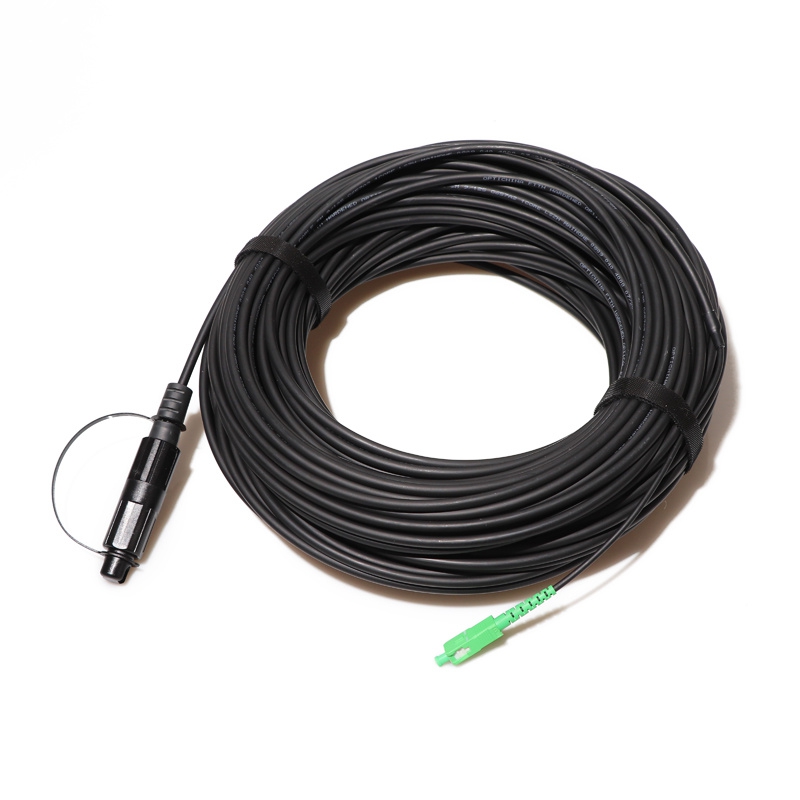

IP68 Waterproof indoor/outdoor Fiber Optic H optic SC/APC Cable Assembly

  • Description
  • Technical data
  • Make an inquiry
    Description
    H optic assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H optic connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the H optic connector provides an ideal solution for direct burial, conduit, or aerial installations.

    H connector(Corning OptiTap™) provide the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly fast than traditional field installations. H connector utilizes optical fiber cables upon which network access points are pre-installed at customer-specified locations along the length of the cable.

    Inside innovative design can protect ferrule end face far away scratch when mating with receptacle; Special fool-proofing design make sure H connector (Corning OptiTap™) has blind-mating function. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and thread type mechanical latch. H connector (Corning OptiTap™) provides quick installation solutions and has good performance on mating with receptacle. Cable can be amored or non-amored.


    Benefits
    ●Allows flexibility to use factory terminated assemblies
    ●Provides superior weather resistance for FTTH and other outdoor applications
    ●Ensures functionality in harsh weather environments
    ●Can be used with industry standard cable designs
    ●Easily installs without special tooling
    ●Threaded style coupling
    ●Provides bend protection for installation and long term use

    Features
    ●Single fiber, SC-based connector
    ●Bird proof and rodent resistant
    ●IP68 water and dust protection
    ●Low profile in-line receptacle available
    ●No installation tools required
    ●100 minimum mating cycles
    ●In-line connection available
    ●Operating temperature: -40° to 85°C
    ●Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm
    ●33 lb. axial cable retention (150N)

    Applications
    ●FTTH
    ●Outdoor Areas

    ●Harsh Environment
    ITEM
    Technical Parameters
    lnstallation Environment
    lndoor/Outdoor
    Operation Environment
    Aerial self-supported
    Operation Temperature (℃)
    -20/+70°
    Length
    1, 2 , 3, 5, 10, 20, 50,100,150,220 and 300m*Other lenghts may be supplied on request
    Cable Type
    Double jacket Cable or Figure 8 drop cable
    Connector Type
    H-Optic(SC/APC)
    Color
    Black
    Fiber Type
    Single-mode Bending Loss lnsensitive,9/125um
    Polishing Type
    APC
    lnsertion Loss (dB)
    ≤0.15 dB - Typical≤0.30 dB - Maximum
    Return Loss (dB)
    ≥65dB
    Fibers Quantity
    1 optical fiber
    Cable Flammability Rating
    Optical cable with LSZH(Low Smoke Zero Halogen) flame retardant coating
