FTTH Armored Drop Cable 1-4 Cores Singlemode G657A1 Fiber Cable

  • Description
  • Technical data
  • Make an inquiry
    Description

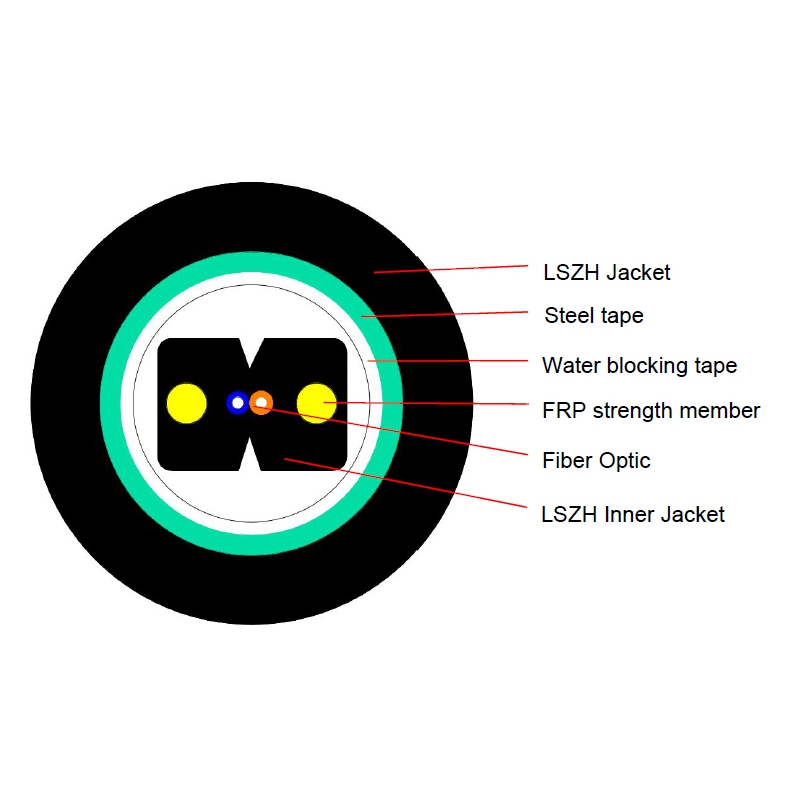

    FTTH Drop Cable 1-4 Cores Singlemode Armored Outdoor Cable are made for connecting user’s devices with outdoor feeder cable, especially suitable for duct installation. The optical fiber unit is located in the center. The two parallel FRP strength members improve the tensile strength. With the LSZH (LSZH, Low smoke, Zero halogen) material jacket, this cable has good flame retardant performance. Water blocking tape & AL-plastic tape provide good water proof ability. Flame-retardant, FRP Strength Member, Double-Jacket Armored Cable can be used in aerial and duct access cabling in FTTH.

    Feature:
    Soft and flexible, good bending performance
    Water-proof tape prevent the ingression of water into the cable
    AL-plastic tape makes the cable crush resistant and moisture proof
    FRP strength member improves the tensile strength, LSZH flame-retardant inner and outer jacket has good flame-retardant performance
    Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
    Simple structure, light weight and high practicability
    Novel flute design, easily strip and splice, simplify the installation and maintenance

    Application
    Used in aerial and duct access cabling
    Can be installed in small bending environment
    Suitable for the connection between indoor and outdoor
    Specially used where good insulation performance are expected
    Technique Parameter
    Fiber Count 1F 2F 4F
    Strength member 1
    FRP/KFRP
    0.5MM
    Strength member 2 FRP/KFRP/Solid Steel wire
    0.5MM
    0.5MM 0.5MM
    Cable diameter(mm) Approx. 7.0±0.4mm 7.0±0.4mm 7.0±0.4mm
    Cable weight(kg/km) Approx. 40 40 40
    Tensile Strength Short/ Long Term(N) 600/300
    Crush resistance Short/Long term (N/100mm) 1000/500
    Bend Radius(MM) Short/Long term 30D/15D
    Operating temperature range(°C) -40°C ~+70°C
