Fiber Media Converter Rack 16 slots Dual power supply 1000M Fiber Media Converter transceiver rack

  • Description
  • Technical data
  • Make an inquiry
    Description

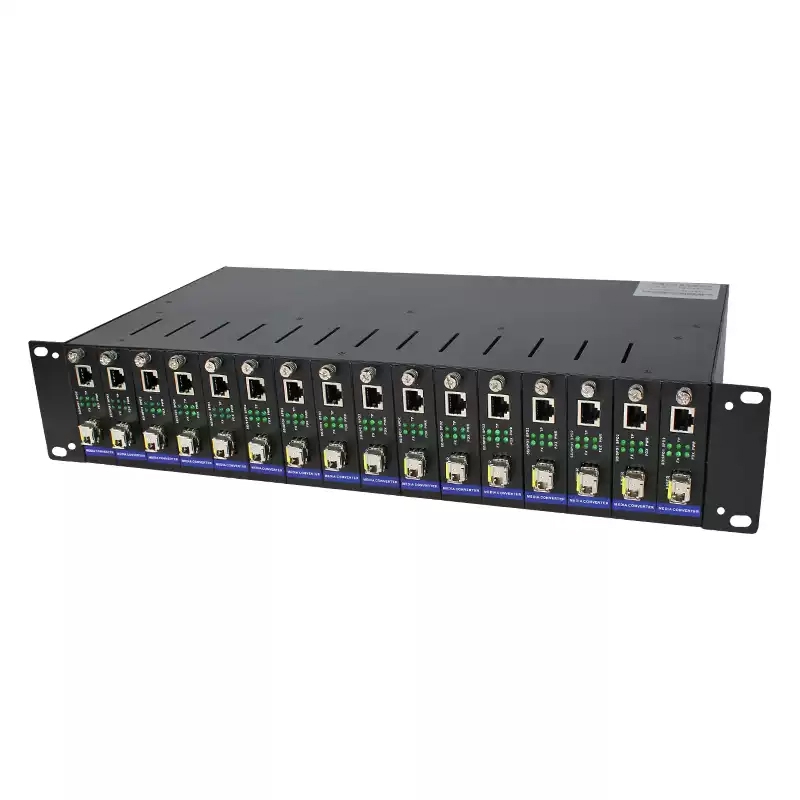

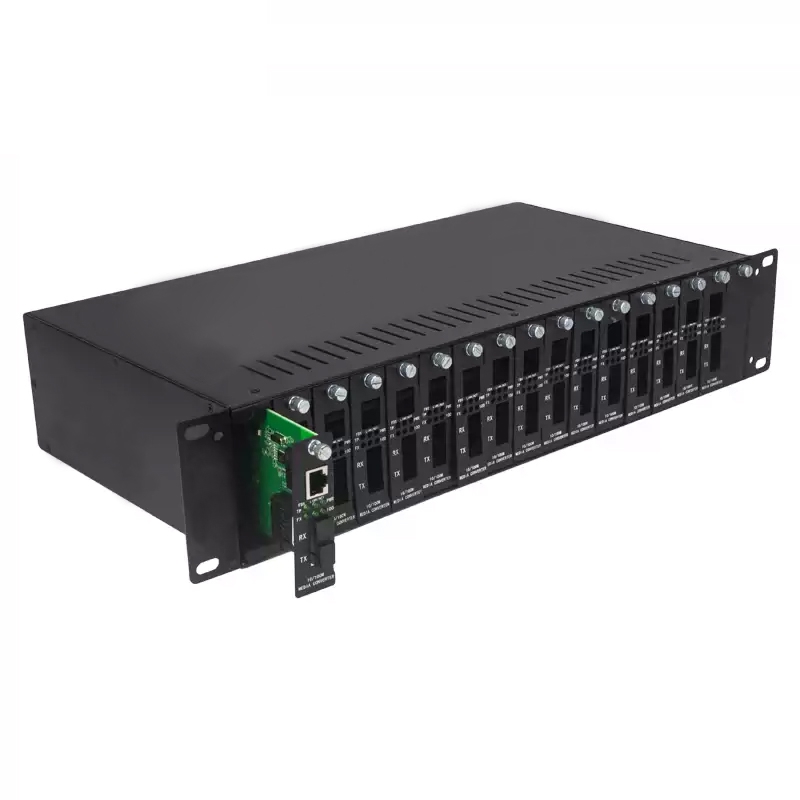

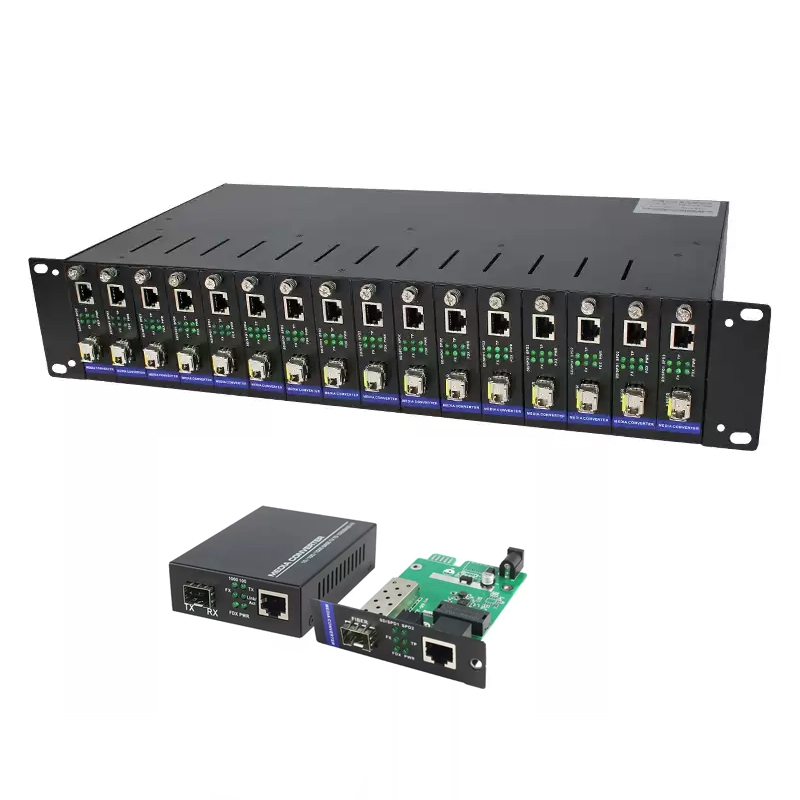

    HZT-2U-FMC-16S is a standard 2U Chassis-based Media Converters include a number of independent media converters and a chassis capable of housing upto 16 media converters.All converters are individually secured into the chassis and can be hot-swapped for maximum connection reliability.  The Chassis is a standard 19 inch 2U rack mountable size, to save more spaces for fiber-optic wiring and ease to maintain of media converters.

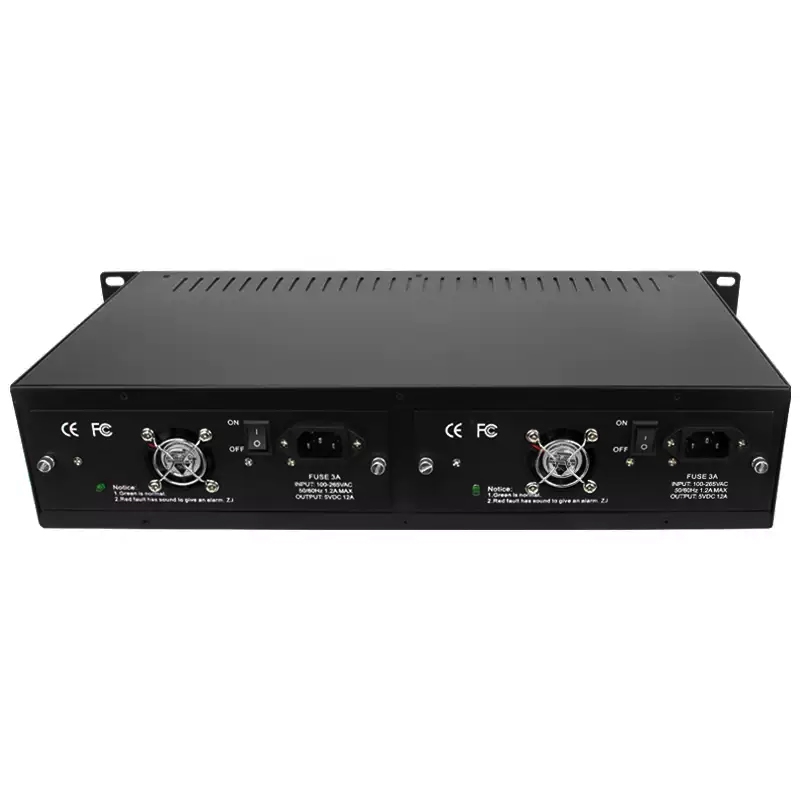

    HZT-2U-FMC-16S supports the converters or powers plugged and played. The type of single power or dual power can supply the power of the Rack.  Adopting dual power supply, the load of each power can be reduced and the life of the power would extend.  When one power supply is fail, the other one can still work independently.  The This rack mountable chassis is AC powered and FCC compliant. Providing a cost effective solution to fiber deployment.
    Feature
    ● 19’ 2U rack, easy for focus management
    ● 16 slots for media converter module
    ● Dual /single fiber with bi-direction optional
    ● Full/half duplex auto negotiation
    • Completely status LED indicator, easy to install and maintain
    ● Supports Fast Ethernet, Gigabit Ethernet, Single-mode and Multi-mode fiber media converters
    ● Supports Hot-swappable of Media Converters and Power Supplies
    ● Two redundant power supplies with two cooling fans
    ● Low power loss and good heat dissipation
    ● Stable performance, large capacity of power supply, easy for management and maintenance
    ● Management function optional
    Application
    ● LAN/WAN
    ● Access Control Systems
    ● 10/100/1000 Mbps Ethernet
    ● High Speed Computer Links

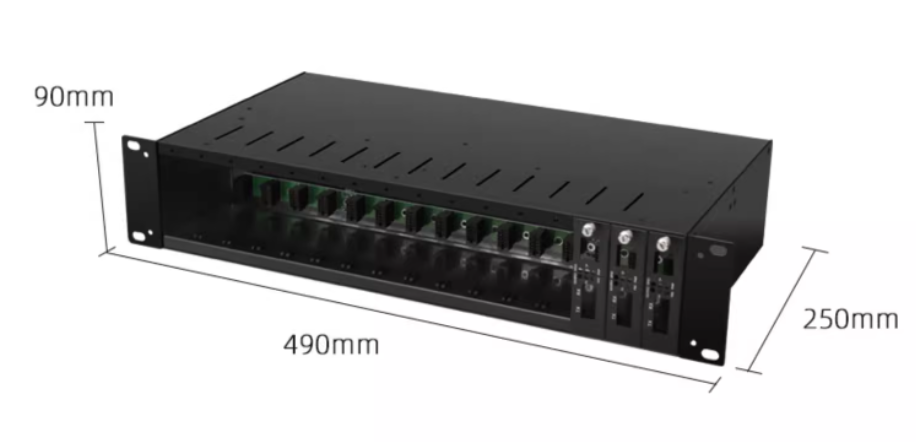

    Dimension

    Specification
    Items
    Parameter
    Product Name:
    16-Slot Media Converter Rack-mount Chassis for Card-Type Converters
    Capacity:
    16 Slots for up to 16 Media Converters
    Standard:
    IEEE 802.3 10BASE-T Ethernet
    IEEE 802.3u 100BASE-TX Fast Ethernet
    IEEE 802.3ab 1000BASE-T Gigabit Ethernet
    IEEE 802.3x Flow Control
    Ethernet Port:
    10/100Base-TX or 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption.
    Twisted Pair Transmission:
    10BASE-T: Cat3,4,5 UTP(≤100 meters)
    100BASE-TX: Cat5 or later UTP(≤100 meters)
    1000BASE-T: Cat5e or later UTP(≤100 meters)
    Optical Cable/ Distance:
    Multi-mode: 850nm /0-550M, 1310nm/ 0- 2KM.
    Power:
    Dual Power Supply
    Input: AC 100~240V 50/60Hz
    Output: DC12V
    Power Consumption
    Standby<25W, Full load<60W
    LED Indicator:
    Power: PWR(Green), Data: Link (Green), Fiber: L/A (Green)
    Installation:
    Desktop, Rack-mounted
    Cooling:
    Two internal cooling fans
    Dimensions:
    490*250*90mm
    Gross Weight:
    6.5KG
    Operating Temperature
    0 to 50℃
    Storage Temperature
    -20 to 70℃
    Humidity
    10 to 90% RH (non-condensing)
    Compliance:
    CE, RoSH
