10/100/1000Base-T to 1000Base-FX Single Fiber Media Converters

  • Description
  • Technical data
  • Make an inquiry
    Description
    10/100/1000M Gigabit media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3z and IEEE802.3ab standards, and supports two types of media network connections: 10/100/1000Base-T and 1000Base-SX/LX. It inter-converts electrical signals of 10/100/1000Base-T twisted pairs with optical signals of 1000Base-SX. It extends the network transmission distance 20km up to 80km via fiber optical cable. It supports transmission in single-mode single fiber.
    Feature
    ● Supporting inter-conversion between 10/100/1000Base-TX and 1000Base-SX
    ● Supporting full-duplex and half-duplex and its auto-sensed
    ● Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
    ● Supporting the transmission of extra-long VLAN packets
    ● Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets;
    ● Supporting STP to form a redundant network

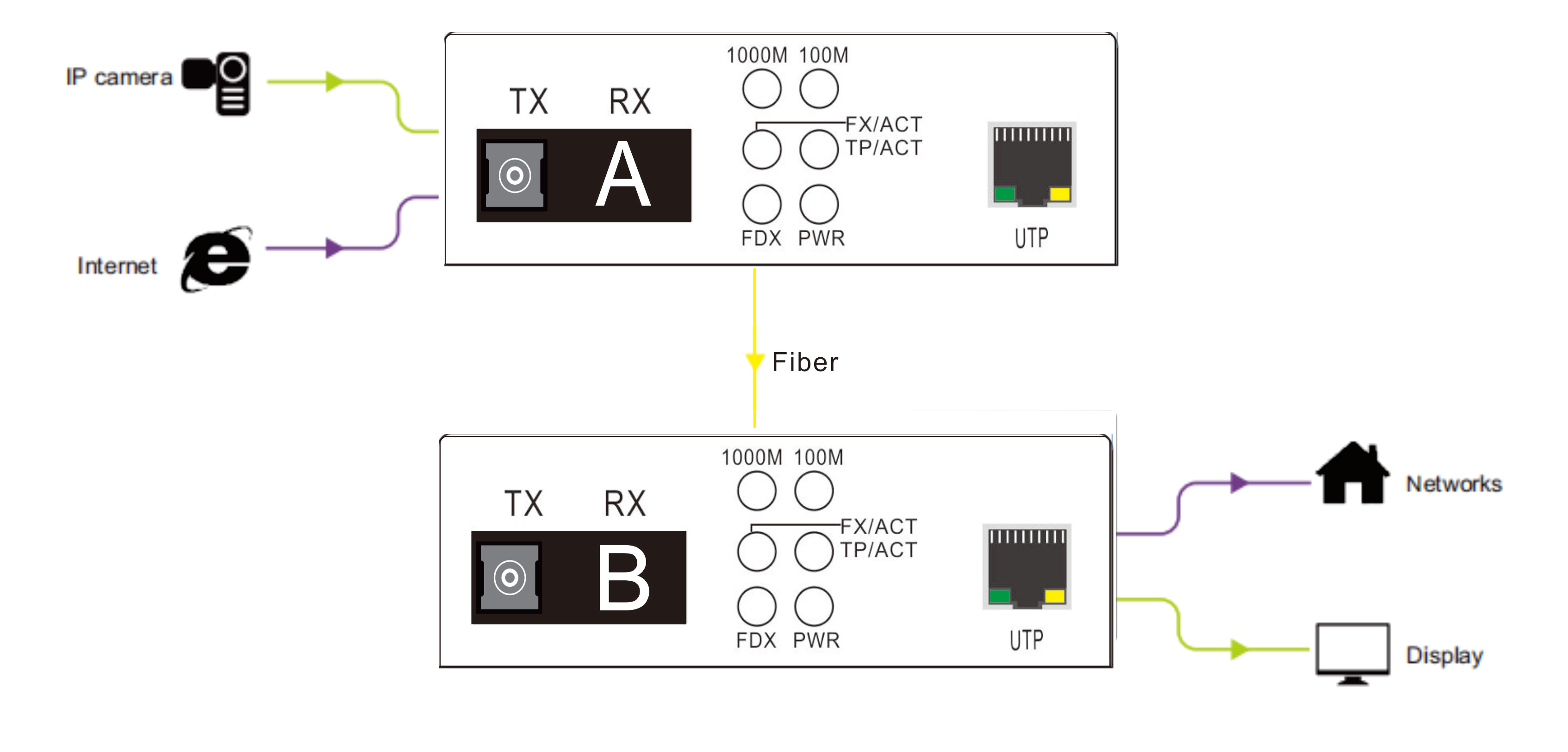

    Connection Diagram

    Specification

    Parameter

    Specifications

    Standards  :

    IEEE802.3ab 1000Base-T,

    IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,

    IEEE802.1qVLAN,IEEE802.1p QoS,

    IEEE802.1d Spanning Tree

    Fiber port :

    Data Rate:1000M

    Connector:LC as default, SC/FC/ST (optional)

    Distance:

    Single-mode Fiber 3km; 20km;40km;60km;80km;

    Wavelength:1310nm/1550nm;1490nm/1550nm

    Optical :

    Transmitting optical power : -3db ~ -8db

    Receiving sensitivity : >-28db

    Copper port :

    Data Rate:10/100/1000M

    Connector:RJ45

    Category-5 twisted pairs: 100m

    Performance :

    Conversion Means:Media conversion

    Delay time:<10us

    Back Bandwidth:4Gbps
    MAC address Size:16Kbit

    Packet Buffer Size:1Mbit

    LED Indicators :

    PWR (power supply)

    FX/ACT (optical link action)

    TP/ACT (twisted pair packet forwarding)

    TP LINK1000 (twisted pair link1000M)

    TP LINK100 (twisted pair link 100M)

    Electrical&Mechanical :

    Input power Requirements:DC5V@1A

    Power Adapter:AC100V~240V

    Power consumption:<5W

    Dimensions:26mm (H) * 70mm (W) * 94 mm (D)

    Weight:0.4kg(External power supply)

    Environmental :

    Operating Temperature:-20ºC~+75ºC

    Storage Temperature:-40ºC~+85ºC

    Relative Humidity:5%~90%(no-condensing)

    MTBF:>100,000 hours
