4K@30Hz Displayport To Fiber Extender

  • Description
  • Technical data
  • Make an inquiry
    Description
    Displayport To Fiber Extender includes a transmitter and areceiver, which is a high-speed, HDCP compliant fiber optic transport systemcapable of extending 4K/2K Displayport over fiber cable while maintainingflawless image quality. An Displayport input from a source device such as aset-top box or Blue-Ray player is converted into light pulses by an opticaltransmitter module for transmission over fiber optic. On the display side, anoptical receiver module converts the light pulses back to anDisplayport signals .

    The Displayport Fiber OpticExtender supports optical links using either multi-mode or single-mode fiber.These features make the equipment a powerful solution for digital displayapplications that require flawless signal quality over extremely long cableruns.
    Feature:
    1.Supports 720p/60Hz, 1080i/60Hz, 1080p/30Hz,1080p/60Hz, 1080p/120Hz，1920x1200，2560x1440，Ultra-HD4K (3840x2160@30Hz)

    2.Maxextension distance 300M(MM fiber)/10KM(SM fiber)

    3.Supports HDCP，DPCD，DDC2B

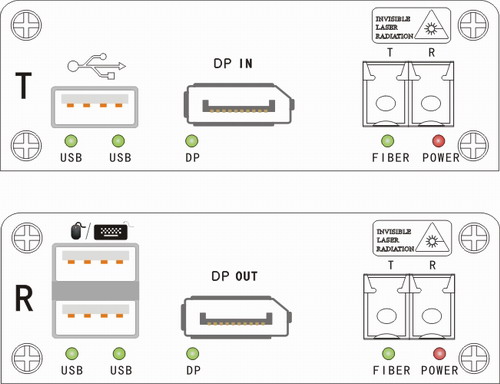

    Panel Diagram

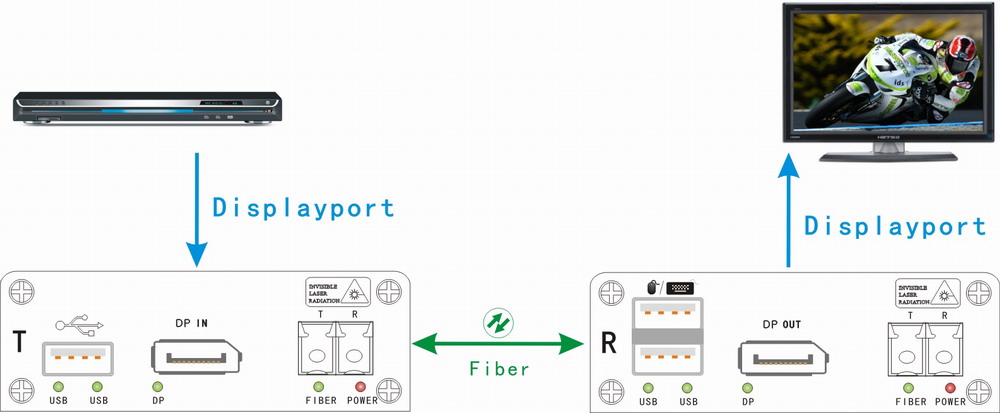

    Connection Diagram

    Specification
    Optical
    Optical Transmitter :
    Laser Source: 1310nm / 1550nm
    Optical Receiver :
    PIN Photo Diode O/E Converter
    Fiber Cable Type / Max. Length :
    OM3   MMF 300 meters,
    9/125μ single-mode optical fiber 10KM
    Displayport
    Compliance :
    Displayport V1.1
    Maximum Video Bandwidth :
    10.8Gbps
    Digital Audio Support :
    Dolby Digital, Dolby   Digital Plus, Dolby True HD and DTS-HD Master Audio
    Supported HDTV Formats :
    Supports all HDTV   resolutions including 1080p, 2K and 4K (UHD) formats
    Supported Resolution :
    720p/60Hz, 1080i/60Hz, 1080p/30Hz,1080p/60Hz, 1080p/120Hz，1920x1200，2560x1440，Ultra-HD 4K (3840x2160@30Hz)
    Connections:
    Displayport :
    20-pin DisplayPort Female Connectors
    Optical Input / Output :
    Female LC optical connectors
    Mechanical:
    Construction :
    Extruded Aluminum enclosure with black anodized finish
    Dimensions :
    104 mm x 104 mm x 28 mm
    Weight :
    700g per pair
    Power Source :
    Both Tx and Rx units   must be powered using the supplied external AC power adapters
    External AC Power Adapter :
    Input: 100~240VAC /   50-60Hz, 0.5A Output: 5VDC, 2.0A
    Maximum Power Consumption :
    TX Unit: 3.5   watts    RX Unit: 3.5 watts
    Operating Temperature :
    0° to +50° C
    Storage Temperature :
    -20° to +70° C
    Humidity (storage / operating) :
    10% to 90%   (non-condensing)
    MTBF:
    >100,000 hours
