Description

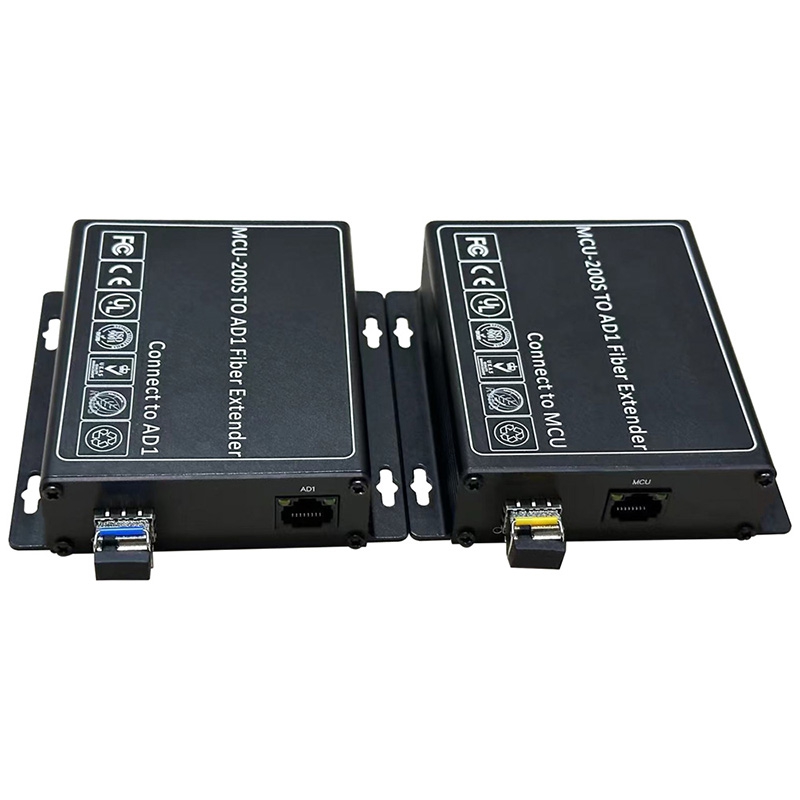

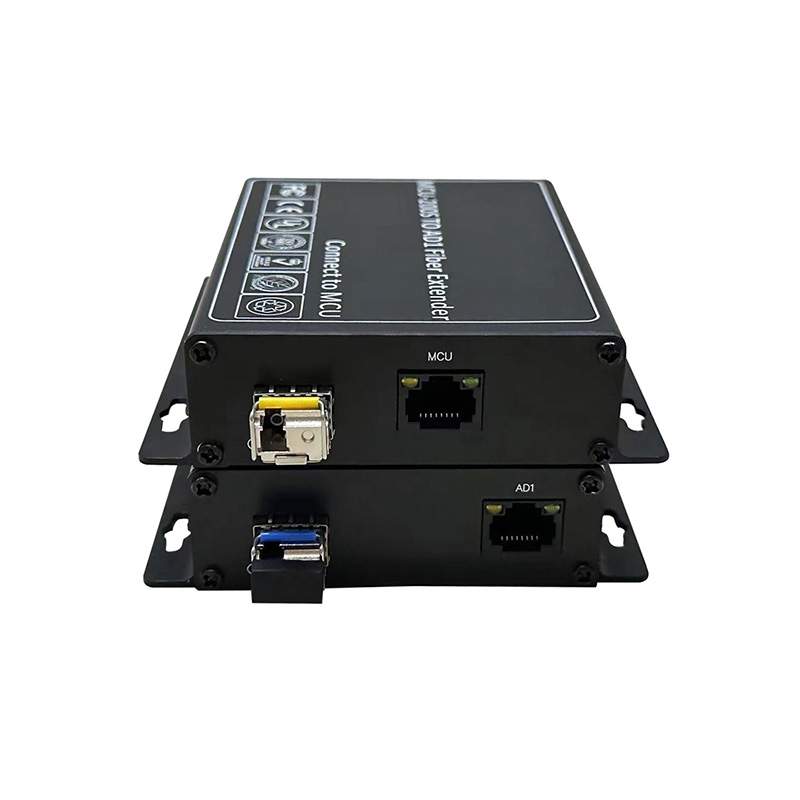

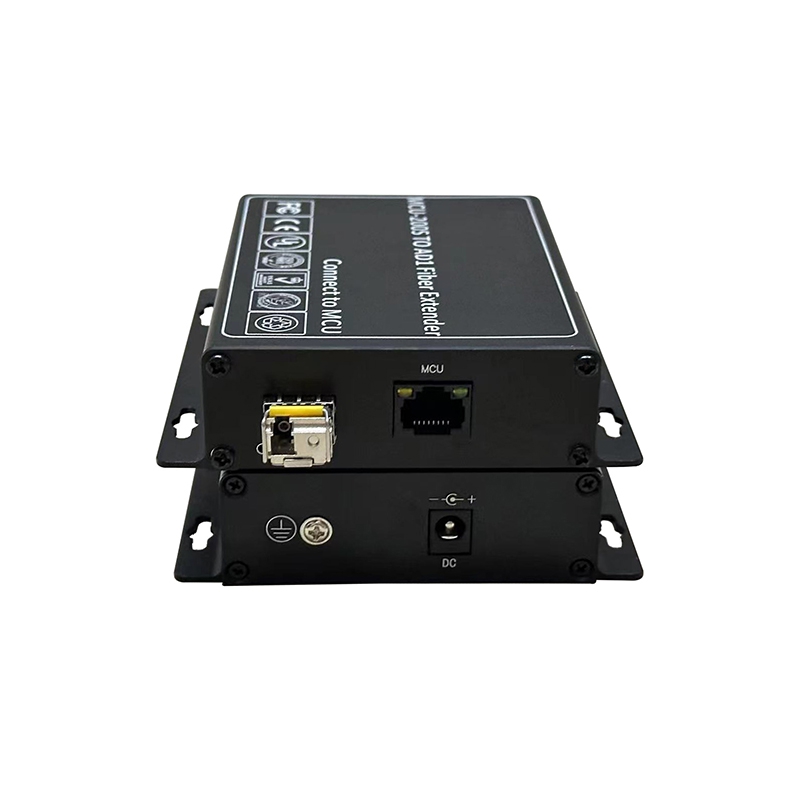

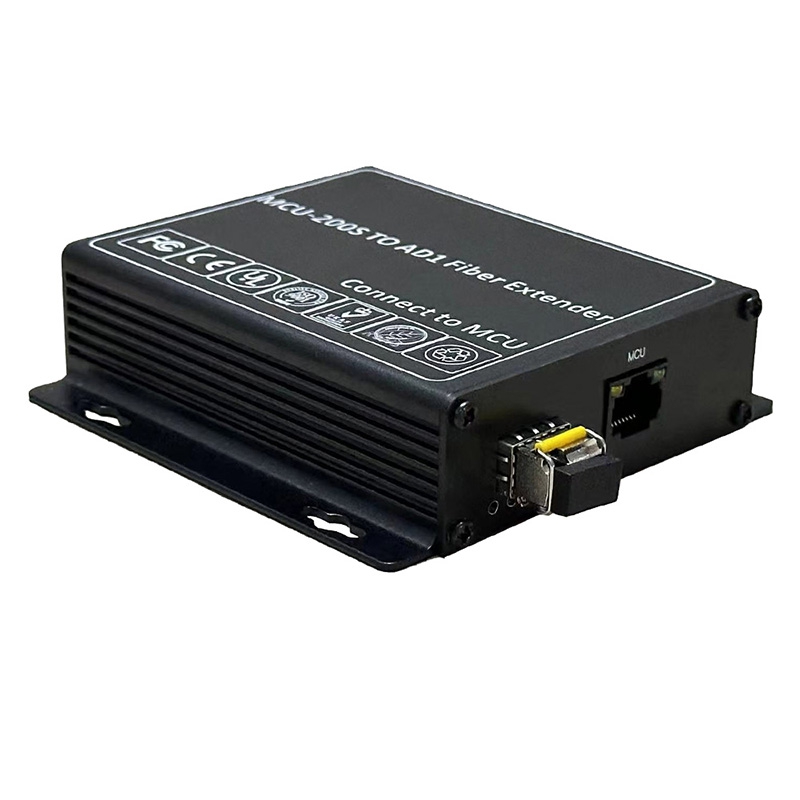

HZT MCU200S TO AD1 Fiber Extender mainly Solve the problem from Datavideo MCU200S to AD1 connection. It can extend the distance of 0-10KM from MCU200S to AD1 through a single LC fiber cable. All the interface apply to Datavideo interface definition.
Technique Parameter
|
Fiber Optical
|
|
Wavelength:
|
1260~1550nm
|
|
Output Power:
|
-5~0dBm
|
|
Optical fiber:
|
Single mode Fiber
|
|
Rx sensitivity:
|
-18dBm~0 dBm
|
|
Optical connector:
|
Single LC or Duplex LC optional
|
|
Distance:
|
0~10KM (SM Default)
|
|
Remote Signal
|
|
Connector :
|
RJ45 Connector
|
|
Standard:
|
Support DATAVIDEO Remote protocol
|
|
Number of Transmitter Channel:
|
1-ch RJ45 input, Connect AD1
|
|
Number of Receiver Channel:
|
1-ch Sony RJ45 output, Connect MCU-100S or MCU200S
|
|
General index
|
|
Transmitter power supply:
|
DC5V-12V
|
|
Receiver Power supply:
|
DC5V-12V
|
|
Power consumption
|
<5 w
|
|
Net weight:
|
Approax.0.5 KG /pair
|
|
Dimension :
|
104*104*10mm
|
|
Case Material:
|
Aluminum Alloy
|
|
Work Temp:
|
-20°C to 55°C
|
|
Storage Temp:
|
-20°C to 70 °C
|
|
humidity:
|
0 ~ 95% (non-condensing)
|
