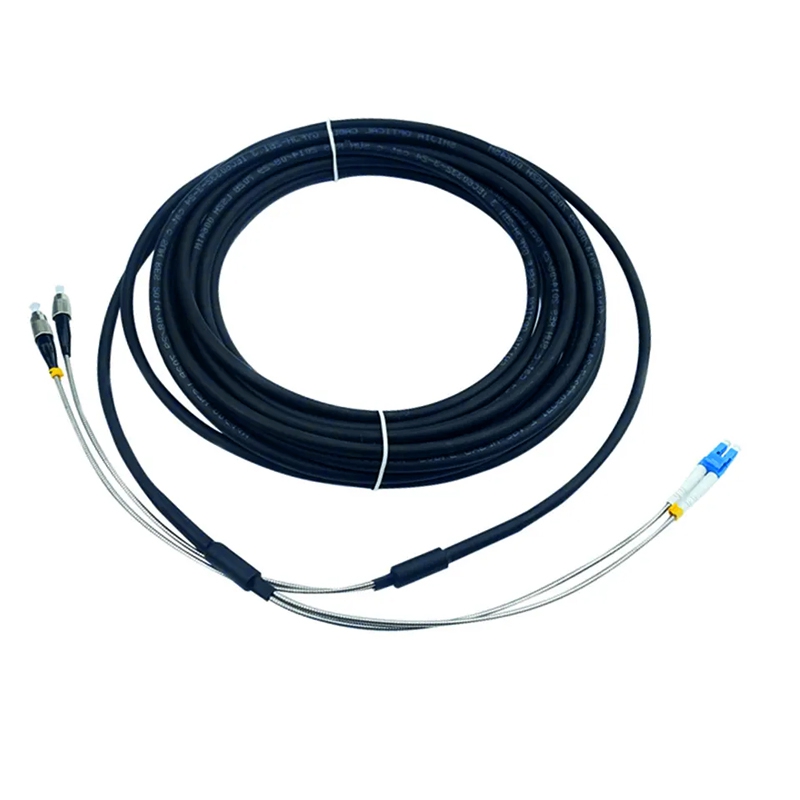

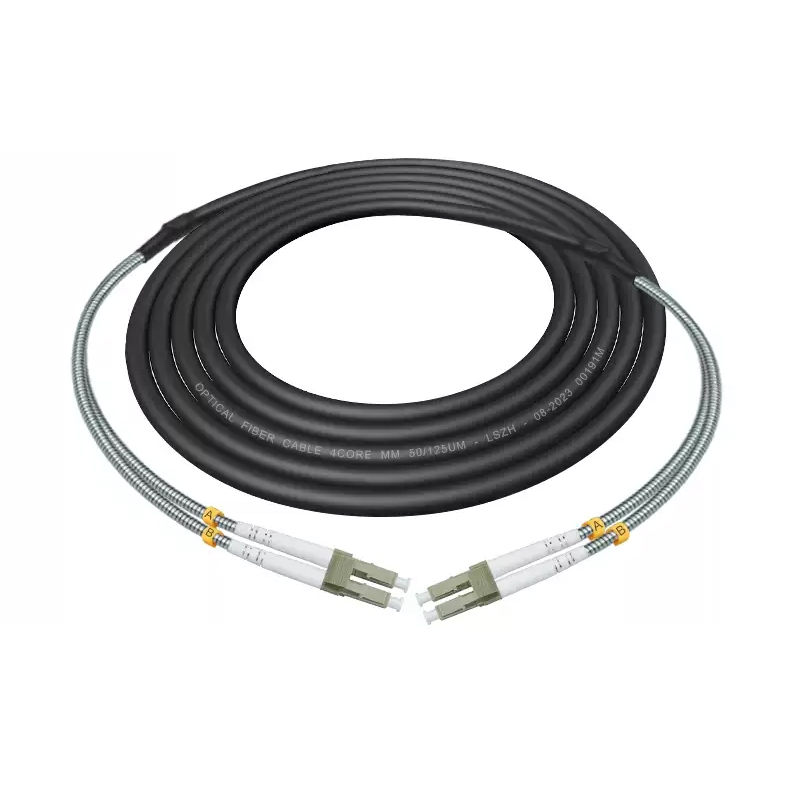

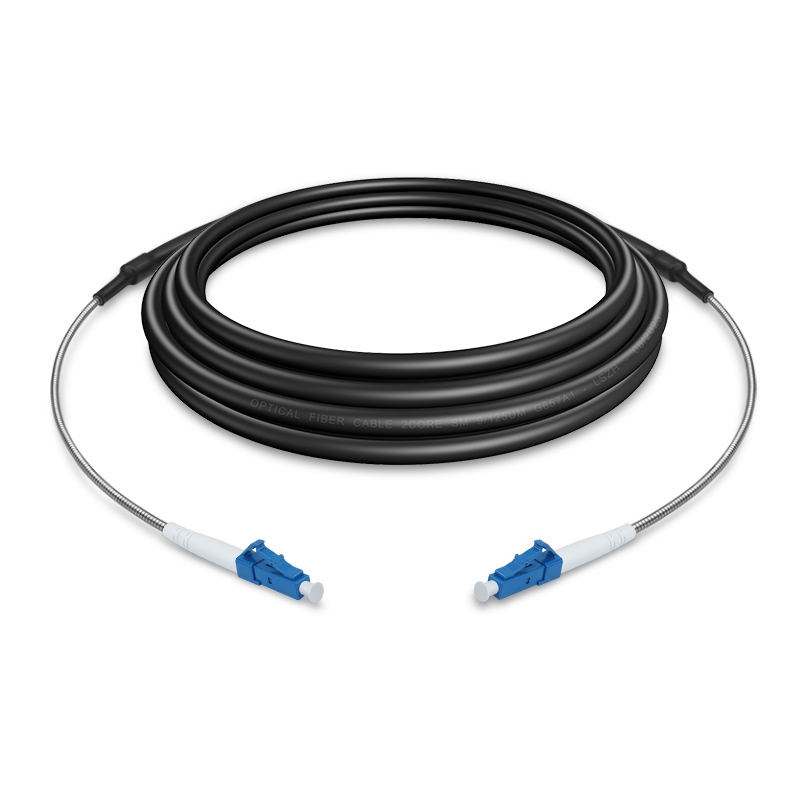

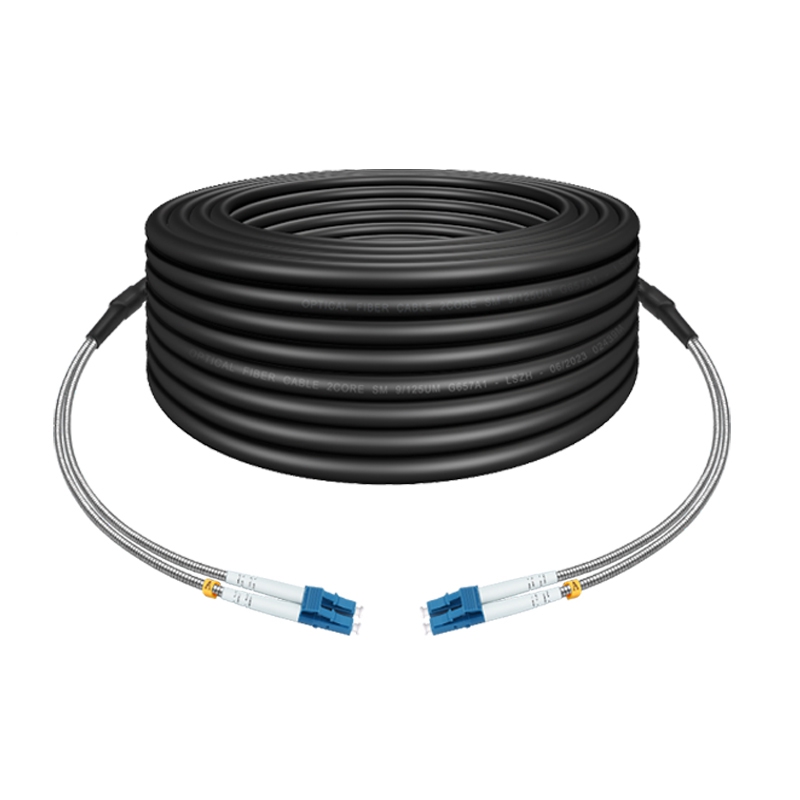

FTTA CPRI Fiber Optic Cable 2 Core LC/UPC- LC/UPC Duplex Armoured outdoor patch cord cable

  • Description
  • Technical data
  • Make an inquiry
    Description
    CPRI Optic Patch Cord with flexible boots is the ideal design for outdoor fiber cable applications. Such product can meet the FTTA(fiber to the Antenna) program requirements for outdoor environment conditions. Especially in the 3G, 4G,5G Base station (BBU to RRU). CPRI fiber patch cable are rapidly becoming the standard connector interface.The bulkhead cutout allows for removal of transceiver through the bulkhead. And the cable is Water proof, dust proof and corrosion resistant.
    Product Feature
    ● The CPRI patch cords are used for outdoor RRU transmitting optical signal and remote fiber feeder etc;
    ● Standard Duplex LC connector, well connected with standard LC adaptor
    ● Available Single mode and Multimode
    ● IP67 protection, salt-mist proof, humidity proof, dust proof
    ● Low insertion/return loss, steady optical transmitting.
    ● Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
    ● 500cycles Mechanical life
    Features And Benefits
    ● Provides superior weather resistance for FTTA and other outdoor applications.
    ● Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
    ● Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
    ● Can be installs without special tooling
    ● Threaded style coupling
    ● Provides bend protection for installation and long term use
    ● Faster network roll out and customer installations
    ● 100% tested assemblies built in a controlled environment
    ● Lower cost deployment by utilizing plug and play solutions
    ● Custom built solutions with quick turnaround times
    Technique Paremeter
    Technique Parameter :
    Singlemode
    Multimode
    Fiber Count :
    1~24 Core
    Fiber Type:
    G657A1, G657A2, OM1, OM2, OM3, OM4, OM5
    Connector Side A:
    LC/UPC, (LC/APC, SC, ST,FC, PDLC, NSN, MINI SC Optional)
    Connector Side B:
    LC/UPC, (LC/APC, SC, ST,FC, PDLC, NSN, MINI SC Optional)
    Branch Material:
    SUS Spiral Tube for 50cm, other length can customized
    Insertion Loss:
    UPC Polish
    ≤0.30dB (0.1dB Typ.)
    ≤0.30dB (0.05dB Typ.)
    APC Polish
    ≤0.3dB (0.15dB Typ.)
    --
    Return Loss :
    UPC Polish
    ≥50dB
    30dB
    APC Polish
    ≥60dB
    -
    Attenuation :
    1310nm: ≤0.34dB/km
    1550nm: ≤0.20dB/km
    850nm: ≤3.0dB/km
    1300nm: ≤1.0dB/km
    Polarity :
    UPC or APC
    Cable Length :
    1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m, 30m … 300m or Customized
    Cable Diameter :
    7.0±0.2mm
    Cable Jacket Material :
    TPU, LSZH or PE,
    Cable Jacket Color :
    Black
    Durability :
    500 times
    Tensile Load :
    Long term: 400N, Short term: 800N
    Operating Temperature:
    -20℃ ~ +70℃
    Storage Temperature :
    -40℃ ~ +85℃
