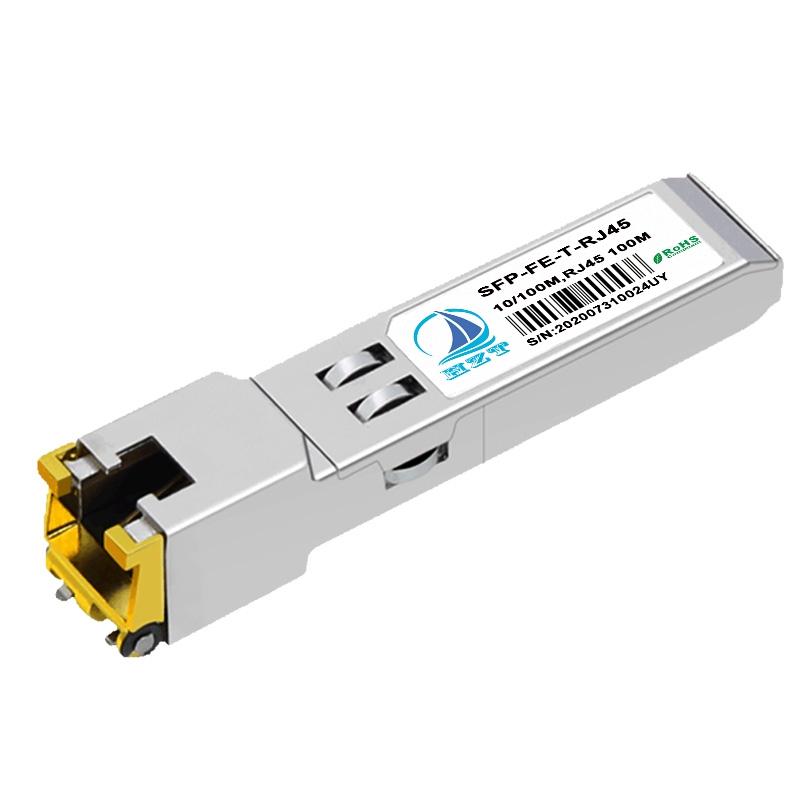

SFP-FE-T

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT‘s SFP-FE-T copper SFP transceivers are based on Fast Ethernet lEEE 802.3 standard and 100BASE-T standard and provide a quick
    and reliable interface for the FE application. in addition, they comply with the Small Form Factor Pluggable Multi-Source Agreement (MSA)
    Feature
    ● Up to 125Mb/s bi-directional data links
    ● Compliant with SFP MSAHot-pluggable SFP footprint
    ● Support 100BASE-T full duplex default operating mode
    ● Support 100BASE-T operation in host systems
    ● Auto-sense MDl/MDIX
    ● Single power supply 3 3V
    ● RoHS Compliant
    Dimension
    Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    10-12


    Data rate
    DR
    10

    100
    Mb/s
    1
    Operating Temperature
    Tc
    0

    70
    ℃

    Storage Temperature
    TSTO
    -40

    85
    ℃
    2
    Cable Length



    100
    M
    3
    supply current
    lcc

    190
    300
    mA

    Input Voltage
    Vcc
    3.14
    3.3
    3.46
    V
    1
    Maximum Voltage
    VMAX

    4
    V
    1

     Ordering Infromation
    Part Number
    Description
    Mark
    HZT-SFP-FE-T
    100BASE-T SFP Copper RJ-45 Connector 100m,commercial temperature 0 ℃ to 70℃

    If you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
