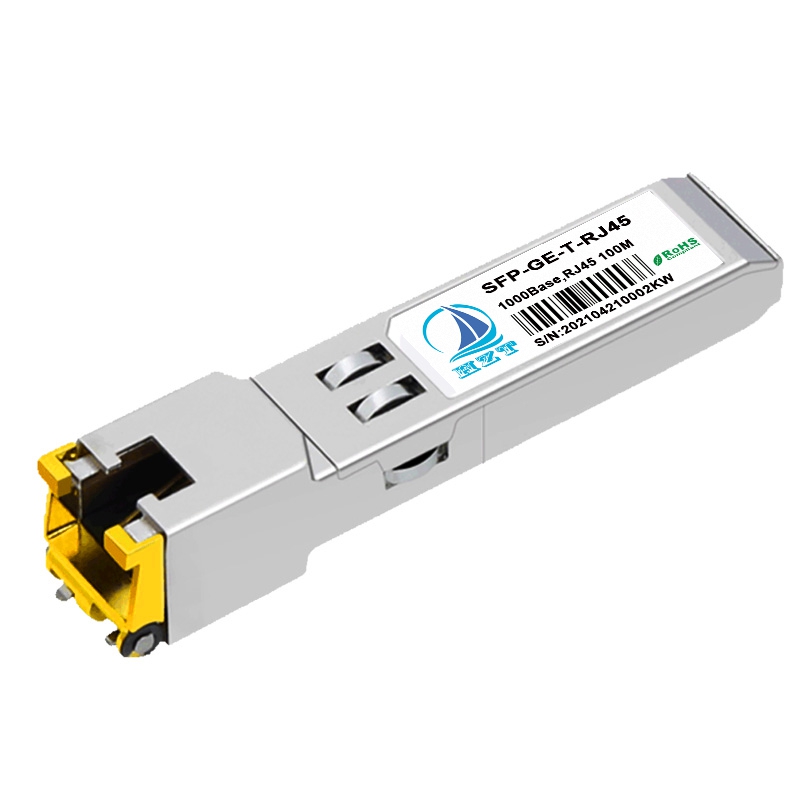

SFP-GE-T

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT‘s SFP-GE-T s a small. hotswappable Ry45 electrical port module. compliant with Gigabit Ethernet standards and SFP Multi-sourceAgreement (MSA) standards,supporting 10M/100M/ 1000M transmission rate. CAT5 class network cable transmission distance of up to 100meters, good electromagnetic compatilbility, compatible with various brands of hosts, widely used in data centers and enterprise networksAccess to the PHY chip registers is via the 12C interface. Meet the certification reguirements such as RoHs. There are 3 modes to choosefrom, AUTO mode supports 1000BASE-X auto-negotiation, FULL mode supports the LiNK status via the RX LOS pin, SGMll mode supporshosts with SGMll functionality.
    Feature
    ● Bidirectional data transfer capability up to 1.25Gb/s
    ● Supports 10/100/1000BASE-T operation in host systems with SGMll interface
    ● Compliant with lEEE 802.3Z, IEEE 802.3u, IEEE 802.3ab
    ● SFP MSA Compliant
    ● With hot plug function
    ● RJ-45 interface
    ● No suppression by default, software is not configurable
    ● MDI/MDIX adaptation
    ● Single power supply 3 3V
    ● RoHS Compliant
    Dimension
    Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    10-12


    Data rate
    DR
    10

    1000
    Mb/s
    1
    Operating Temperature
    Tc
    0

    70
    ℃

    Storage Temperature
    TSTO
    -40

    85
    ℃
    2
    Cable Length



    100
    M
    3
    supply current
    lcc

    320
    375
    mA

    Input Voltage
    Vcc
    3.14
    3.3
    3.46
    V
    1
    Maximum Voltage
    VMAX
    -0.5

    4
    V
    1

     Ordering Infromation
    Part Number
    Description
    Mark
    HZT-SFP-GE-T-AUTO-D1
    1000BASE-T SFP Copper RJ-45 Connector 100m Auto Negotiation default mode

    HZT-SFP-GE-T-FULL-D1
    1000BASE-T SFP Copper RJ-45 Connector 100m not support Auto Negotiation default mode
