SFP-10G-T

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT‘s SFP-10G-T is a smal hotpluggable RJ45 electrical port module, compliant with 10 Giga-bit Ethernet standards and SFP Multi-Source Agreement (lMSA) standards, supporting 10G transmission rate,transfer distances up to 30 meters using Cat 6a/7 network cable, it is alsobackward compatible with 10M/100M/1000M‘2.5G/5GBase-T applications. Low power consumption (2.3W TYP @ 10Gbps 30m), compatible with vanious brands of hosts, widely used in data centers and enterprise networks. Comply with certification requirements such as RoHS 2.0Reach, CE and FCc, The product is based on a standard Ry45 interface, compatible with traditional nehvorks the Ethernet transier rates canbe increased without changing existing wiring. it is a low cost alternative to Ethernet upgrades.
    Feature
    ● Supports 10GBase-T using 30m Cat 6a/7 cable
    ● Supports 5GBase-T using 70m Cat 5e cable
    ● Supports 2.5GBase-T using 100m Cat 5e cable
    ● Supports 10/100/1000Base-T using 100m Cat 5e cable
    ● Low power consumption (2.3W TYP @10Gbps 30m)
    ● Auto-sense MDl/MDIX
    ● Compliant with lEEE 802.3az
    ● Compliant with SFF-8431 and SFF-8432 MSA
    ● Compliant with RoHs 2.0, Reach, CE, FCC standards

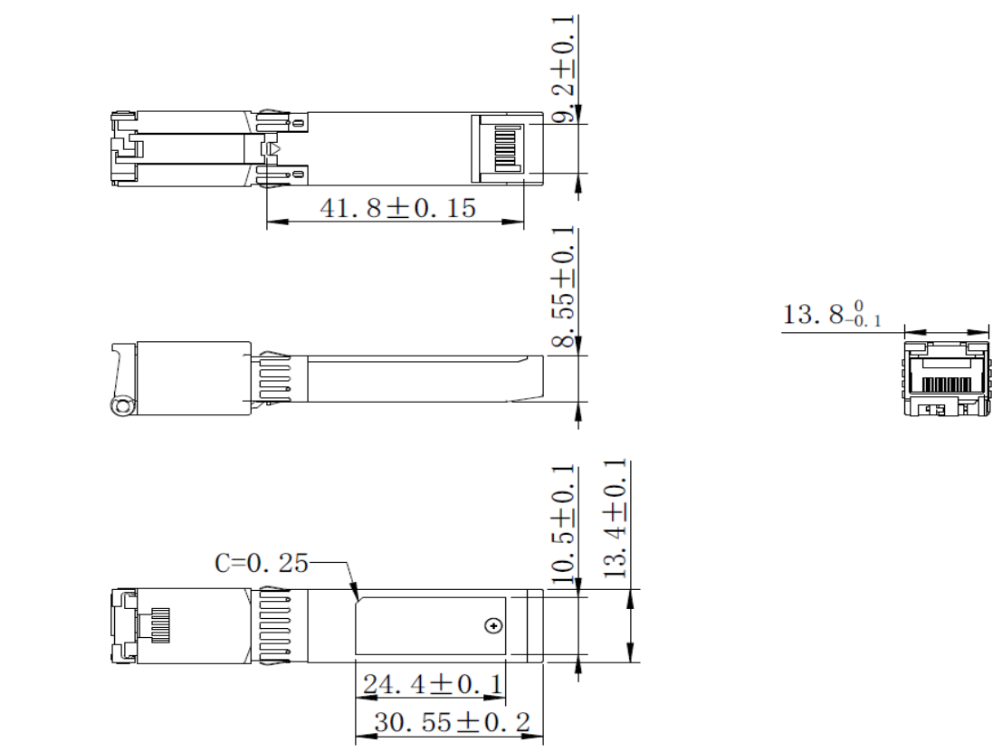

    Dimension
    Specification
    Parameter
    Symbol
    Min
    Typ
    Max
    Unit
    Remark
    Bit Error Rate
    BER


    10-12


    Data rate
    DR

    10

    Gb/s
    1
    Operating Temperature
    Tc
    0

    70
    ℃
    2
    Storage Temperature
    TSTO
    -40

    85
    ℃
    3
    supply current
    lcc

    700
    750
    mA

    Input Voltage
    vcc
    3.14
    3.3
    3.46
    V

    Maximum Voltage
    VMAX
    -0.5

    4
    V
    4
    surge Current
    lsurge


    30
    mA

     Ordering Infromation
    Part Number
    Description
    Mark
    HZT-SFP-10G-T
    10GBase-T SFP+ Copper RJ-45 Connector
    1
