Optical
|
|
|
Wavelength:
|
1310nm&1470nm~1610nm
|
|
Output Power:
|
-14~ -8dBm /-5~0dBm
|
|
Optic fiber:
|
50/125u multimode，62.5/125u multimode，9/125u single mode
|
|
Rx sensitivity:
|
-30dBm
|
|
Optical connector:
|
FC /ST /SC (optional)
|
|
Distance:
|
0~2000M (MM) / 0~20KM/40KM/60KM/80KM (SM)
|
|

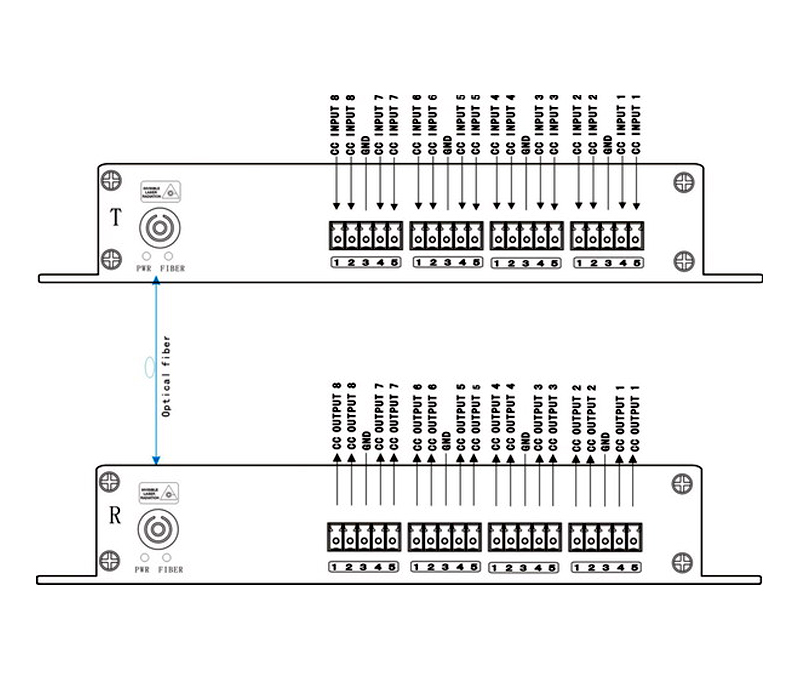

Contact Closure Signal
|
|
|
Input/Output Connector:
|
Terminal Blocking Type
|
|
Signal Input:
|
Alarm, Binary input, support TTL、RS-232/422/485 or passive dry Contact Closure
|
|
Signal Output:
|
Arbitrary alarm, Binary output, support TTL、RS-232/422/485 or relay output
|
|
Number of Transmitter Channel:
|
8-ch Contact Closure input
|
|
Number of Receiver Channel:
|
8-ch Contact Closure output
|
|
Electrical & Mechanical |
|
|
Input Power Requirements:
|
DC 5V@2A
|
|
Power Adapter:
|
AC 90V~240V
|
|
Power Consumption:
|
< 5W
|
|
Stand-Alone Dimensions:
|
175mm × 154mm × 28mm
|
|
Environmental |
|
|
Operation Temperature:
|
-20°C ~ +70°C
|
|
Storage Temperature:
|
-40°C ~ +85°C
|
|
Relative Humidity:
|
0% ~ 95% (non-condensing)
|
|
MTBF:
|
>100,000 hours
|
 |
