Cascading 4-CH Bi-directional 3G-SDI/12G-SDI to Fiber Converter

  • Description
  • Technical data
  • Make an inquiry
    Description

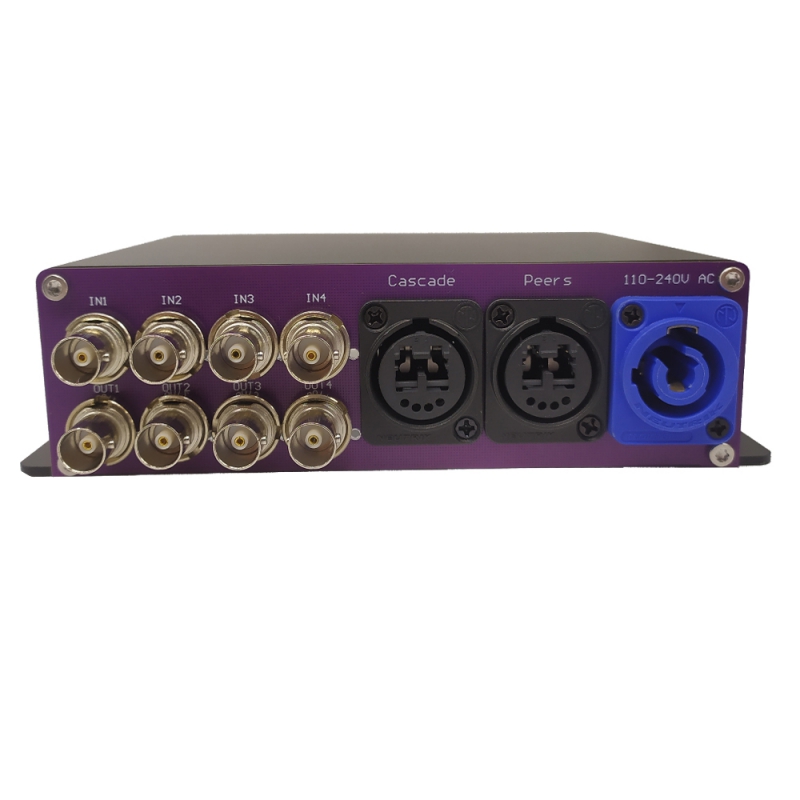

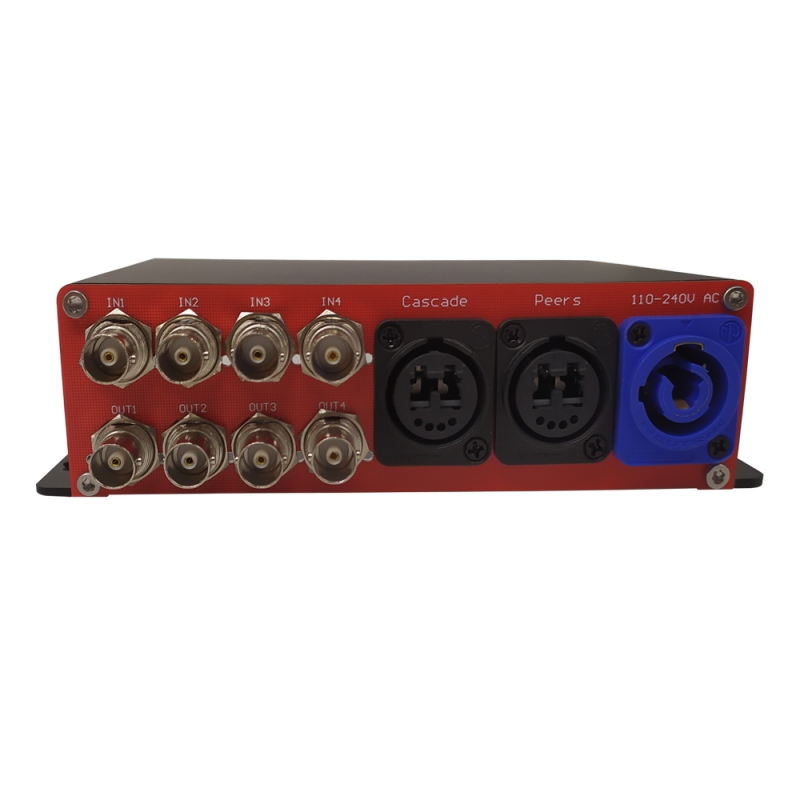

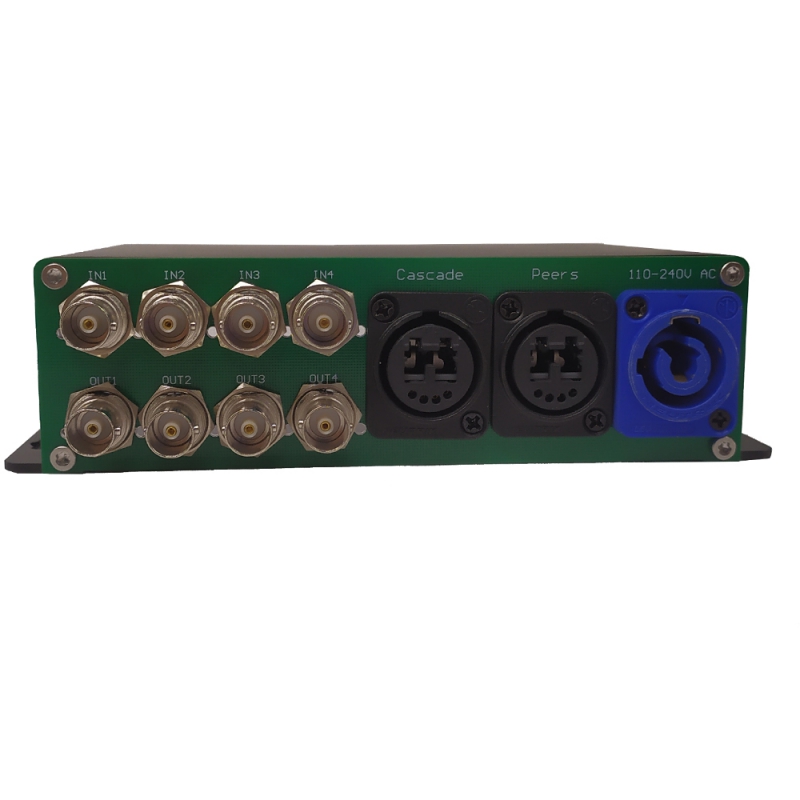

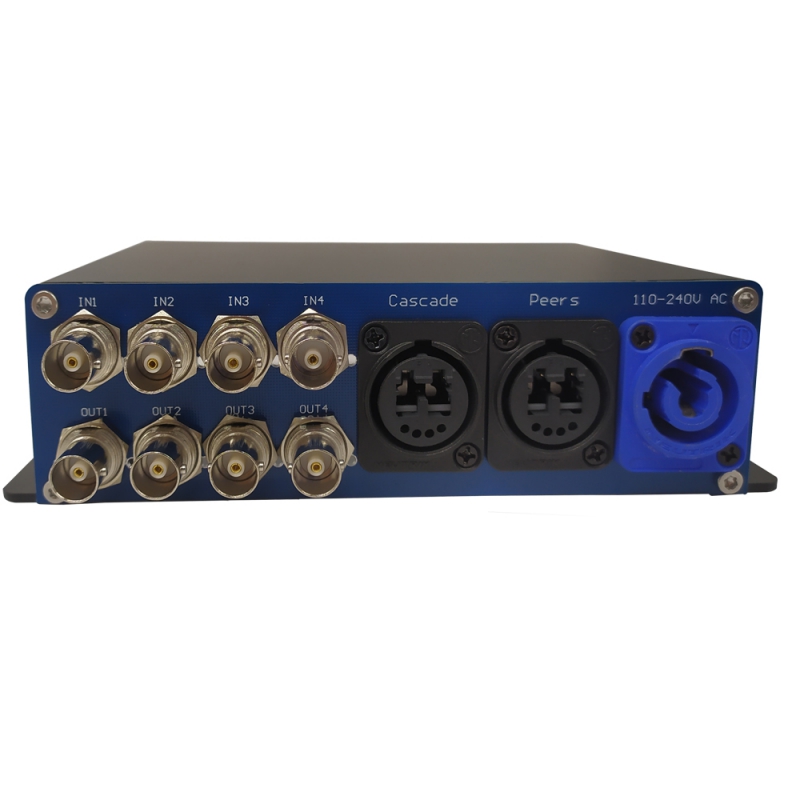

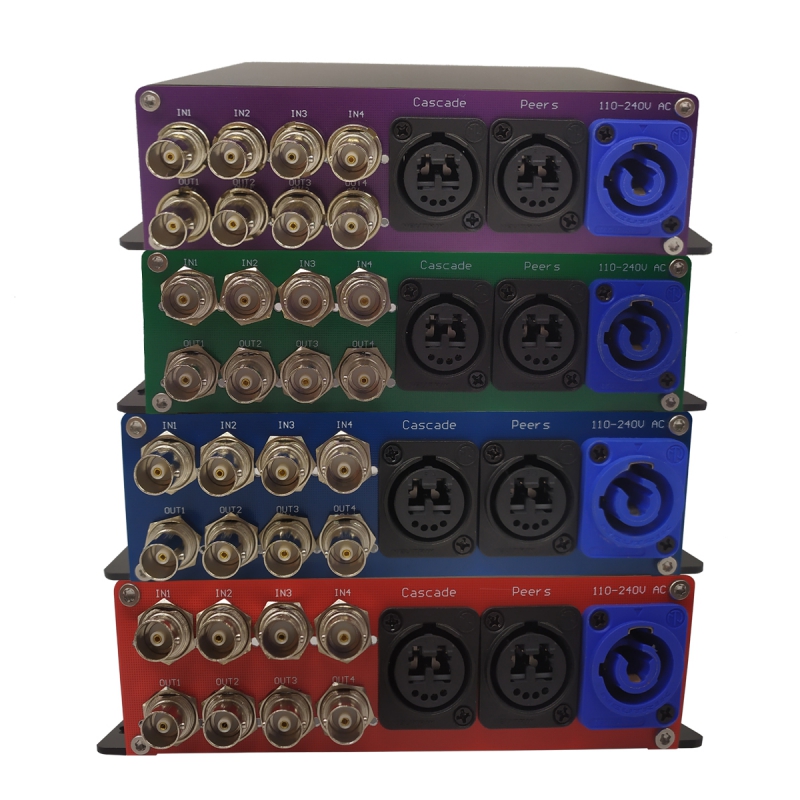

    HZT Technology  Cascading 3G/12G-SDI to Fiber Converter is a new product for boardcasting industy in 2024. It can transmits 4-ch Two-way 3G-SDI or 12G-SDI Video through a Neutrik Cable or duplex LC cable. Each box can be used as an independent unit, and also as a cascade with 4 different color (Blue, Green, Purple and Orange.).  The maximum cascade capacity is 4 boxes. and Max Sends 16-ch Forward 3G/12G-SDI and 16-ch Reverse 3G/12G-SDI Video Signal. And With Neutrik PowerCom power connector, the power line can‘t be fall off when event production.
    Feature
    ● Support 4-ch BIDI 3G-SDI Video cascading fiber transmission
    ● Support 4-ch BIDI 12G-SDI Video cascading fiber transmission
    ● Support Neutrik PowerCom power connector
    ● Max cascade capacity 4 boxes
    ● Handle all Pathological patterns
    ● 3G-SDI Video: Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI 、 SMPTE-259M SDI ,  SD, HD, 3G,12G input auto identification,support three data rate 270Mbit/s - 1.48Gbit/s - 3Gbit/s;support 1080P 3Gbps HD-SDI format
    ● 12G-SDI: Supports SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M, and SMPTE 259M (C) Serial Digital Video Standards, Supports 270Mbit/s - 1.48Gbit/s - 3Gbit/s, 5.94Gbit/s, and 11.88Gbit/s Serial Data Rate
    ● Support 0-10Km on single Mode Fiber transmission
    ● 1260~1610nm CWDM wavelengths optional.
    Application
    ● 12G/3G/HD-SDI monitor system;
    ● Live on optical fiber transmission;
    ● TV remote studio;
    ● The military and public security command and control
    ● Event production;
    Specification
    Fiber Optical
    Wavelength:
    1260~1610nm
    Output Power:
    -5~0dBm
    Optical fiber:
    Neutrik opticalCON DUO or Duplex LC
    Rx sensitivity:
    -18dBm~0 dBm
    Optical connector:
    Neutrik opticalCON DUO
    Distance:
    0~5KM   (SM Default)
    3G/HD-SDI Video
    Support :
    SDI level A and Level B
    SDI Signal Standard:
    SMPTE 424M, SMPTE 292M, SMPTE 259M
    Data Rates:
    270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization:
    Automatic cable EQ (Belden 1694A cable)
    250m @ 270Mbit/s,
    140m @ 1.5Gbit/s,
    80m @ 3Gbit/s
    Connector:
    BNC 75 Ohm
    Number of Transmitter Channel:
    4-ch 3G-SDI Video Input + 4-ch 3G-SDI Video Output (or 8-ch Forward 3G-SDI or customized)
    Number of Receiver Channel:
    4-ch 3G-SDI Video Input + 4-ch 3G-SDI Video Output (or 8-ch Reserve 3G-SDI or customized)

    General index

    Transmitter power supply:
    Neutrik powerCON Connector, AC 90~240V input ,
    Receiver Power supply:
    Neutrik powerCON Connector, AC 90~240V input ,
    Power consumption
     15 w
    Net weight:
    Approax.1.5 KG /pair
     Dimension :
    168 ×154 × 48 mm
    Case Material:
    Aluminum Alloy
    Work Temp:
    -20°C to 55°C
    Storage Temp:
    -20°C to 70 °C
    humidity:
    0 ~ 95% (non-condensing)
