Description

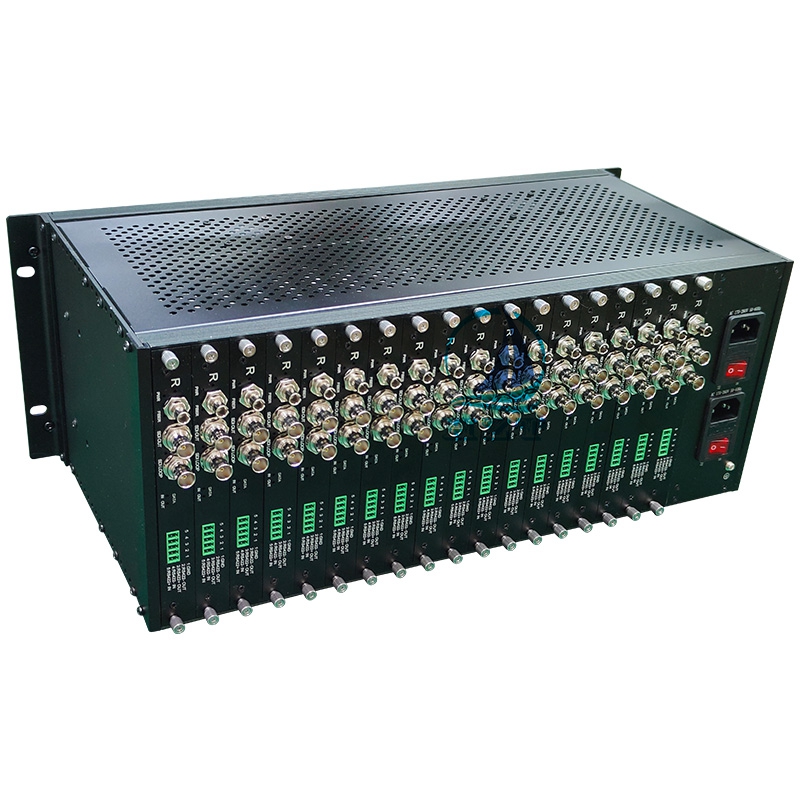

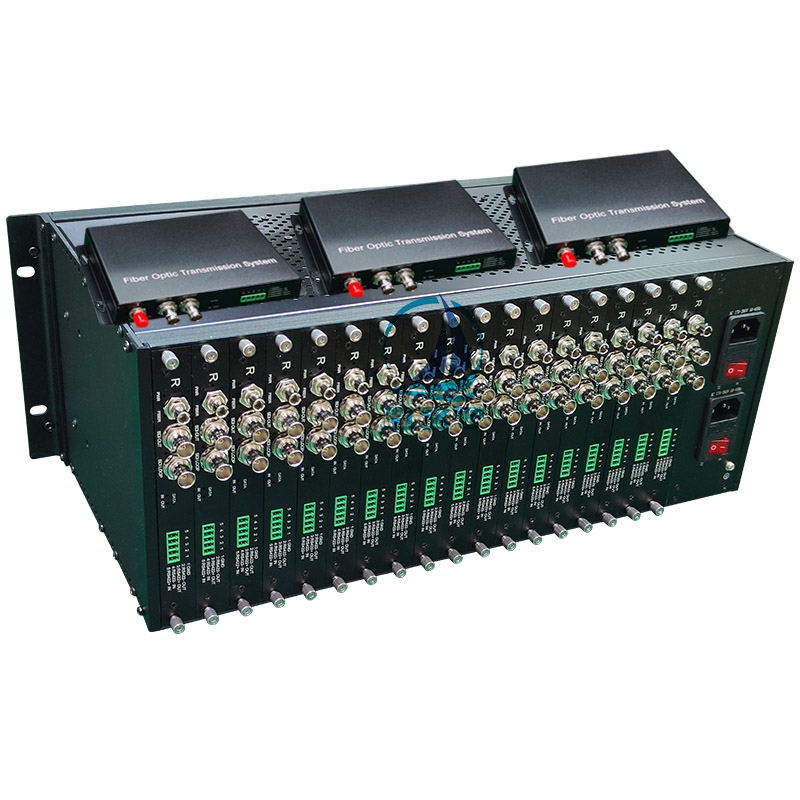

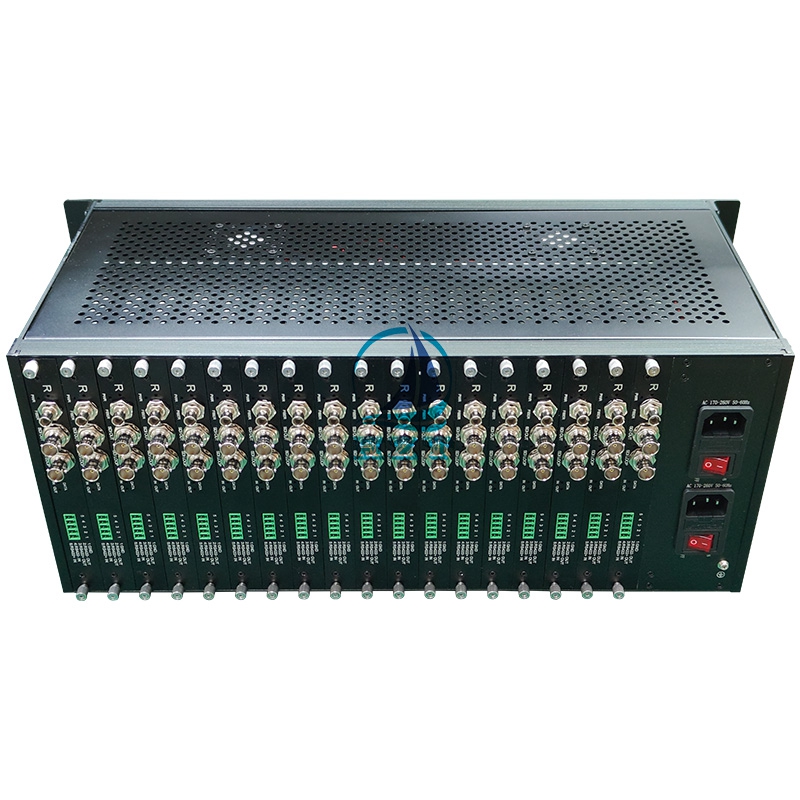

HZT Technology 16 Slots 3G-SDI Video+ Data to Fiber Converter Rack Chassis centralized management is an ideal Solution for Multiplex 3G-SDI Fiber transmission in the field. It is a standard 19-inch 4U height rack-mount chassis which can be suitably mounted in the standard 19-inch rack. The chassis lets you install max 16 pcs 1-ch 3G-SDI Video+1-ch RS422 Data Fiber Converter Cards in an equipment rack . This provides for space saving, and the cabling will look neat. The chassis comes with its own universal AC to DC power supply. For maximum power availability, an optional redundant power supply is available for installation in the chassis.
Usually HZT Technology‘s Receiver Side connects the host computer, so the most effiect choice is to made the receiver Side with 2U Rack. 16 Solts ensure you can insert 16 pcs SDI Fiber converter cards into 2U Rack. without doubt the cards quantities depends on the actual requirement, if some slots are empty, you can add more cards only using a screwdriver. Operation is easy.
Feature
● Metal case, 19 inch rack standard , two-unit-height
● Support RS422 protocol, RS485/RS232 can be customized.
● Supports Rack Mounting installation
● House up to sixteen FR-6000 series media converter modules
● Modularized design with media converter modules, network management module, power supply modules
● Slide-in module on rear for AC/DC power modules
● Redundant power supply modules
● Hot swappable function for converter modules
● Equipped with cooling fans to ensure reliable operation
● Intelligent management to efficiently monitor your critical connections
