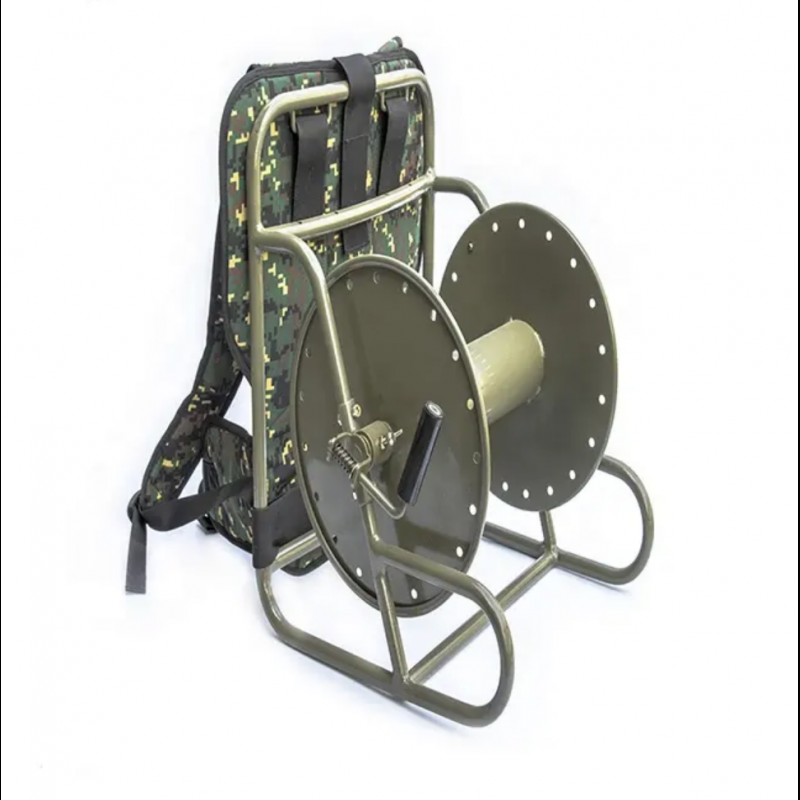

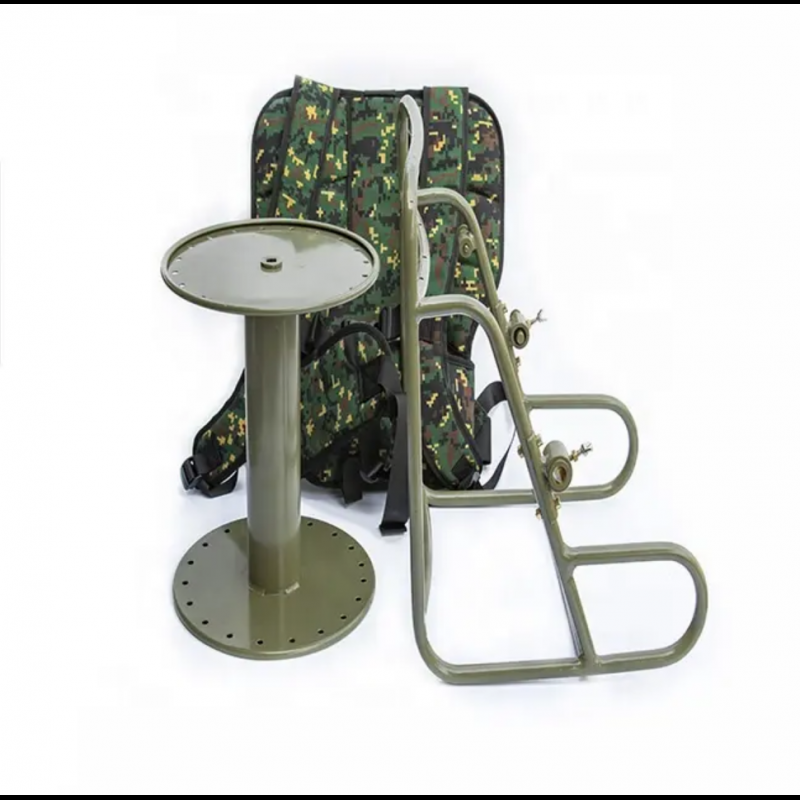

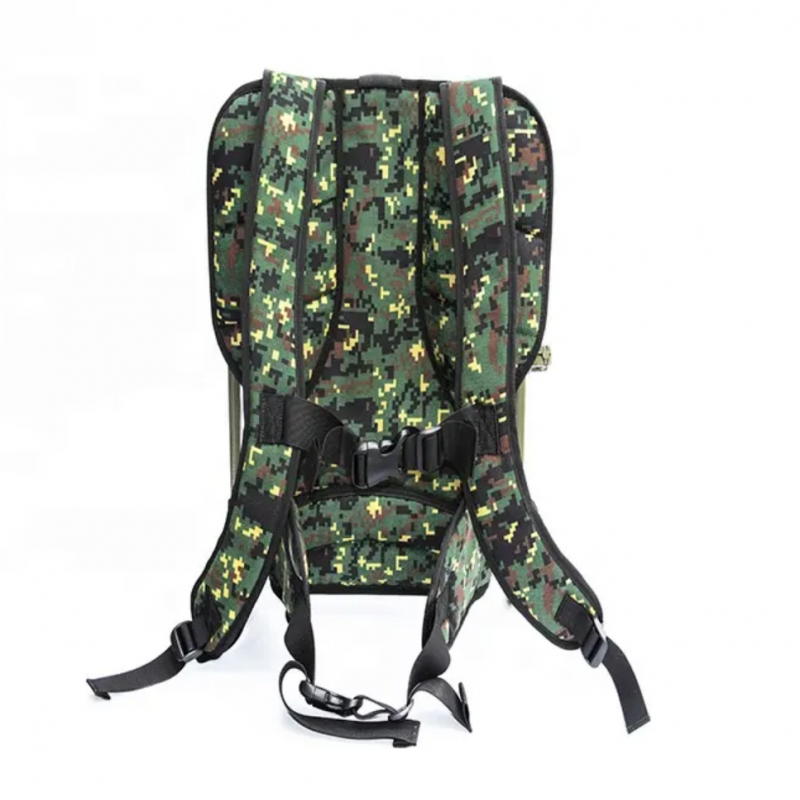

Fixed Wheel Stand Type Portable Tactical Fiber Optic cable Reel

  • Description
  • Technical data
  • Make an inquiry
    Description
    Portable field deployable tactical fiber optic cable reel has been optimized for using in harsh environments where mobilityand rapid deployment of the cable are very essential. This assembly is specifically designed for field deployableapplications. Paticularly, it can broadcast the communication for film crews to connect HDTV camera equipment with centralbroadcasting trucks about events like music concerts and sporting events. This deployable assembly includes a marcaddydrum, breakout modules with ruggedised tais at each end, choice of connectors, tactical cable and a high durabilityprotective conduit lP rated pulling sock.
    Feature
    Separate connector compartment for secure deployment
    Rugged design for indoor and outdoor use
    Highly resistant to shock and abrasion
    Galvanized Steel Reels are available either in Blue, Olive Drab or Black finish
    ● Hand reels & stackable storage reels with slotted divider discsReels delivered furnished with cable and connectorsCustom reel desian available
      Specification
    Items
    Parameter
    Model Number:
    LB-05
    Color:
    Army Green
    Feature:
    Portable
    Product Size:
    560*520*470mm
    Main reel Diameter
    Ø400mm
    Diameter of Axle
    Ø200mm
    Main reel‘swidth
    280mm
    Net Weight:
    8KG
    Gross Weight:
    15Kg
    Packing Size:
    500*520*620mm
    Material:
    Metal
    Cable‘s OD:
           3.0mm
       4.0mm
        5.0mm
        6.0mm
    7.0mm
       8.0mm
        9.0mm
       10.0mm
    Capacity:
    1800M
    1000M
    600M
    450M
    320M
    250M
    200M
    160M
