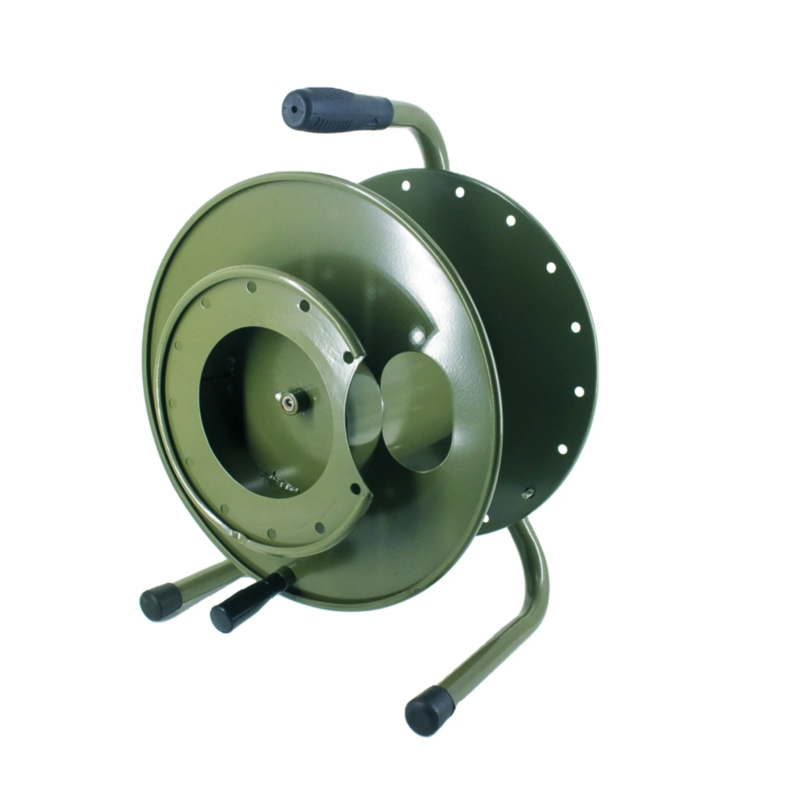

Portable Metal Cable Reel ST-03

  • Description
  • Technical data
  • Make an inquiry
    Description
    The mobile per-terminated armoured cable reel is developed for temporary field deployment where fiber connections are reguired. it comes ina portable cable reel for ease of transportation and deployment. The armoured cable is flexible and is able to withstand multiple usageswithout kinks. One end of the cable is fixed to the reel while the other end is colled freely for patching to the equipments. Generally these wilbe customized base on user‘s requirement so there are options of various cable and connector type with any cable length which then wildetermine the size of the reel.
    Feature
    ● Using flexible steel armour to protect optical fiber, making sure minimum damage
    ● Prevents damage from improper twisting, high resistance to crush and high tensile strength
    ●  Mechanical protection against pest and rodent
    ● Rotating reel for deploying and retracting of cable and comes with braking system
    ● Various connectors are available such as FC/SC/ST/MU/LCIPDLC/ MPO..
    ● Various cable are available, such CPRl cale, TPu Cable, Tactical cable,multicore indoor/outdoor cable..etc.
    Application:
    ● Military communication system
    ● Passive optical networks (PON)
    ● Coal, oil, natural gas, geological exploration
    ● Broadcast television, temporary communication and so on.
      Specification
    Items
    Parameter
    Model Number:
    ST-03
    Color:
    Army green/ black
    Feature:
    Portable
    Product Size:
    410*440*400mm
    Main reel Diameter
    Ø320mm
    Diameter of Axle
    Ø150mm
    Main reel‘swidth
    160mm
    Net Weight:
    4.5 KG
    Gross Weight:
    8Kg
    Packing Size:
    440*500*460 Wooden Carton
    Material:
    Metal
    Cable‘s ODl:
             3.0mm
       4.0mm
        5.0mm
        6.0mm
    7.0mm
       8.0mm
        9.0mm
       10.0mm
    Capacity:
    1000M
    550M
    300M
    240M
    180M
    130M
    100M
    80M
