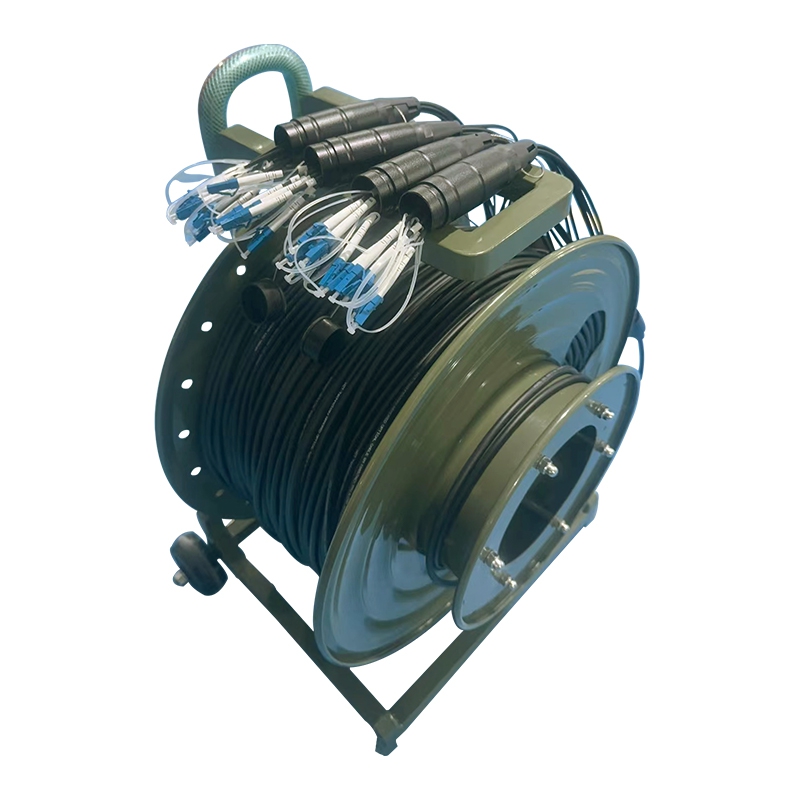

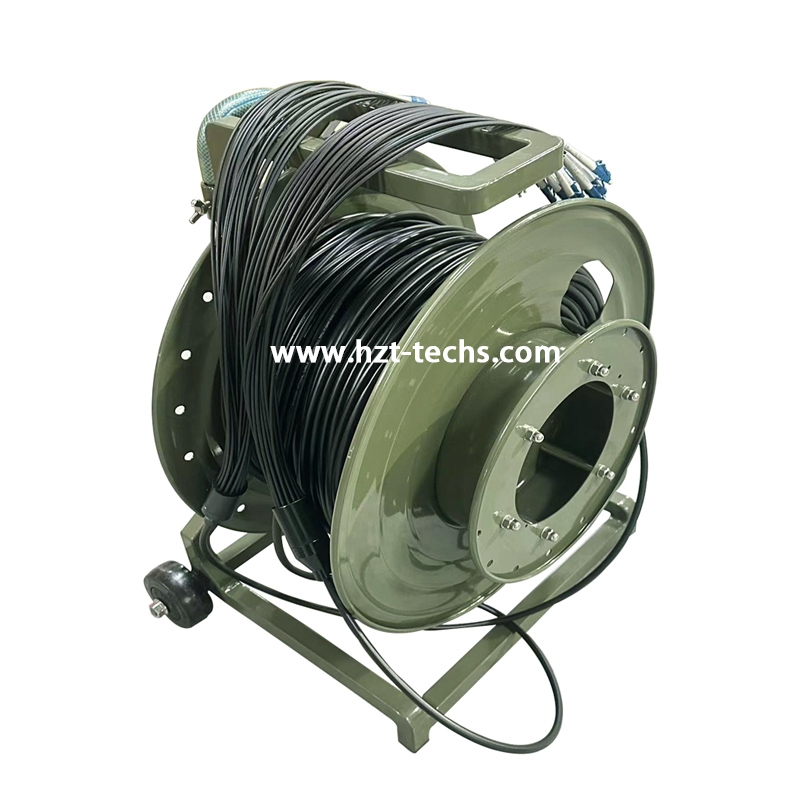

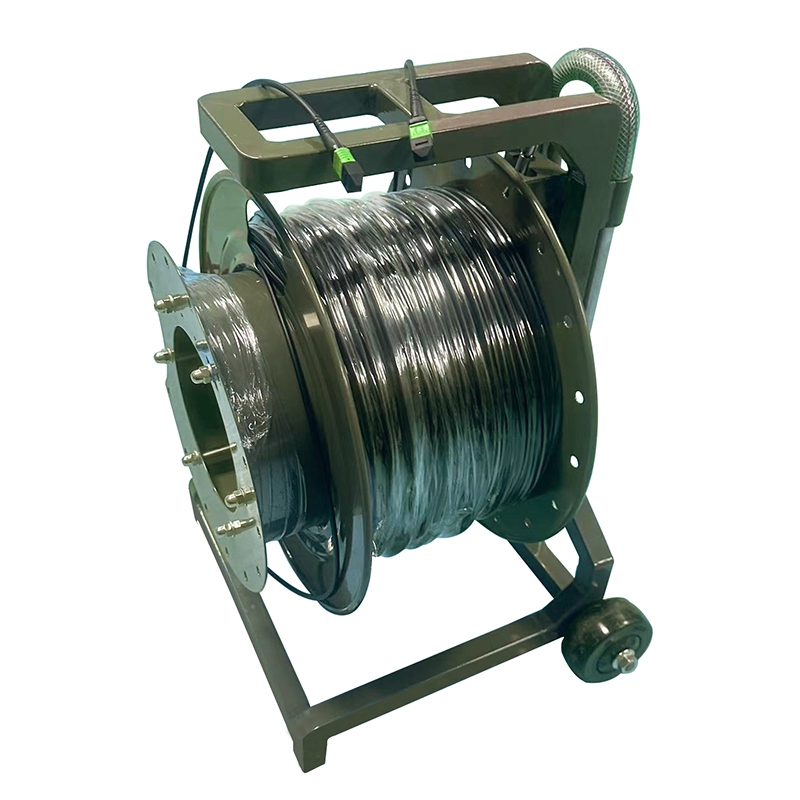

Pull Rod Metal Reel BX-03

  • Description
  • Technical data
  • Make an inquiry
    Descritpion
    Portable field deployable tactical fber optic cable reel has been optimised for using in harsh environmentswhere moblity and rapid deployment of the cable are very essential. This assembly is specifically designed for field deployable applicationsPaticwlarly, it can broadcast the communication for film crews to connect HDTV camera eauipments with central broadcasting trucks abouievents like music concerts and sporting events.
    Feature
    ● Portable and durable cable ree
    ● Rapid deployment and re-coiling of cable
    ● Rated cable capacity of 1000m at 3.0mm cable OD
    ● Orientationpin desian ensures fast blind connection
    ● Adopt neutral connection technology without using adaptor
    ● The material of the receptacle canavoid electromagnetism reaction
    ● Exterior of receptacle is highly-intensifed dielectric compound material
    ● High tensle, high crush resistancand wide operaing temperature cable
    ● Receptacles are equipped with dust-proof cap to avoid vapor and impurity
    ● Precision ferrule makesinterchangeable and repeatable connection better
    ● Nonmetal cable is light, portable, bendable and resist to oil. rubbina. flame
    Application
    ● Field communication and CATV,
    ● Quick deployment, quick distributing and retrieving of military field communication system
    ● Cable deployment of radar, aviation and naval vessel
    ● Complicated circumstances of oil field, mining and harbors
    ● TV re-broadcasting and communication.
    ● Emergency repairing and supporting LAN cabling.
      Specification
    Items
    Parameter
    Model Number:
    BX-03
    Color:
    Army green/ black
    Feature:
    Portable
    Product Size:
    480*350*520mm
    Main reel‘s Diameter
    Ø400mm
    Diameter of Axle
    Ø200mm
    Main reel‘s Width
    190mm
    Net Weight:
    10.5
    Gross Weight:
    17.0Kg
    Packing Size:
    520*390*560 Wooden Carton
    Material:
    Metal
    Cable‘s OD:
    3.0mm
       4.0mm
        5.0mm
        6.0mm
    7.0mm
       8.0mm
        9.0mm
       10.0mm
    Capacity:
    1800M
    1000M
    630M
    420M
    300M
    220M
    190M
    150M
