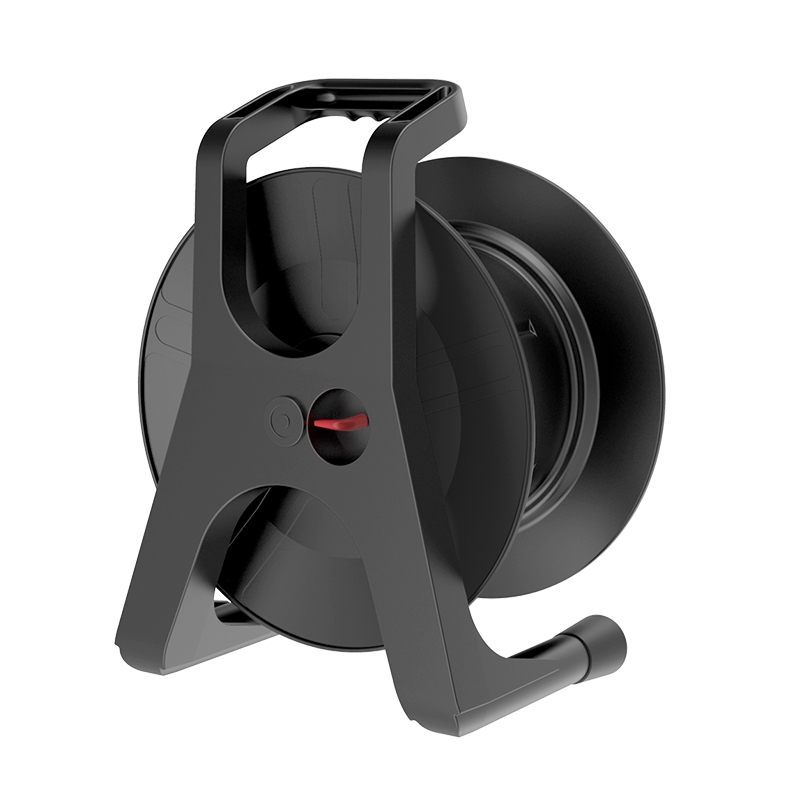

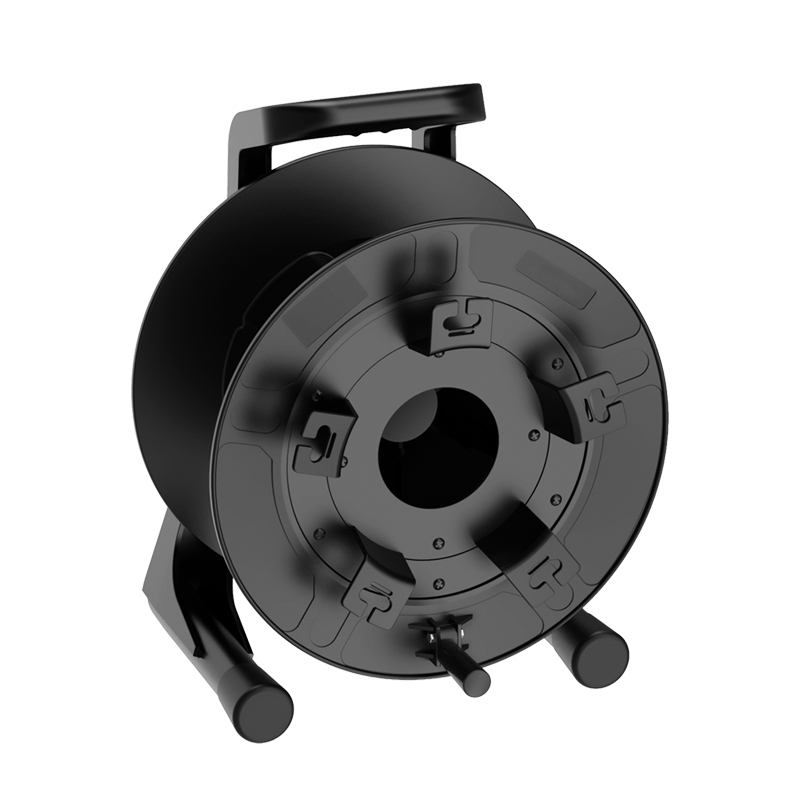

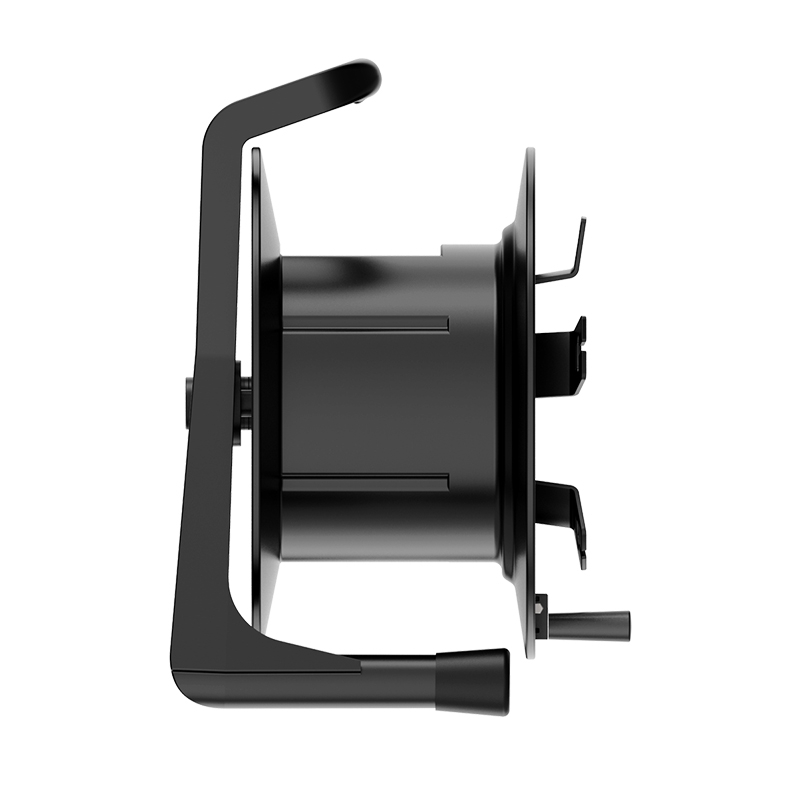

Unbreakable Fiber Cable Reel PCD-380

  • Description
  • Technical data
  • Make an inquiry
    Descritpion
    Unbreakable cable druml(HZT-PCD-380), suitable for various of long cables, Frame is made from robust PC (Polvcarbonate) with integrated handleand brake, drum is made from a special PE composite materials with detachable cable feeder. it has a lot of advantages, such as light weight, crush resistance, resistance to fall off, not easy to deformation, oil resistance, anti-UV and so on.

    This robust range of plastic cable drums offers an affordable solution - perfect for the touring, live events, and theatrical markets.

    Feature
    ● Separate connector compartment for secure deployment
    ● Rugged design for indoor and outdoor use
    ● Highly resistant to shock and abrasion
    ● Hand reels & stackable storage reels with slotted divider discs
    ● Reels delivered furnished can with cable and connectors if need cable.
    ● Other specifications are optional

    Application
    ● Field communication and CATV,
    ● Quick deployment, quick distributing and retrieving of military field communication system
    ● Cable deployment of Stage&lighting systerm
    ● Complicated circumstances of oil field, mining and harbors
    ● TV re-broadcasting and communication.
    ● Emergency repairing and supporting LAN cabling.
    Engieering Drawing

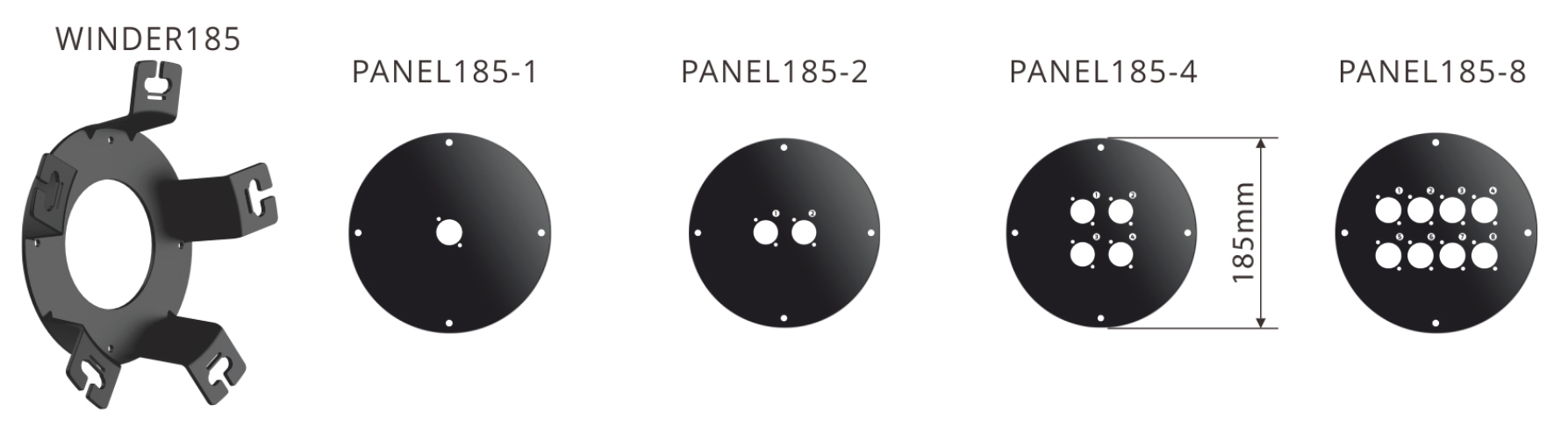

    Accessories

      Specification
    Items
    Parameter
    Model Number:
    HZT-380
    Color:
    Black
    Feature:
    Portable
    Product Size:
    338.9*341*488.2mm
    Net Weight:
    4.7KG
    Gross Weight:
    5.2Kg
    Packing Size:
    410*320*520mm by Carton box
    Material:
    PC (Polycarbonate)
    Cable‘s OD:
    5.0mm
       6.0mm
        7.0mm
       8.0mm
    9.0mm
       10.0mm
       11.0mm
       15.0mm
    Capacity:
    350M
    304M
    223M
    171M
    135M
    109M
    90M
    49M
