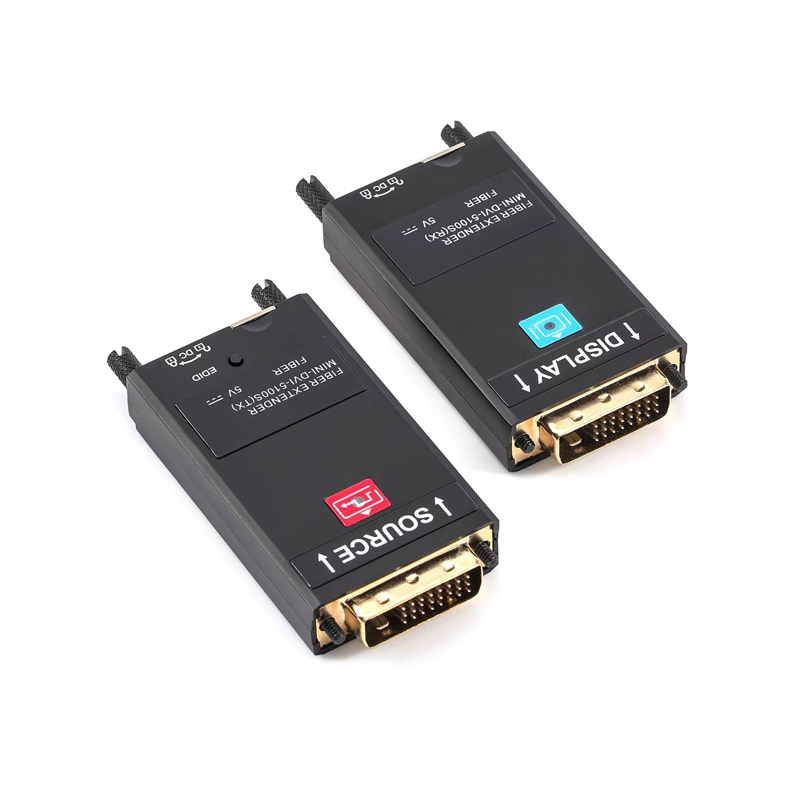

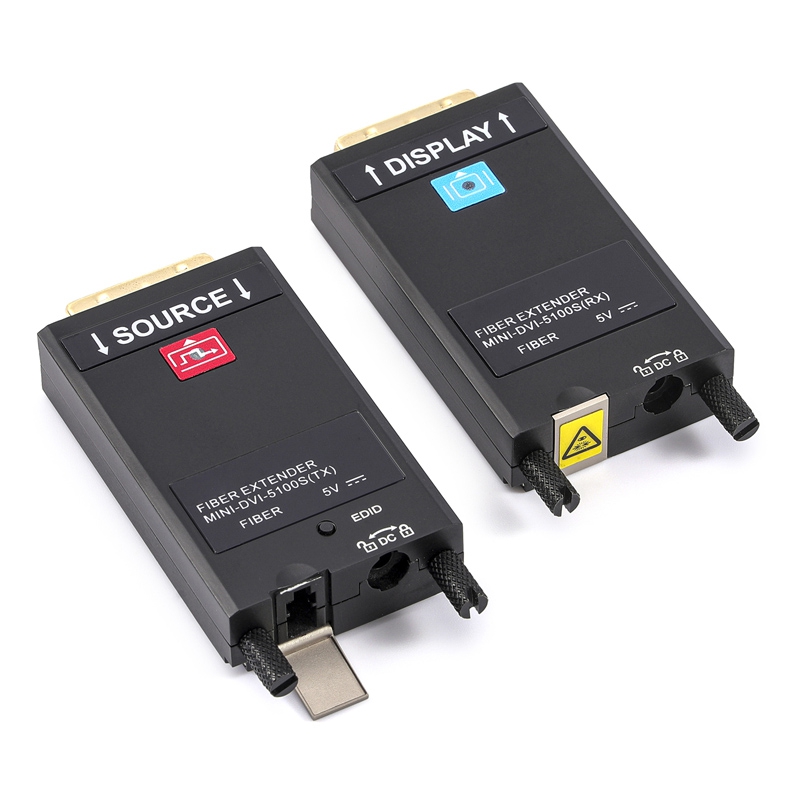

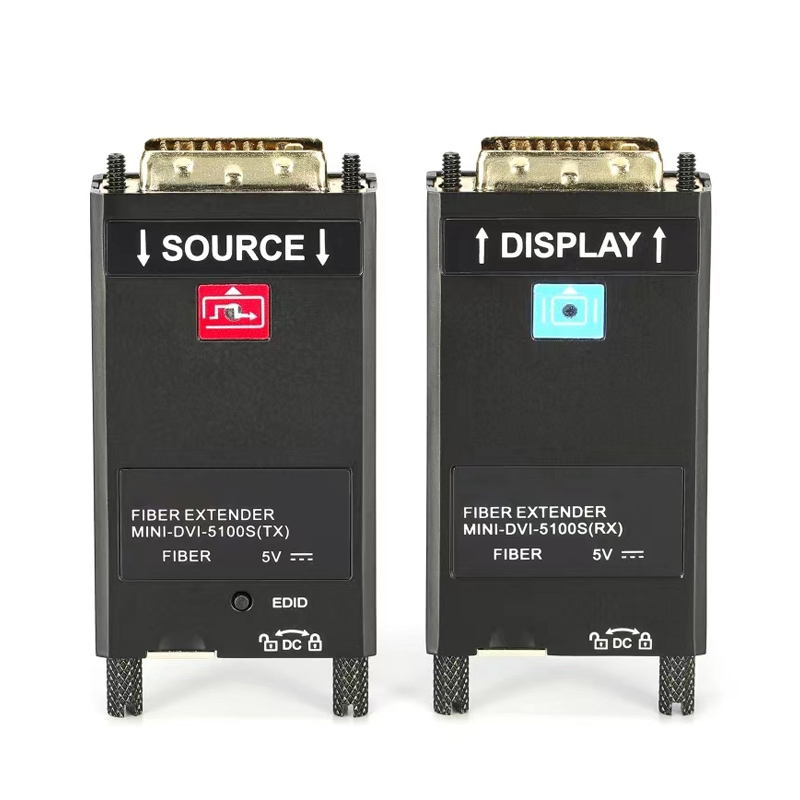

4K@60Hz MINI 4K DVI To Fiber Extender

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT-DVI-4K-6SM001 Mini DVI 1.0 fiber optic extender is developed by HZT Technology and has independent intellectual property rights. Absorbing the advantages of similar products at home and abroad, combined with the actual demand of the market, through one core fiber transmission of 4K*2K*60Hz DVI video signal, to achieve no delay, no compression, high quality signal extension of 1km.
    Mini DVI 1.0 fiber optic extender adopts video processing and photoelectric conversion integrated design,high integration, small size, its optical components and core circuits are imported components, stable performance, suitable for different working environments.
    Mini DVI 1.0 fiber optic extender conforms to the international HDMI 2.0 protocol, built-in EDID mode and EDID transparent mode. Support button mode switching and power off EDID memory storage function.
    The power consumption of the mini DVI 1.0 fiber optic extender is less than 1.5W,and it uses DC 3.5*1.35mm socket for power supply, the power socket with lock to prevent the equipment from falling off during operation,optional USB cable for power supply to solve power supply pain points, has strong flexibility in use.
    Function
    ● Complies with DVI 1.0 single link standard and uses HDMI 2.0 protocol;
    ● Support downward compatibility of 4K*2K*60Hz resolution;
    ● Built-in EDID mode and EDID transparent mode,support button mode switching;
    ● Support EDID memory storage function after power off;
    ● Support unilateral power supply technology and can be powered from the signal source DVI port;
    ● Support dust prevention of fiber optic interfaces and have anti detachment design to prevent the loss of dust covers;
    ● Support the power socket with lock to prevent the equipment from falling off during operation;
    ● Support portable installation of rear long screws;
    ● Support single fiber transmission of 1km,compatible with multi-mode and single-mode modes;
    ● Support status light indication;
    ● Plug and play,without debugging;
    Application
    ● Stage rental;
    ● LED large screen;
    ● Projection fusion;
    ● Live TV;
    ● Radio and television and video recording;
    ● Video conferencing;
    ● Information release and display system;
    ● Command and dispatch center;

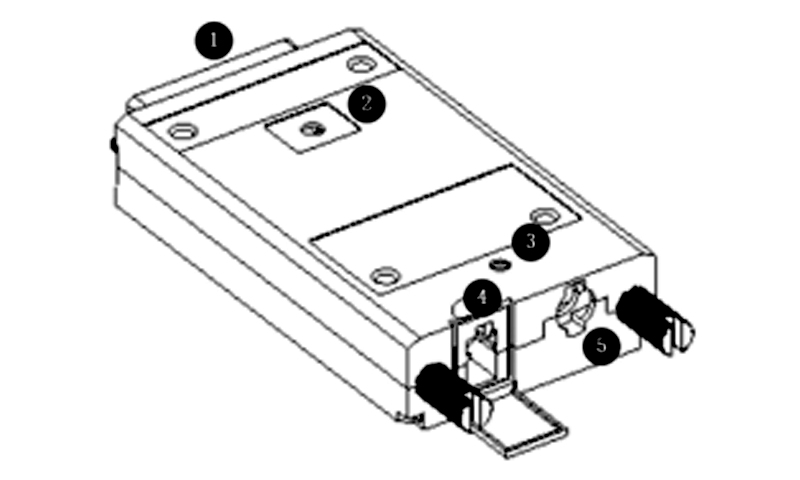

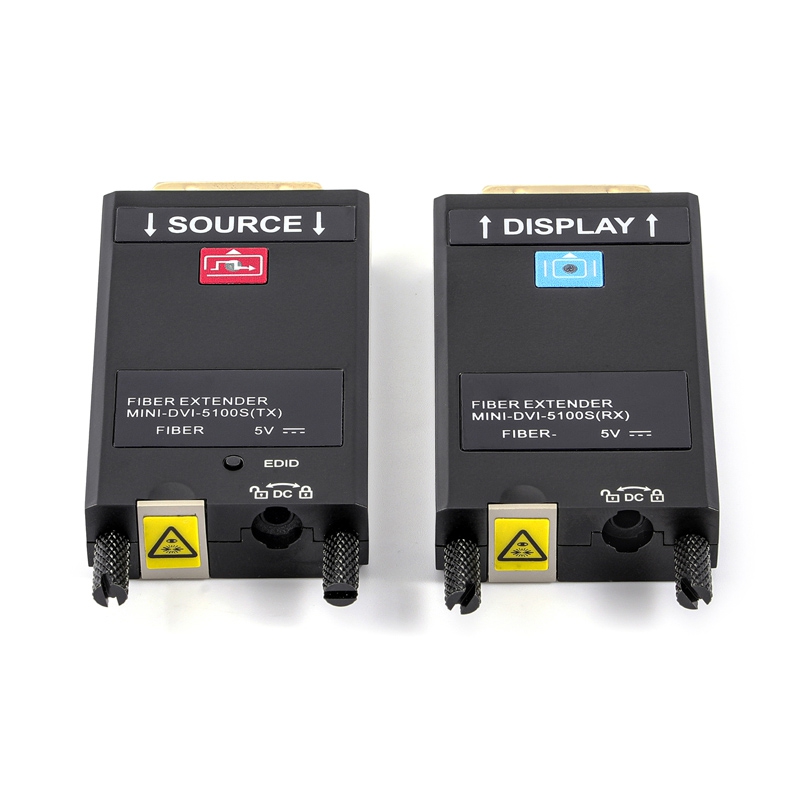

    Equipment panel description


    ① DVI 24+1 male type
    ② Status indicator light
    ③ Status indicator lightEDID mode switch key (only available for transmitter)
    ④ LC fiber interface
    ⑤ DC 3.5*1.35mm power supply interface
    Indicator:
    FIBER: Light up: fiber signal
    No light: no fiber
    DATE: Flashing: Equipment working properly
    No light: equipment not working
    VIDEO: Light up: video signal
    No light: No video signal
    POWER: Light up: power on equipment
    No light: No power

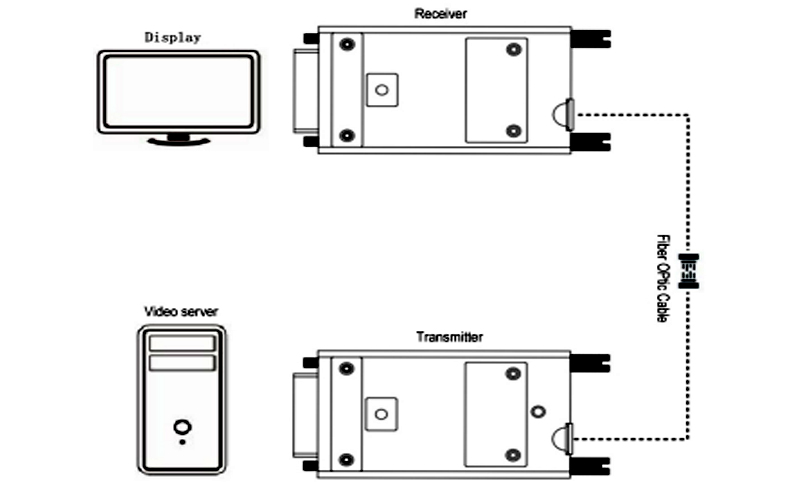

    Connection Diagram

    Specification
    Optical
    Wavelength :
    1310/1550nm
    Band bandwidth :
    10Gbps
    Tx power :
    ＞-3db
    Rx sensitivity :
    ＞ -10dBm
    Optical connector :
    Single LC
    Distance :
    0 ~ 1000M For single mode LC Fiber.
    DVI Video
    DVI Format :
    DVI1.0
    DVI Type :
    DVI-D(pure digital)
    Bandwidth :
    10.2GHz
    Pixel clock :
    297MHZ
    Resolution :
    4K*2K*60Hz and downward compatibility
    Color Space:
    RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
    Physical interface :
    24+1 DVI Male  Type
    DVI Cable Suggestion :
    ≤10M
    Number of  Transmitter Channel :
    1-ch DVI1.0 Video input
    Number of  Receiver Channel :
    1-ch DVI1.0 Video output
    Electrical & Mechanical
    Input Power Requirements :
    DC 5V
    Power Consumption :
    < 1.5W
    Stand-Alone Dimensions :
    82mm × 39mm × 14.2mm
    Shipping Weight :
     0.2 kg
    Operation Temperature :
    -20°C ~ +75°C
    Storage Temperature :
    -20°C ~ +85°C
    Relative Humidity:
    0% ~ 95% (non-condensing)
    MTBF:
    >100,000 hours
    Ordering Information
    Part Number
    Description
    Marks
    HZT-DVI-4K-6SM001
    1-ch  4K DVI@60hz to Fiber converter, Singlemode with single  LC fiber Connector, 0~1000M, America/Europe/UK Plug Optional.
