4K@30Hz 1-CH 4K DVI To Fiber Extender

  • Description
  • Technical data
  • Make an inquiry
    Description
    DVI 1.0 multi-Functional Fiber Optical Extender is developed by HZT technology and has independent intellectual property rights. Absorbing the advantages of similar products at home and abroad, combined with the actual demand of the market, 4K DVI video signal +1-ch two-way RS232/RS485 serial port data through a side fiber, to achieve no delay, no compression, high-quality signal extension of 10 kilometers. The optical module and core circuit of the DVI 1.0 multi functional fiber optical extender are imported components, stable performance, the use of integrated circuit design, simple design, easy to install and debug, maintenance-free, and because of the use of optical fiber as the transmission medium, so excellent performance, high temperature resistance, cold, can effectively prevent strong electromagnetic radiation interference, lightning impact and power surge. Greatly improve the stability and reliability.
    Function
    ● Complies with the DVI 1.0 specification
    ● Supports HDMI 1.4 standard;
    ● Support RGB,YUV4:4:4/4:2:2/4:2:0 video format;
    ● Built-in EDID, automatic matching signal source and display equipment;
    ● Supports transparent data transmission over one bidirectional RS232/RS485 serial port.
    ● LED status indicator;
    ● Supports the upper 2U16 slot chassis, card type, centralized management.
    ● Supports communication with HDMI 1.4 multi-service optical terminals of the company;
    ● Single mode 10KM transmission distance;
    ●  Plug and play without debugging.
    Application
    ● Stage rental;
    ● LED large screen;
    ● Projection fusion;
    ● Live television;
    ● Radio and television recording;
    ● Video conferencing;
    ● Information release and display system;
    ● Command and Dispatch Center;

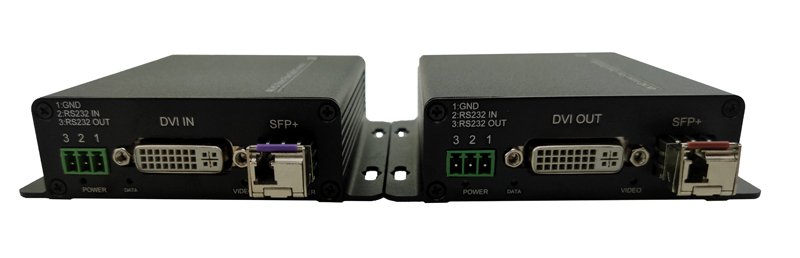

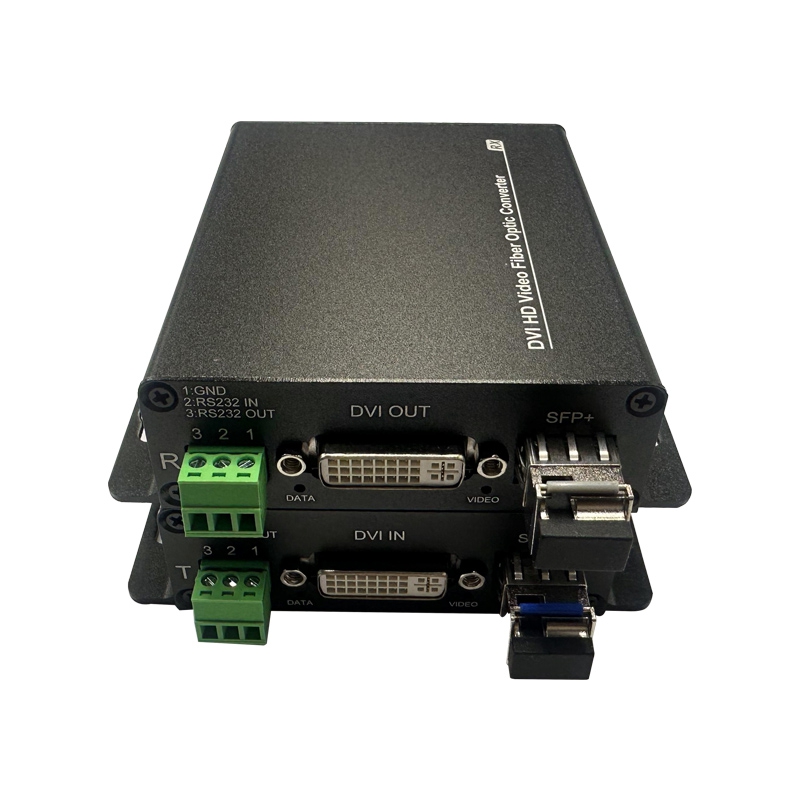

    Equipment panel description

    Port description： 4K DVI 30HZ Video to Fiber Optical Converter
    SFP +： 10G Video Fiber Optic Module
    Date： RS232 Serial Data
    DVI IN ： Video Input Interface
    DVI OUT ： Video Output Interface

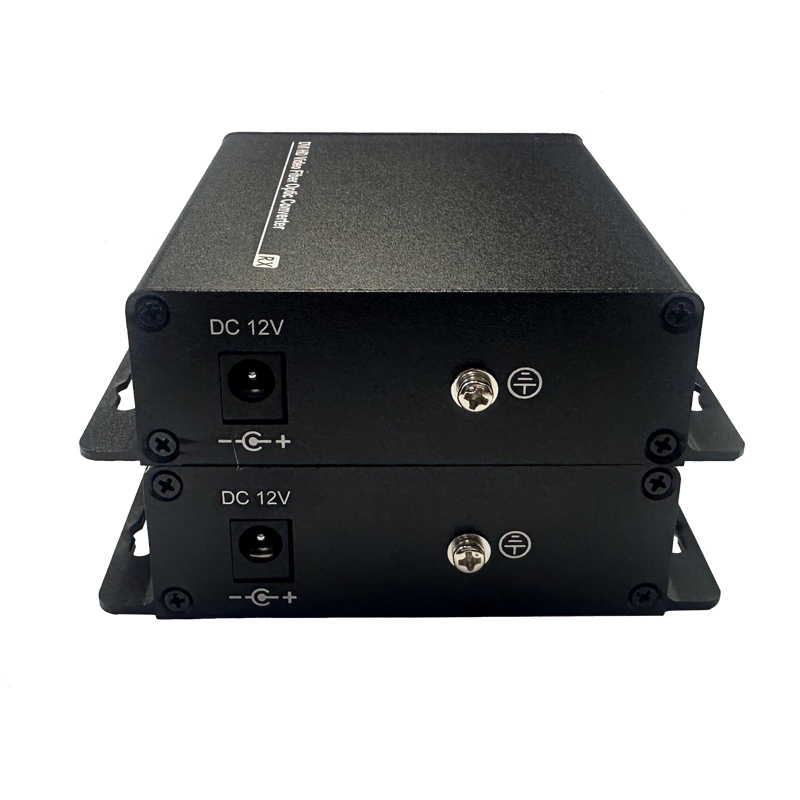

    DC12V DC12V Power supply
    Indicator:
    FIBER: Light up: fiber signal
    No light: no fiber
    DATE: Flashing: Equipment working properly
    No light: equipment not working
    VIDEO: Light up: video signal
    No light: No video signal
    POWER: Light up: power on equipment
    No light: No power

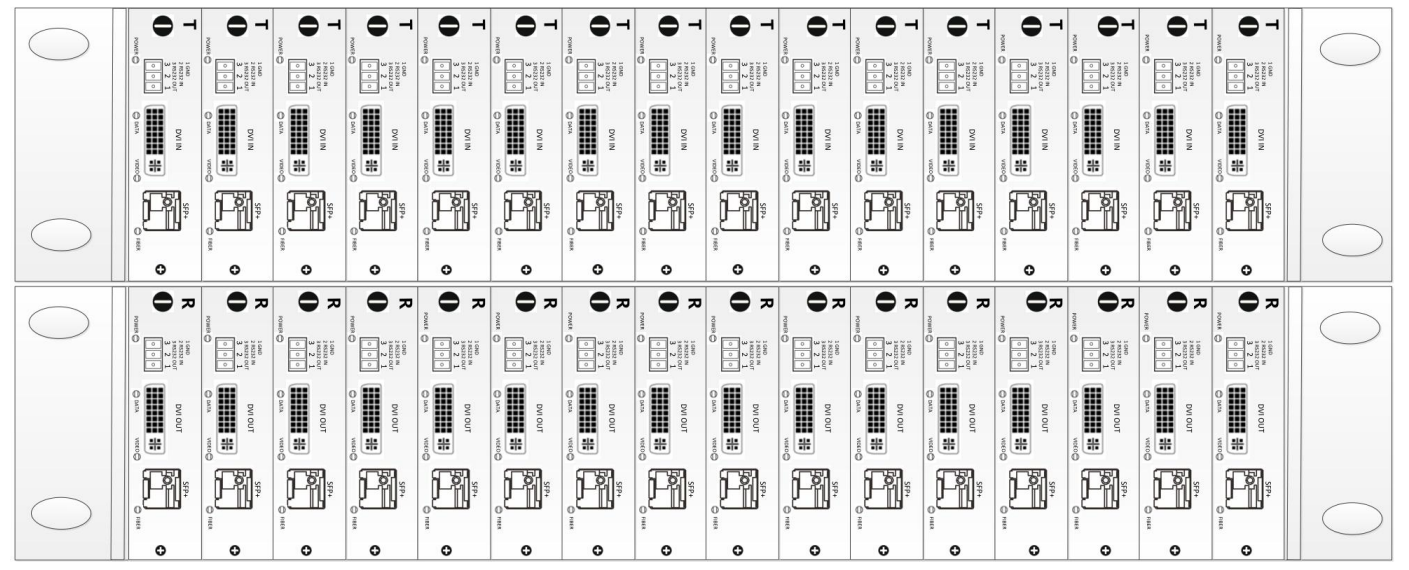

    Extension: 16 Slots 2U Rack Chassis centralized management
    Specification
    Optical
    Wavelength :
    1310/1550nm
    Band bandwidth :
    10Gbps
    Tx power :
    ＞-3db
    Rx sensitivity :
    ＞ -10dBm
    Optical connector :
    Single LC
    Distance :
    0 ~ 10KM For single mode LC Fiber.
    HDMI Video
    DVI Format :
    DVI1.0
    DVI Type :
    DVI-D(pure digital)
    Bandwidth :
    10.2GHz
    Pixel clock :
    297MHZ
    Resolution :
    480i ~1080p50/60Hz, 4Kx2K@24/30Hz
    Color Space:
    RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
    Physical interface :
    24+5 DVI Male  Type
    DVI Cable Suggestion :
    ≤10M
    Number of  Transmitter Channel :
    1-ch DVI1.0 Video input
    Number of  Receiver Channel :
    1-ch DVI1.0 Video output
    RS232 Data
    Level type
    RS232
    Rate
    50~115200 Hz downward compatibility
    Data bits
    8 bit
    Physical interface
    Phoenix Terminal (3 P)
    Number of Transmitter Channel :
    1-ch RS232 Data
    Number of Receiver Channel :
    1-ch RS232 Data
    Electrical & Mechanical
    Power Input:
    DC 12 V1A
    Power Consumption:
    < 4W
    Product Size
    104*104*28 mm
    Packing Size
    275*220*55 mm
    Weight
    0.75 KG/pair
    Operation Temperature :
    -20°C ~ +75°C
    Storage Temperature :
    -40°C ~ +85°C
    Relative Humidity:
    0% ~ 95% (non-condensing)
    MTBF:
    >100,000 hours

    Ordering Information
    Part Number
    Description
    Marks
    HZT-DVI-4K1D-SM001
    1-ch  4K HDMI@30hz With RS232 Data to Fiber converter, Singlemode with single  LC fiber Connector, 0~10KM, America/Europe/UK Plug Optional.
    HZT-DVI-4K-2U16SM001
    16 Slots 2U Rack Chassis. Each slot have above function
