1080p@60HZ KVM HDMI+USB To Fiber Optical Extender up to 10KM

  • Description
  • Technical data
  • Make an inquiry
    Description

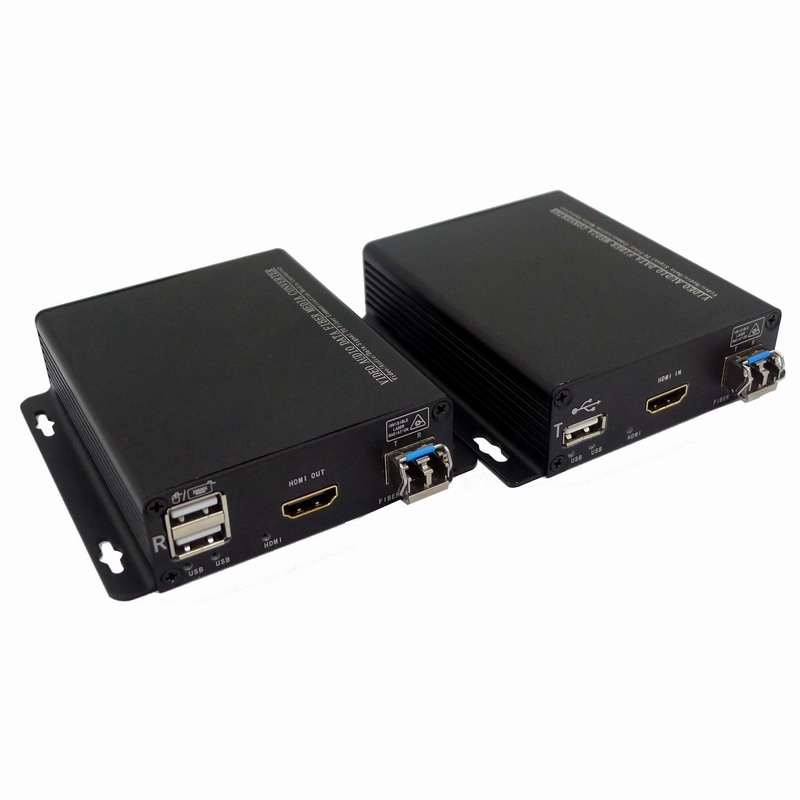

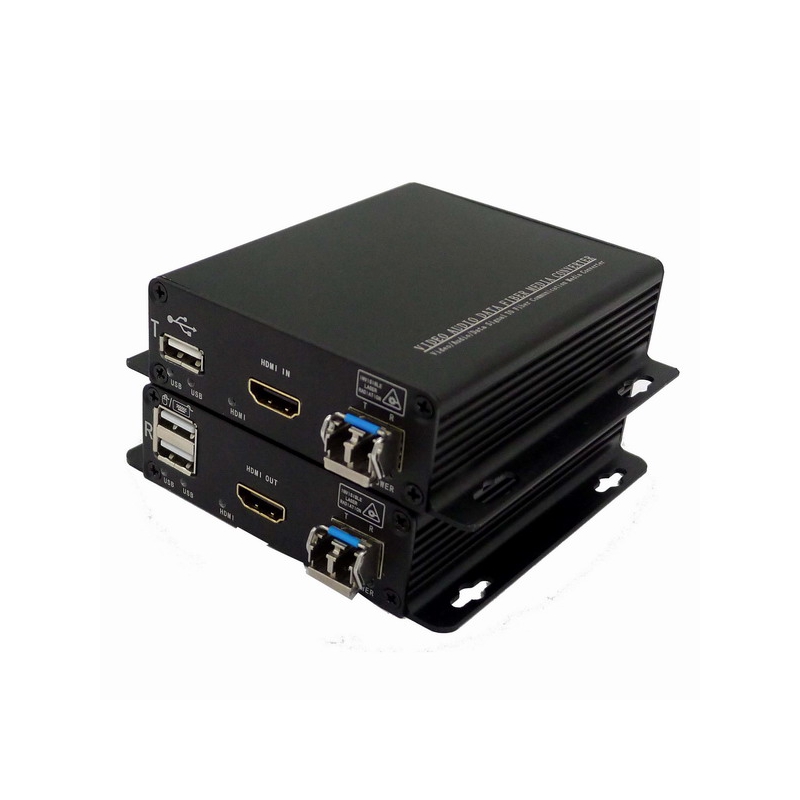

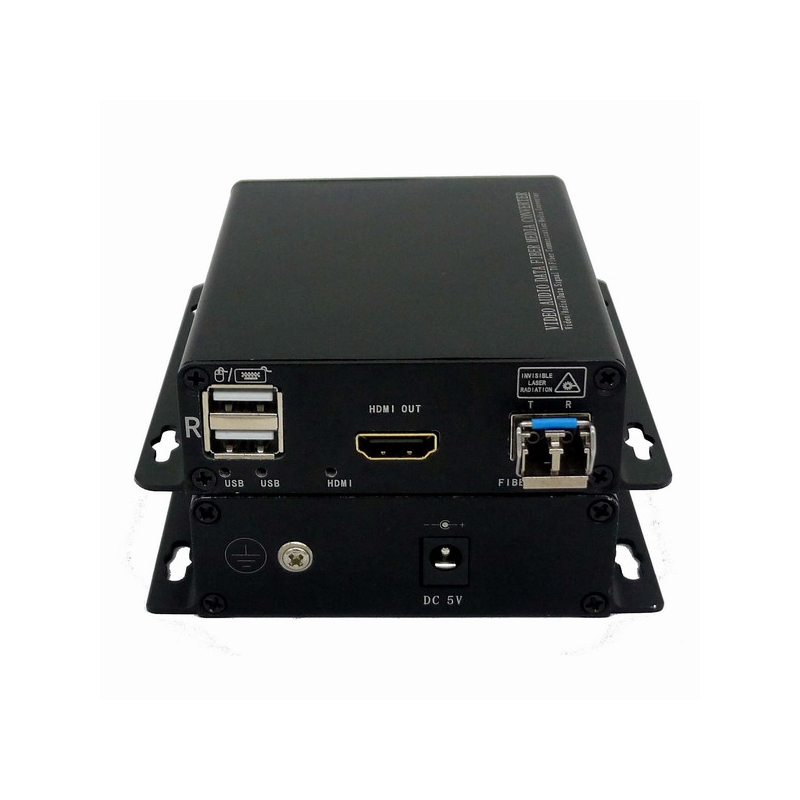

    HZT Technology 4K/1080P KVM HDMI+USB To Fiber Optical Extender includes one transmitter and one receiver, which is a high-speed, HDCP compliant fiber optic transport system capableof extending 4K/2K HDMI (or DVI ) and USB(keyboard or mouse) signals over fiber cable while maintaining flawless image quality. An HDMI input and USB signals from a source device such as a set-top box or Blue-Ray player is converted into light pulses by an optical transmitter module for transmission over fiber optic. On the display side, an optical receiver module converts the light pulses back to an HDMI and USB(keyboard or mouse) signals .
    The 4K KVM Fiber Optic Extender supports optical links using either multi-mode or single-mode fiber. These features make the equipment a powerful solution for digital display applications that require flawless signal quality over extremely long cable runs.
    Product feature:
    ● Supports 4K (UHD) resolution formats up to 4096x2160 / 24p, 30p
    ● Max extension distance 500M(MM fiber)/10KM(SM fiber)
    ● Supports 1080p resolution with color depth up to 16 bits/pixel
    ● Supports HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total
    ● Support USB(keyboard or mouse)

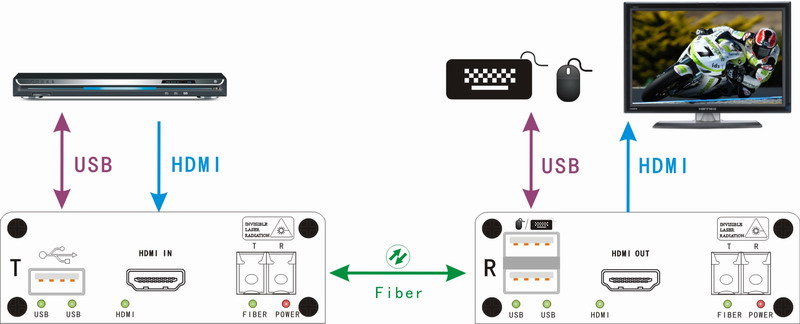

    Connection Diagram





    Specification
    Performance:
    Compliance
    DVI v1.0, HDMI v1.4, HDCP v1.4
    Maximum Pixel Clock Frequency
    Supports pixel clock rates up to 340 MHz
    Maximum Video Bit Rate
    Supports digital signal bit rates up to 3.4 Gbps per color
    Supported Color Depth
    Supports 1080p resolution with up to 16 bits/pixel
    Digital Audio Support
    Dolby Digital, Dolby Digital Plus, Dolby True HD and DTS-HD Master Audio
    Supported HDTV Formats
    Supports all HDTV resolutions including 1080p, 2K and 4K (UHD) formats
    Supported PC Resolutions
    Supports resolutions up to 4096x2160 / 24p, 30p

    Optical:
    Optical Transmitter
    Laser Source: 1310nm / 1550nm
    Optical Receiver
    PIN Photo Diode O/E Converter
    Fiber Cable Type / Max. Length
    62.5/125um MMF 300 meters ，50/125um MMF 500 meters
    9/125μ single-mode optical fiber 10KM

    Connections:
    HDMI Input / HDMI Output
    19-pin female HDMI connectors
    Optical Input / Output
    female LC optical connectors
    USB Interface
    TX
    1，  connect to PC/ HDMI source
    RX
    2,    connect to Cable keyboard or mouse

    Mechanical:
    Construction
    Extruded Aluminum enclosure with black anodized finish
    Dimensions
    104 mm x 104 mm x 28 mm
    Weight
    700g per pair

    Environmental:
    Power Input:
    DC 5V2A
    Power Consumption:
    TX Unit: 3.5 watts    RX Unit: 3.5 watts
    Operation Temperature :
    -20°C ~ +75°C
    Storage Temperature :
    -40°C ~ +85°C
    Relative Humidity:
    0% ~ 95% (non-condensing)
    MTBF:
    >100,000 hours
