Description

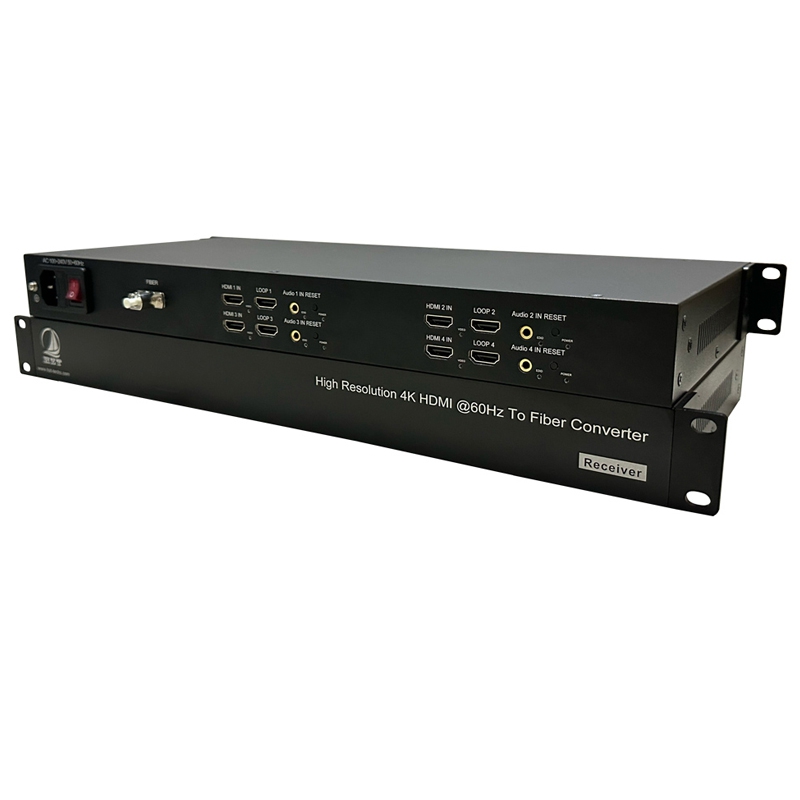

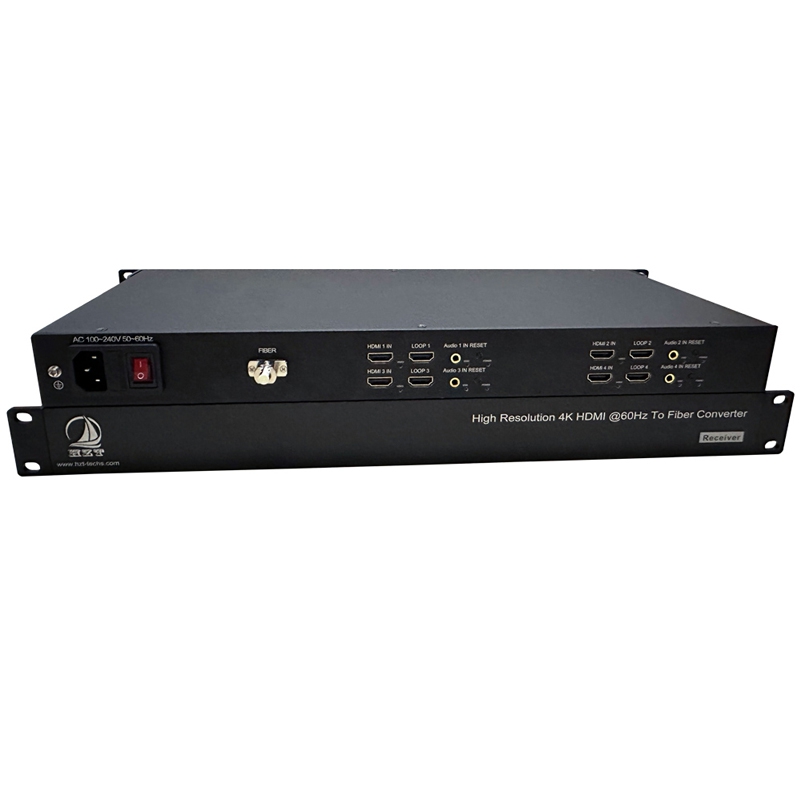

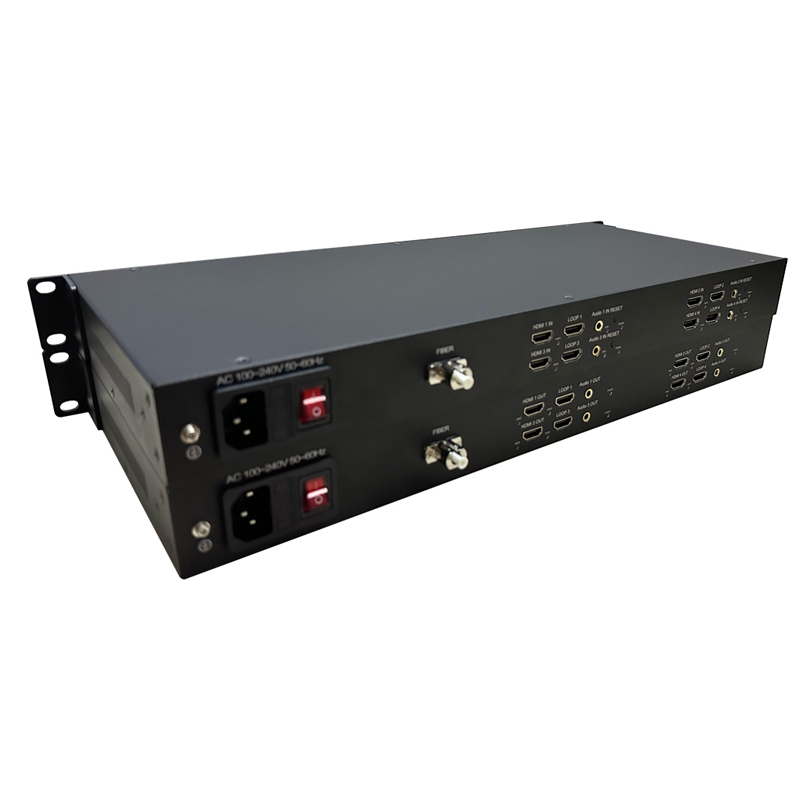

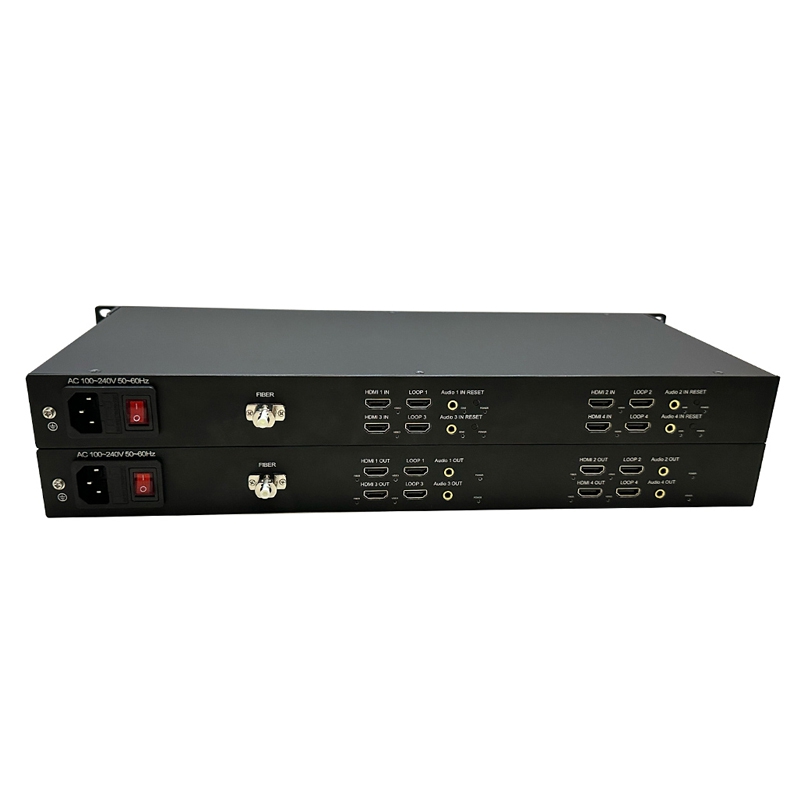

HZT-4K-HDMI--4V-6SM001 HDMI 2.0 Multi-functional Fiber extender is developed by HZT Technology and has independent intellectual property rights. Absorbing the advantages of similar products at domestic and abroad, combined with the actual demand of the market, it can be transmitted 4-ch 4K 4096x2160@60Hz HDMI video signal +4-ch Keyboard/Mouse (Optional)+4 two-way 3.5mm audio +4 two-way RS232 data through a single LC fiber , to achieve no delay, no compression, high-quality signal extension for 10 kilometers distance.
The SFP module and core circuit of HZT-4K-HDMI-4V-6SM001 are adopting imported components and integrated circuit design, it has stable performance, easy installation and commissioning, maintenance-free, industrial wide temperature range design, and because it uses optical fiber as the transmission medium, so showed excellent performance, high temperature and cold resistance, It can effectively prevent the interference of strong electromagnetic radiation, lightning shock and power surge, and greatly improve the stability and reliability.
Feature
● Video complies with the HDMI2.0 specification.
● Both transmitter and receiver have video loopback sharing HD audio and video function;
● Support EDID management function, support built-in EDID/ automatic learning EDID switch;
● Support 3D, HDR format video;
● Support forward 3.5mm independent transmission, and audio embed, audio unembed function;
● Support reverse 3.5mm audio transmission;
● Support 1 keyboard and mouse control signals;
● Support 1 two-way RS232/RS485 serial port data transparent transmission;
● Single mode 10KM transmission distance;
● Support hot swap signal, plug and play, no need to set;
Application
● Stage rental;
● LED large screen;
● Projection fusion;
● Live TV;
● Radio and television and video recording;
● Video conferencing;
● Information release and display system;
● Command and dispatch center;
