4K@30Hz 4K HDMI with USB2.0 Fiber Extender

  • Description
  • Technical data
  • Make an inquiry
    Decsription
    4K HDMI+USB2.0 To Fiber Converter includes a transmitter and a receiver, which is a high-speed, HDCP compliantfiber optic transport system capable of extending 4K/2KHDMI (or DVI ) and USB2.0 signals over fiber cable while maintaining flawlessimage quality. An HDMI input and USB2.0 signals from a source device such as aset-top box or Blue-Ray player is converted into light pulses by an opticaltransmitter module for transmission over fiber optic. On the display side, anoptical receiver module converts the light pulses back to an HDMI and USB2.0 signals.
    The 4K HDMI+USB2.0 To Fiber Optic Extendersupports optical links using single-mode fiber. These features make theequipment a powerful solution for digital display applications that requireflawless signal quality over extremely long cable runs.
    Feature
    ● Supports 4K (UHD) resolution formats up to 4096x2160 / 24p, 30p
    ● Max extension distance 5KM(SM fiber)
    ● Supports 1080p resolution with color depth up to 16 bits/pixel
    ● Supports HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total
    ● Support USB2.0
    Application
    ● Stage rental;
    ● LED large screen;
    ● Projection fusion;
    ● Live TV;
    ● Radio and television and video recording;
    ● Video conferencing;
    ● Information release and display system;
    ● Command and dispatch center;

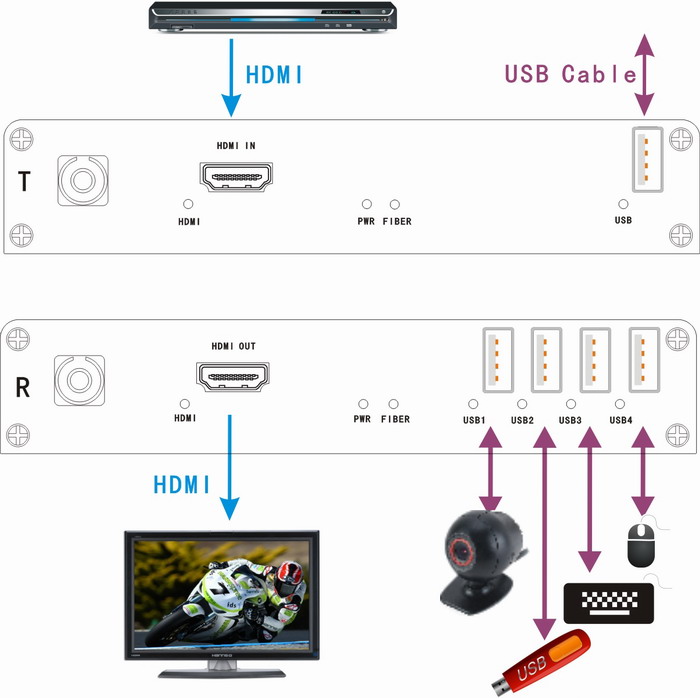

    Connection Diagram


    Specification
    Optical
    Wavelength :
    1310/1550nm
    Band bandwidth :
    10Gbps
    Tx power :
    ＞-3db
    Rx sensitivity :
    ＞ -10dBm
    Optical connector :
    Single LC,  SC/FC/ST Optional
    Distance :
    0 ~ 5KM For singlemode Fiber.
    HDMI Video
    Compliance :
    DVI v1.0, HDMI v1.4, HDCP v1.4
    Maximum Pixel Clock Frequency :
    Supports pixel clock rates up to 340 MHz
    Maximum Video Bit Rate :
    Supports digital signal bit rates up to 3.4 Gbps per color
    Supported Color Depth :
    Supports 1080p resolution with up to 16 bits/pixel
    Resolution :
    4096*2160@30Hz, 24Hz and downward compatibility
    Digital Audio Support :
    Dolby Digital, Dolby Digital Plus, Dolby True HD and   DTS-HD Master Audio
    Supported HDTV Formats :
    Supports all HDTV resolutions including 1080p, 2K and   4K (UHD) formats
    Physical interface :
    19-pin Female HDMI Connectors
    Number of  Transmitter Channel :
    1-ch HDMI1.4 Video input +1 port USB
    Number of  Receiver Channel :
    1-ch HDMI1.4 Video output +4 port USB
    USB Interface
    TX
    1，connect to PC/ HDMI source
    RX
    4,  connect to USB devices, max 500mA
    Electrical & Mechanical
    Power Source :
    Both Tx and Rx units must be powered using the supplied   external AC power adapters
    External AC Power Adapter :
    Input: 100~240VAC / 50-60Hz, 0.5A Output: 5VDC, 4.0A
    Power Consumption :
    TX Unit: 5 watts    RX Unit: 20 watts
    Stand-Alone Dimensions :
    175mm × 154mm × 30mm
    Shipping Weight :
    (include Transmitter & Receiver ) 1.5 kg
    Operation Temperature :
    -20°C ~ +75°C
    Storage Temperature :
    -40°C ~ +85°C
    Relative Humidity:
    0% ~ 95% (non-condensing)
    MTBF:
    >100,000 hours

    Ordering Information
    Part Number
    Description
    Marks
    HZT-HDMI-4KU2SM001
    1-CH 3840*2160P@30Hz HDMI+USB2.0 to Fiber converter, Singlemode with LC/SC/FC/ST fiber Connector, 0~10KM
