Description
The 4K HDMI fiber to video/audio/data is composed of the transmitter and the receiver. The audio, video and data output from the computer host (HD video signal source, HD DVD/DVR and other devices) are extended to the remote user through one core optical fiber, and the image and sound of the computer host are listened in real time at the remote end.
Function
● Support HDMI1.4, maximum support 4K30.
● Transmission bandwidth :10G.
● Transmission distance : 10km.
● Support HDCP.
● Maximum pixel clock 340M.
● Support RGB4:4:4 YUV4:4:4 YUV4:2:2 YUV4:2:0.
● EDID transparent transmission, downward compatibility with all systems 4K30.
● Built-in low jitter PLL,RMS jitter 0.03UI, high-speed transmission stable and reliable.
● Reverse transmission bandwidth 250M (EDID, HPD).
● HD non-compression transmission.
● Video delay <2ms.
● Support RS232/RS485( optional ).
● Support for simplex, duplex (RS232), half duplex.
● Plug and play without debugging.
Application
● LCD splicing large screen, LED splicing screen, project projection fusion project, video conference system;
● Monitor testing and burn-in
● Public Video System (Certification Companies, Futures Markets, Financial Documents, etc)
● High quality multimedia video conference display (Video Conference), briefing...
● Municipal command building center, substation control room, steel plant control room, cement plant control room, mine control room, coal mine, cement plant, thermal power station, fine chemical control room, digital machine room management

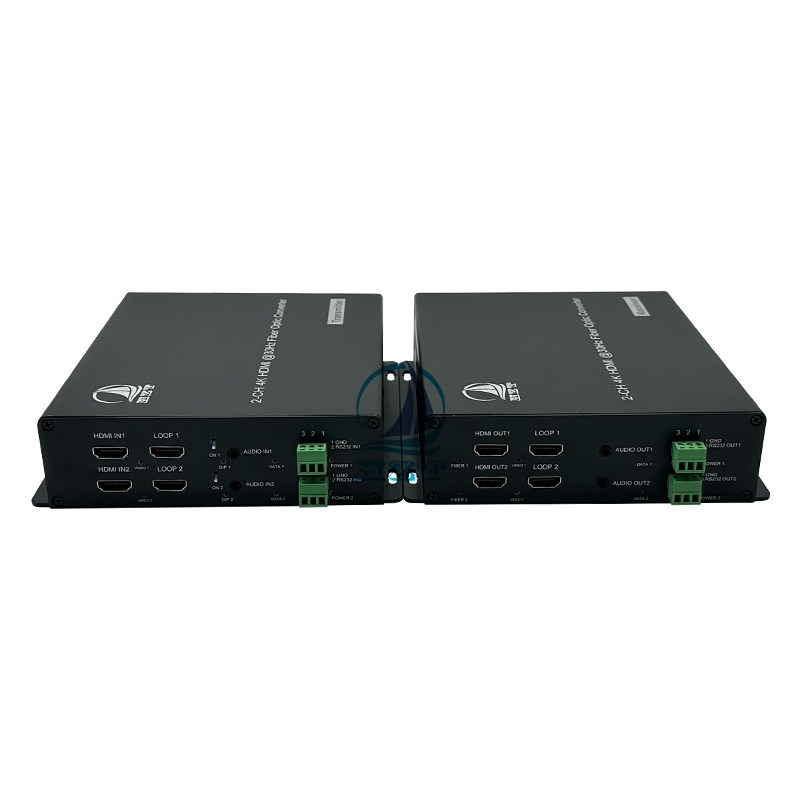

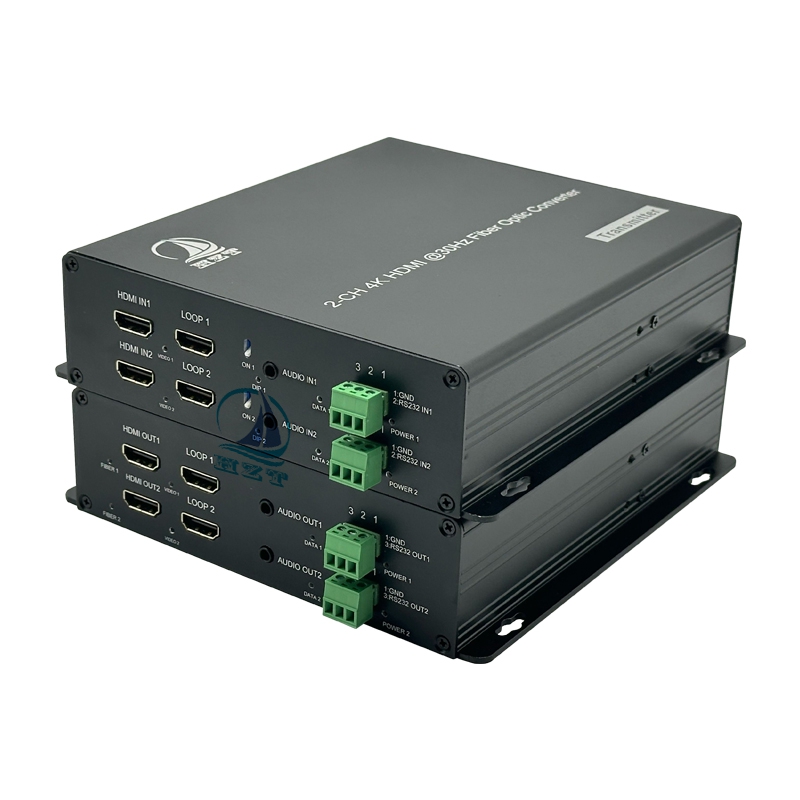

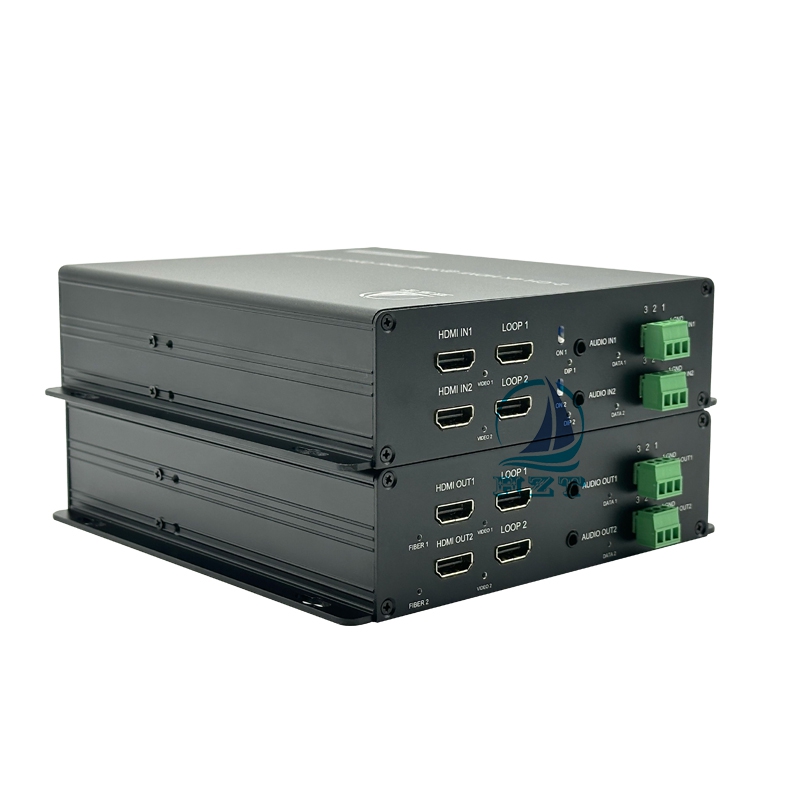

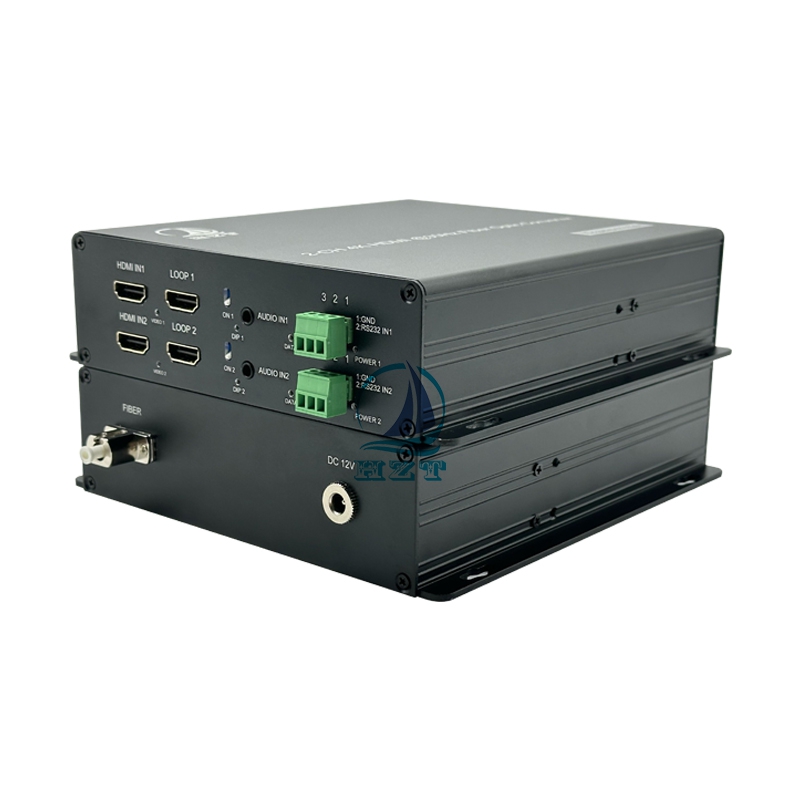

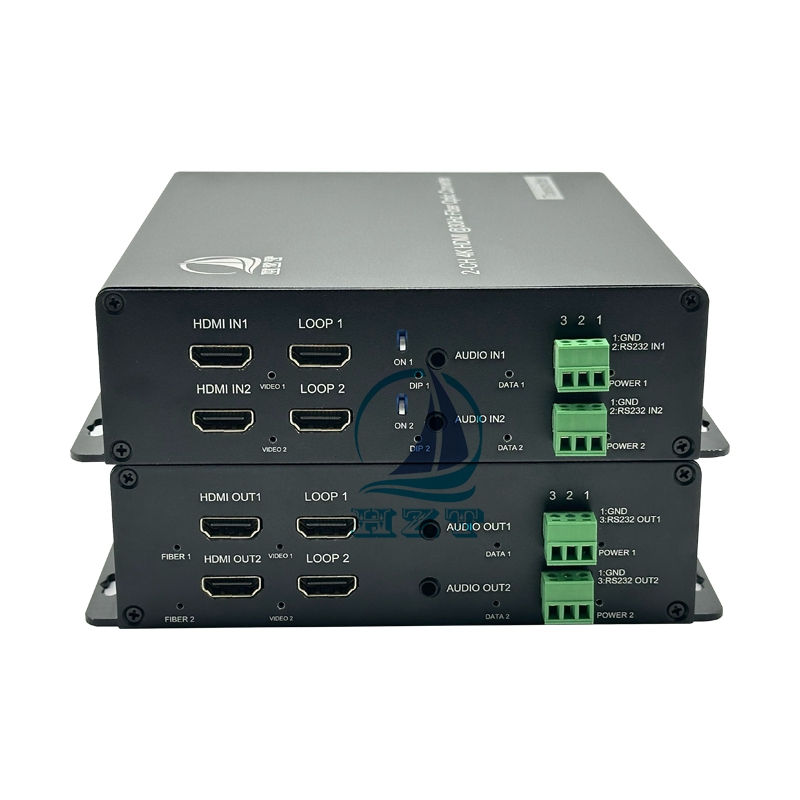

Equipment panel description
| Port description： |
1-CH BIDI 4K HDMI@30HZ Video to Fiber Optical Converter |
| SFP +： |
10G Video Fiber Optic Module |
| Date： |
RS232 Serial Data |
| HDMI IN ： |
Video Input Interface |
| HDMI OUT ： |
Video Output Interface |
| DC5V |
DC5V Power supply |
Indicator:
|
| FIBER: |
Light up: fiber signal
No light: no fiber |
| DATE: |
Flashing: Equipment working properly
No light: equipment not working |
| VIDEO: |
Light up: video signal
No light: No video signal |
| POWER: |
Light up: power on equipment
No light: No power |
Connection Diagram
