4K@30Hz 1-CH BIDI 4K HDMI Fiber Extender

  • Description
  • Technical data
  • Make an inquiry
    Description
    HZT-HDMI-4K1VV-SM001 is designed and produced by HZT technology and which has an ideal solution for Stage,lighting, Multimedia audio-visual application. It can transmits 1-ch Bi-directional 4K HDMI @30Hz digital video + 1-ch Bi-directional 3.5mm Analog Audio +1-ch RS232 Data over Single LC Fiber Converter. It supports No delay, Non-compression, high quality High Resolution Fiber transmisison up to 10KM over a single LC Fiber.
    Function
    ● Support HDMI1.4, maximum support 4K30.
    ● Transmission bandwidth :10G.
    ● Transmission distance : 10km.
    ● Support HDCP.
    ● Maximum pixel clock 340M.
    ● Support RGB4:4:4  YUV4:4:4 YUV4:2:2  YUV4:2:0.
    ● EDID transparent transmission, downward compatibility with all systems 4K30.
    ● Built-in low jitter PLL,RMS jitter 0.03UI, high-speed transmission stable and reliable.
    ● Reverse transmission bandwidth 250M (EDID, HPD).
    ● HD non-compression transmission.
    ● Video delay <2ms.
    ● Support RS232/RS485( optional ).
    ● Support for simplex, duplex (RS232), half duplex.
    ● Support 2U chassis card type.
    ● Plug and play without debugging.
    Application
    ● LCD splicing large screen, LED splicing screen, project projection fusion project, video conference system;
    ● Monitor testing and burn-in
    ● Public Video System (Certification Companies, Futures Markets, Financial Documents, etc)
    ● High quality multimedia video conference display (Video Conference), briefing...
    ● Municipal command building center, substation control room, steel plant control room, cement plant control room, mine control room, coal mine, cement plant, thermal power station, fine chemical control room, digital machine room management

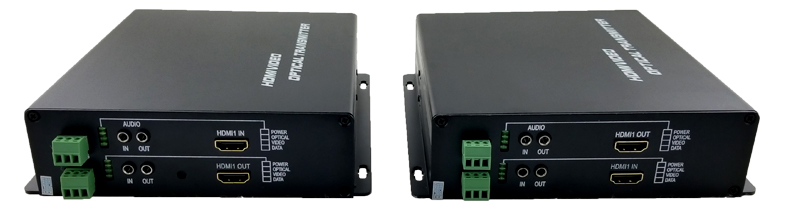

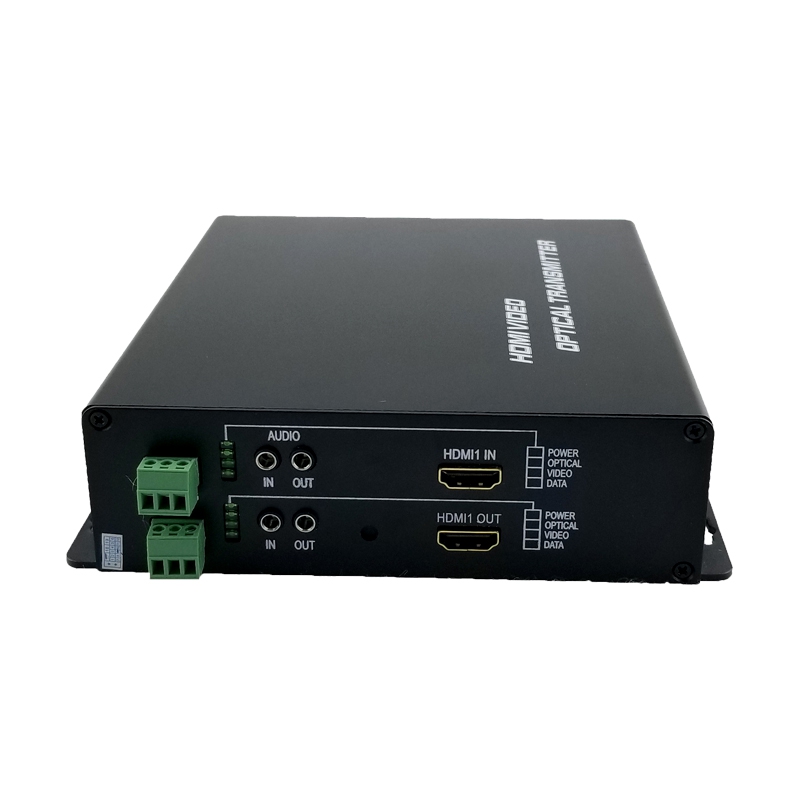

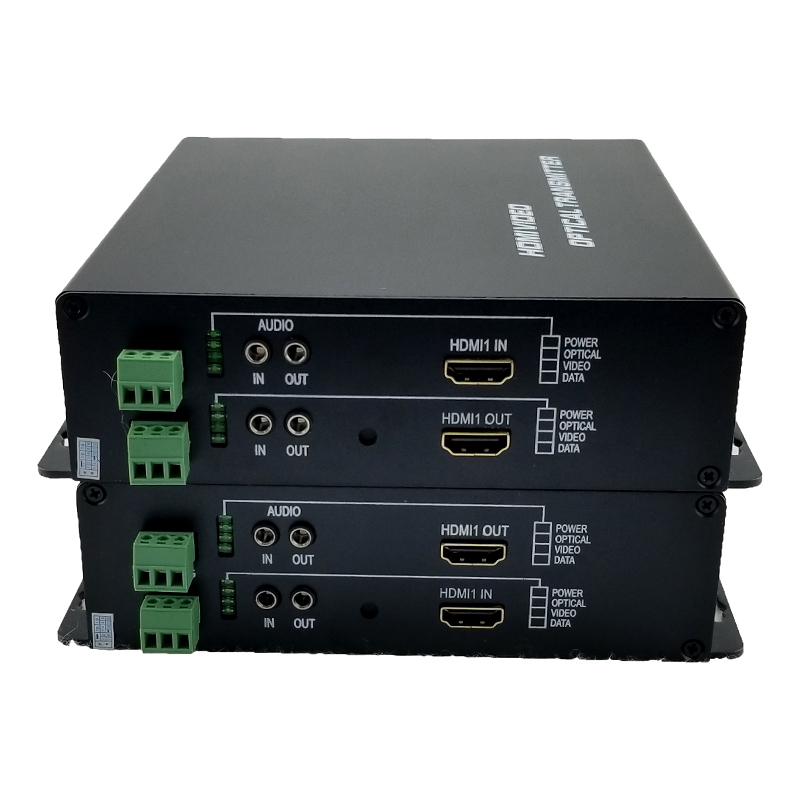

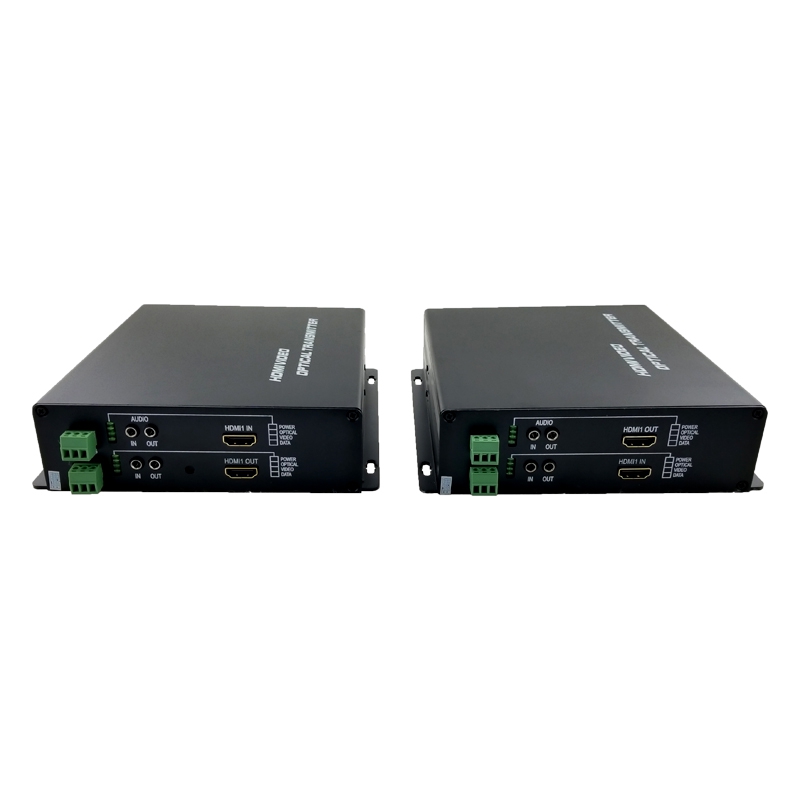

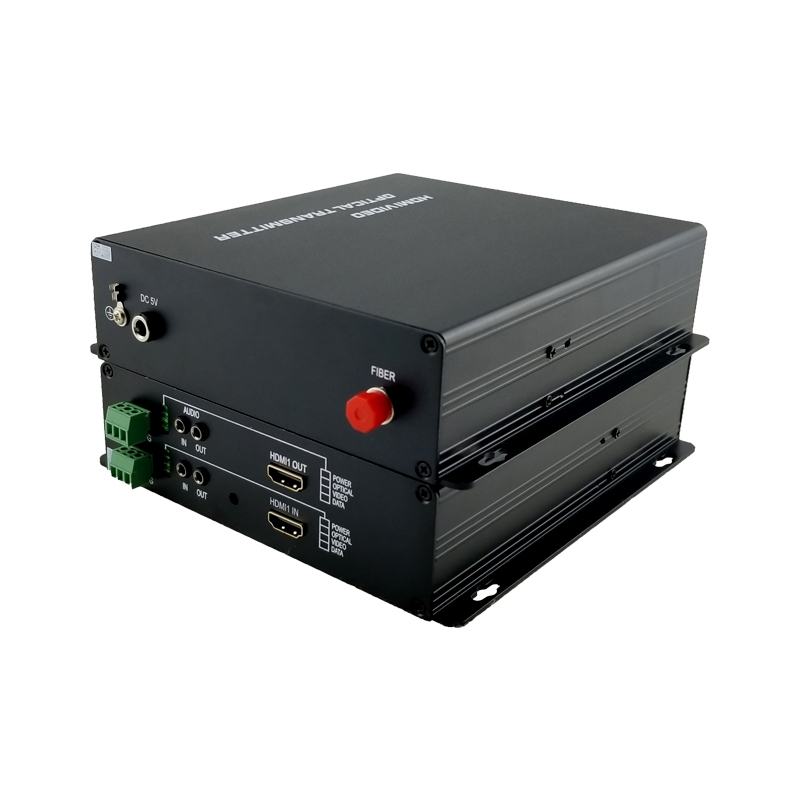

    Equipment panel description


    Port description： 1-ch BIDI 4K HDMI@30HZ Video to Fiber Optical Converter
    SFP +： 10G Video Fiber Optic Module
    Date： RS484/RS232 Serial Data
    HDMI IN ： Video Input Interface
    HDMI OUT ： Video Output Interface
    DC12V DC12V Power supply
    Indicator:
    FIBER: Light up: fiber signal
    No light: no fiber
    DATE: Flashing: Equipment working properly
    No light: equipment not working
    VIDEO: Light up: video signal
    No light: No video signal
    POWER: Light up: power on equipment
    No light: No power



    Specification
    Optical
    Wavelength :
    13100/1550nm
    Band bandwidth :
    10Gbps
    Tx power :
    ＞-7db
    Rx sensitivity :
    ＞ -13dBm
    Signal standard
    Serial Digital Optical Signal
    Rate:
    100MHZ~3.125GHZ
    Optical connector :
    Single LC
    Distance :
    0 ~ 10KM For singlemode Fiber.
    HDMI Video
    HDMI Version :
    1.4
    HDCP :
    1.4
    Pixel Clock :
    340M
    Signal swing:
    0.3 V (vpp)
    AC impedance:
    100 ohms
    Signal coupling mode:
    AC coupling
    Resolution :
    4096*2160@30Hz,
    1920*1200@60P,
    1920*1080@60p/60i/50p/30p/25p/24p,
    1280*720@60P, 480i,576i
    Physical interface :
    HDMI Type
    Number of  Transmitter Channel :
    1-ch HDMI1.4 Video input + 1-ch HDMI1.4 Video output
    Number of  Receiver Channel :
    1-ch HDMI1.4 Video input + 1-ch HDMI1.4 Video output
    RS485/RS232 Data
    Level type
    RS232/RS485
    Rate
    50~115200 Hz downward compatibility
    Data bits
    8 bit
    Physical interface
    Phoenix Terminal (3 P)
    Number of Transmitter Channel :
    1-ch RS232/RS485 Data
    Number of Receiver Channel :
    1-ch RS232/RS485 Data
    Electrical & Mechanical
    Power Input:
    DC 12 V1A
    Power Consumption:
    Single 4W
    Product Size
    168*154*45 mm
    Packing Size
    300*220*80 mm
    Weight
    1.5 KG/pair
    Operation Temperature :
    -20°C ~ +75°C
    Storage Temperature :
    -40°C ~ +85°C
    Relative Humidity:
    0% ~ 95% (non-condensing)
    MTBF:
    >100,000 hours
    Ordering Information
    Part Number
    Description
    Marks
    HZT-HDMI-4K1VV-SM001
    1-ch Bi-directional 4K HDMI@30hz With RS232 Data& Audio to Fiber converter, Singlemode with single  LC fiber Connector, 0~10KM, America/Europe/UK Plug Optional.
