4K@30Hz 4K HDMI Fiber Extender

  • Description
  • Technical data
  • Make an inquiry
    Description
    The 4K HDMI fiber to video/audio/data is composed of the transmitter and the receiver. The audio, video and data output from the computer host (HD video signal source, HD DVD/DVR and other devices) are extended to the remote user through one core optical fiber, and the image and sound of the computer host are listened in real time at the remote end.
    Function
    ● Support HDMI1.4, maximum support 4K30.
    ● Transmission bandwidth :10G.
    ● Transmission distance : 10km.
    ● Support HDCP.
    ● Maximum pixel clock 340M.
    ● Support RGB4:4:4  YUV4:4:4 YUV4:2:2  YUV4:2:0.
    ● EDID transparent transmission, downward compatibility with all systems 4K30.
    ● Built-in low jitter PLL,RMS jitter 0.03UI, high-speed transmission stable and reliable.
    ● Reverse transmission bandwidth 250M (EDID, HPD).
    ● HD non-compression transmission.
    ● Video delay <2ms.
    ● Support RS232/RS485( optional ).
    ● Support for simplex, duplex (RS232), half duplex.
    ● Support 2U chassis card type.
    ● Plug and play without debugging.
    Application
    ● LCD splicing large screen, LED splicing screen, project projection fusion project, video conference system;
    ● Monitor testing and burn-in
    ● Public Video System (Certification Companies, Futures Markets, Financial Documents, etc)
    ● High quality multimedia video conference display (Video Conference), briefing...
    ● Municipal command building center, substation control room, steel plant control room, cement plant control room, mine control room, coal mine, cement plant, thermal power station, fine chemical control room, digital machine room management

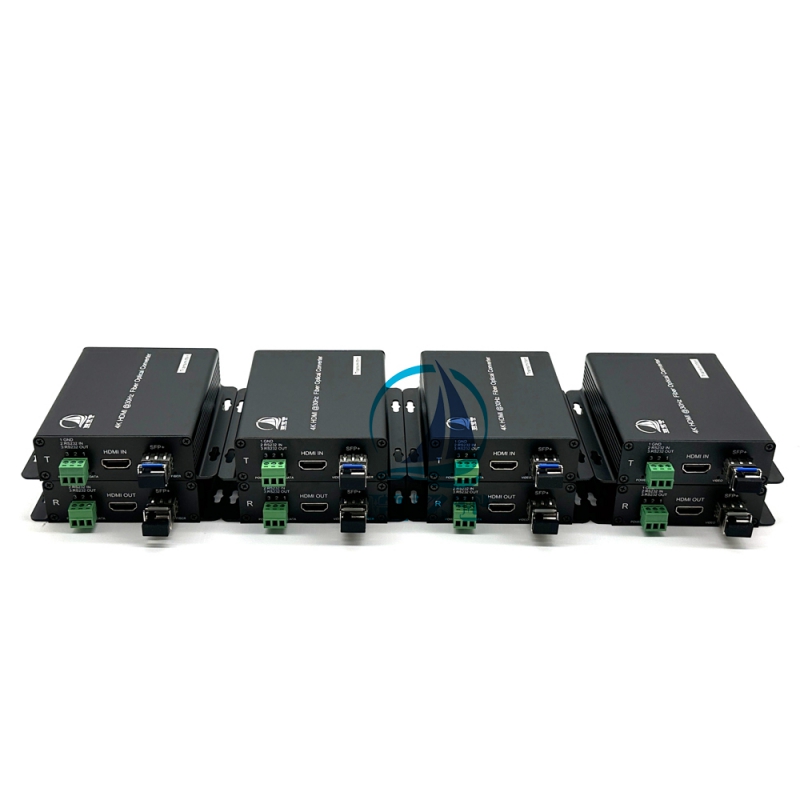

    Equipment panel description

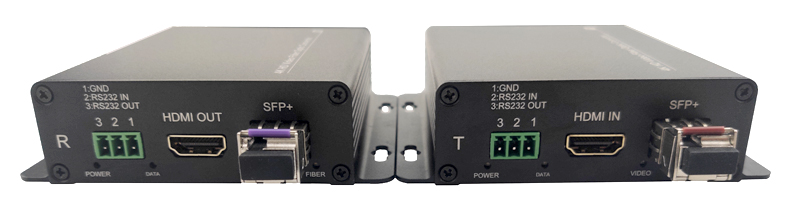

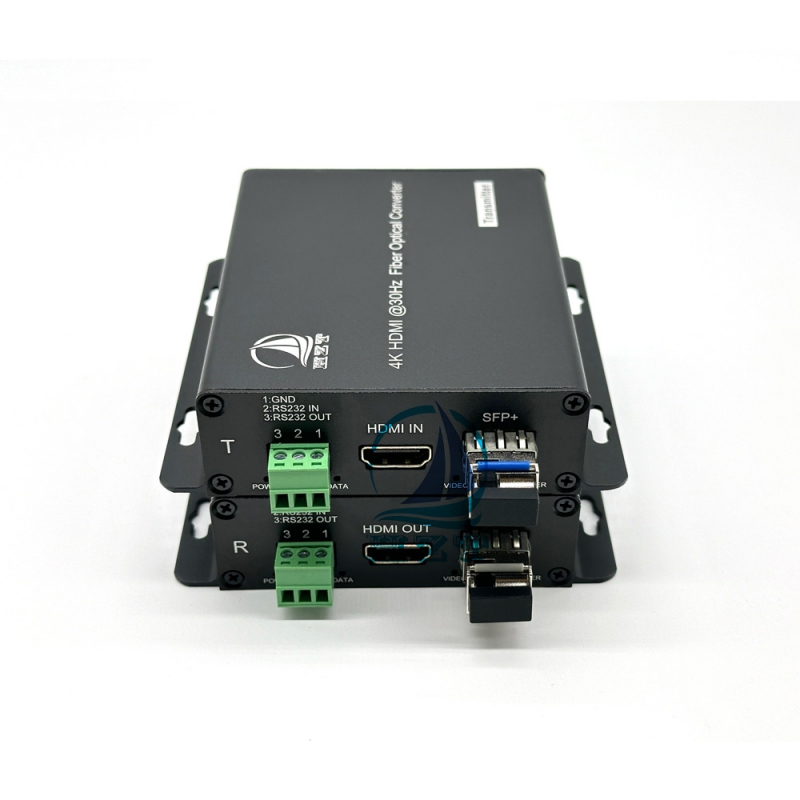

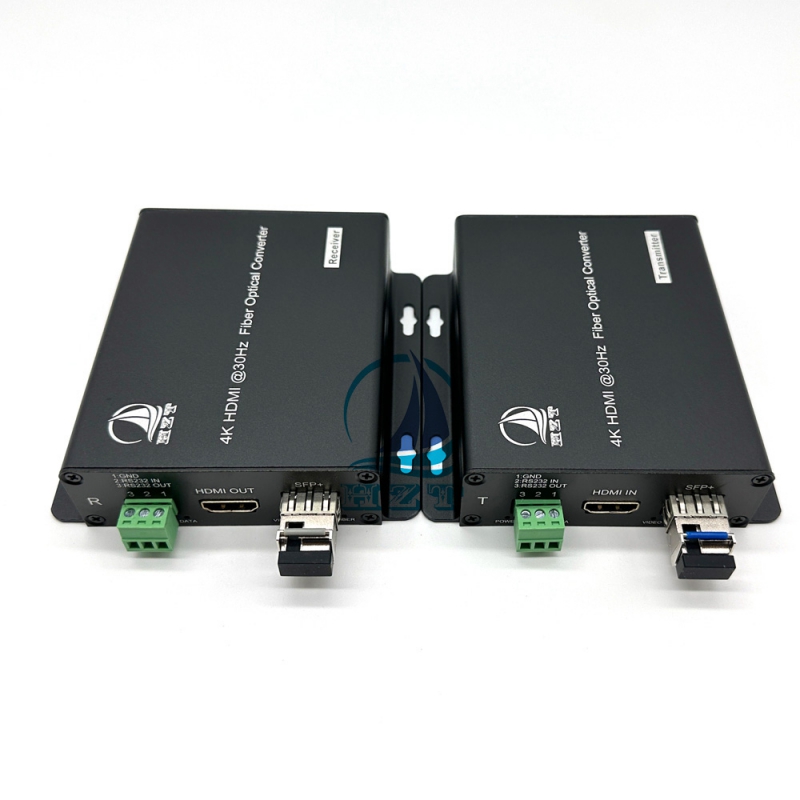

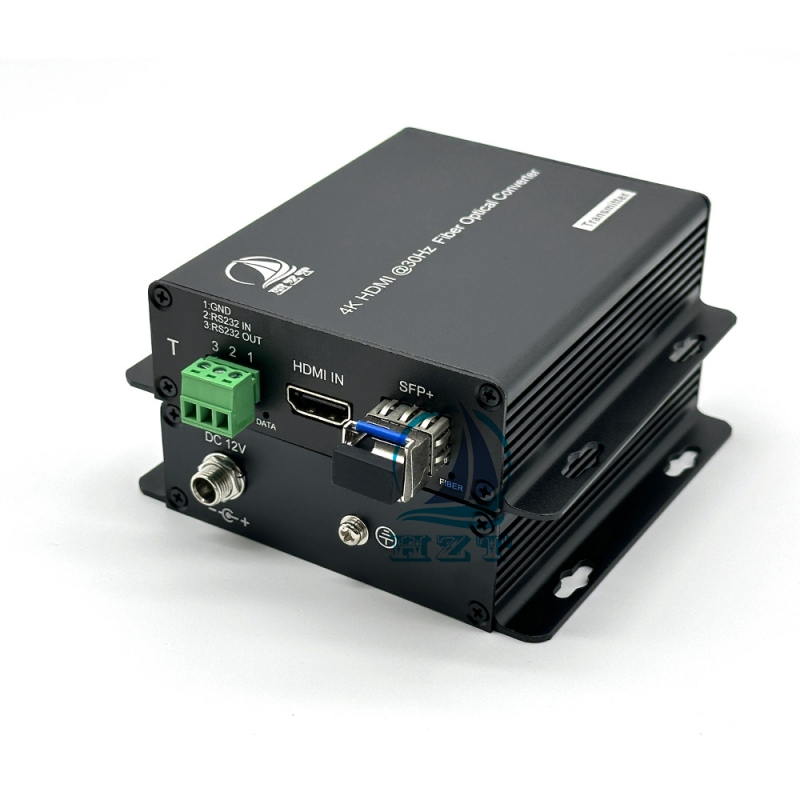

    Port description: 4K HDMI@30HZ Video to Fiber Optical Converter
    SFP +: 10G Video Fiber Optic Module
    Date: RS232 Serial Data
    HDMI IN : Video Input Interface
    HDMI OUT : Video Output Interface
    DC12V DC12V Power supply
    Indicator:
    FIBER: Light up: fiber signal
    No light: no fiber
    DATE: Flashing: Equipment working properly
    No light: equipment not working
    VIDEO: Light up: video signal
    No light: No video signal
    POWER: Light up: power on equipment
    No light: No power

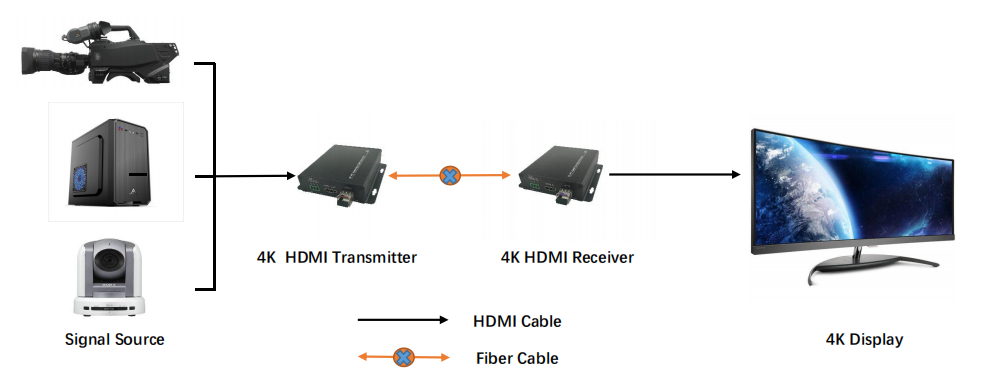

    Connection Diagram
    Specification

    Optical

    Wavelength :

    1270/1330nm

    Band bandwidth :

    10Gbps

    Tx power :

    >-7db

    Rx sensitivity :

    > -13dBm

    Signal standard

    Serial Digital Optical Signal

    Rate:

    100MHZ~3.125GHZ

    Optical connector :

    Single LC

    Distance :

    0 ~ 10KM For singlemode Fiber.

    HDMI Video

    HDMI Version :

    1.4

    HDCP:

    1.4

    Pixel Clock:

    340M

    Signal swing:

    0.3 V (vpp)

    AC impedance:

    100 ohms

    Signal coupling mode:

    AC coupling

    Resolution:

    4096*2160@30Hz,

    1920*1200@60P,

    1920*1080@60p/60i/50p/30p/25p/24p,

    1280*720@60P, 480i,576i

    Physical interface :

    HDMI Type

    Number of  Transmitter Channel :

    1-ch HDMI1.4 Video input

    Number of  Receiver Channel :

    1-ch HDMI1.4 Video output

    RS232 Data

    Level type:

    RS232

    Rate:

    50~115200 Hz downward compatibility

    Data bits:

    8 bit

    Physical interface:

    Phoenix Terminal (3 P)

    Number of Transmitter Channel :

    1-ch RS232 Data

    Number of Receiver Channel :

    1-ch RS232 Data

    Electrical & Mechanical

    Power Input:

    DC 12V1AIf you have any special requirements or questions that require prior consultation. Please fill out the following form and we will have the specialist contact you as soon as possible.
