Decsription

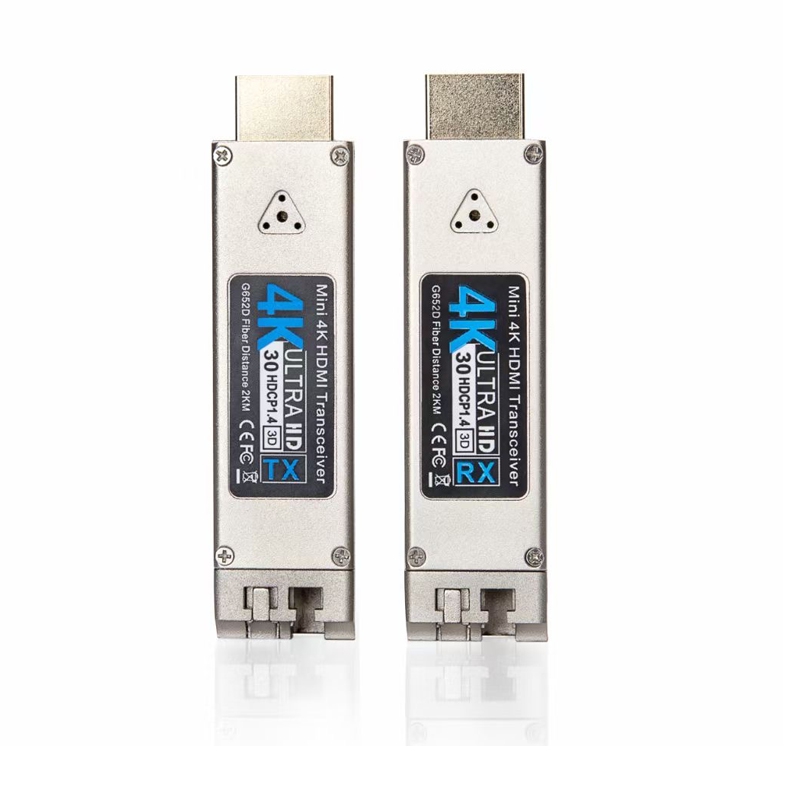

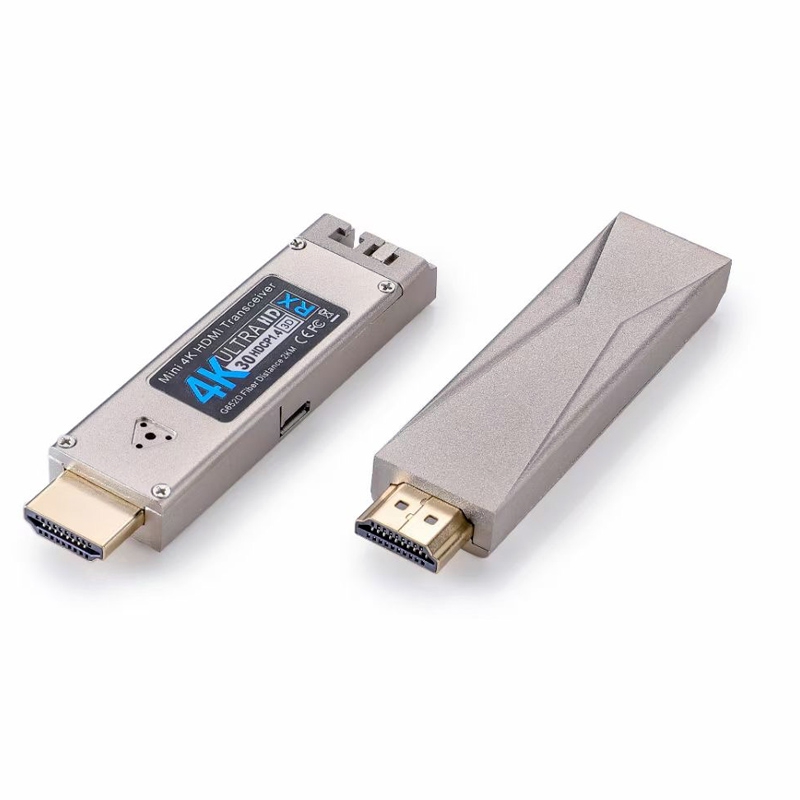

HZT Technology Independently developed Mini 4K HDMI optical converter (HZT-HDMI-4K-MSM001)with independent intellectual property rights. Absorbing the advantages of similar products at home and abroad,combined with the actual demand of the market,through a core/two core fiber transmission of 4K@30Hz HDMI video signal,to achieve no delay,no compression,high quality signal extension of 1 km.
Mini HDMI 1.4 optical converter adopts video processing and photoelectric conversion integrated design,high integration,small size,its optical components and core circuits are imported components,stable performance,suitable for different working environments.
Mini HDMI 1.4 optical converter conforms to the international HDCP protocol 1.4 standard,and backward compatible with HDMI1.3/1.2 version,automatic identification of EDID,with power off EDID memory storage function.
The power consumption of the mini HDMI 1.4 optical converter is less than 1.5W,and it uses micro-USB port for supply power,support power supply by charging bank,and has strong flexibility in use.
Feature
● Support HDCP protocol 1.4 standard;
● Support for EDID automatic identification;
● Support EDID memory storage function after power off;
● Support RGB4:4:4,YUV4:4:4/4:2:2/4:2:0 video format;
● Support single-mode dual-fiber/single-fiber transmission of 1KM;
● Support the status light display;
● Support power supply by charging bank;
● Support the mutual communication with our Mini DVI 1.0 series;
● Plug and play,without debugging;
Application
● Stage rental;
● LED large screen;
● Projection fusion;
● Live TV;
● Radio and television and video recording;
● Video conferencing;
● Information release and display system;
● Command and dispatch center;

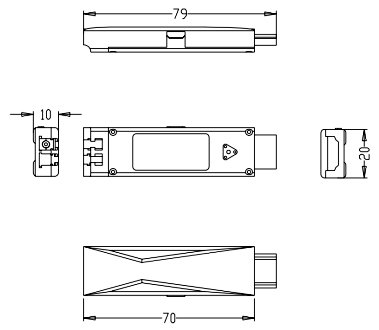

Production Dimension

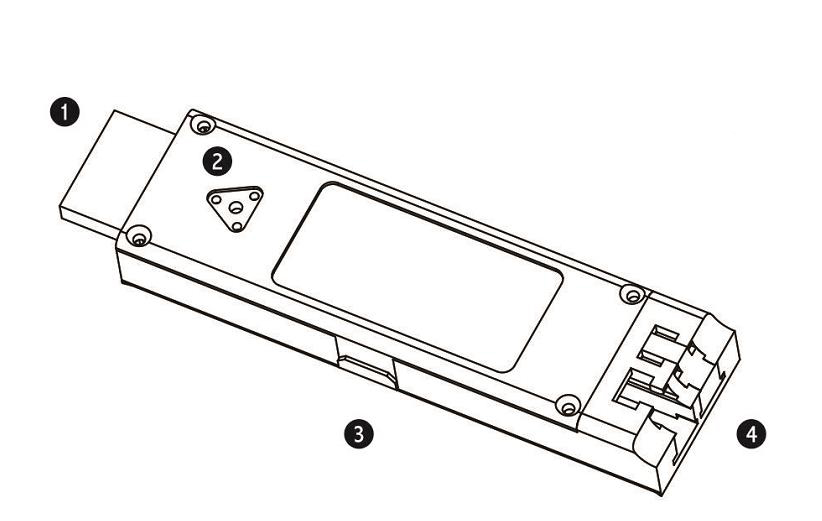

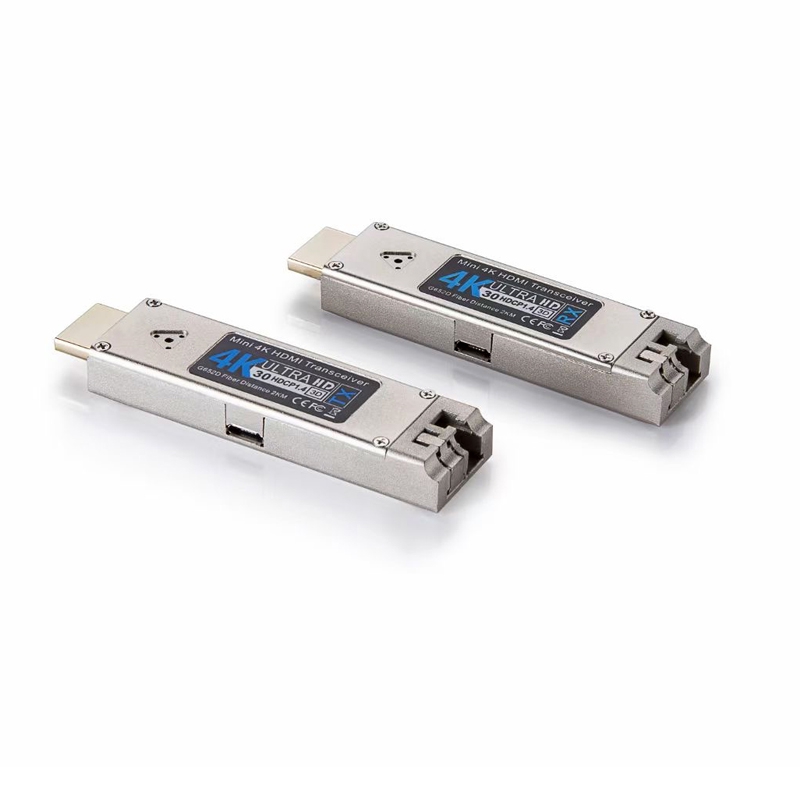

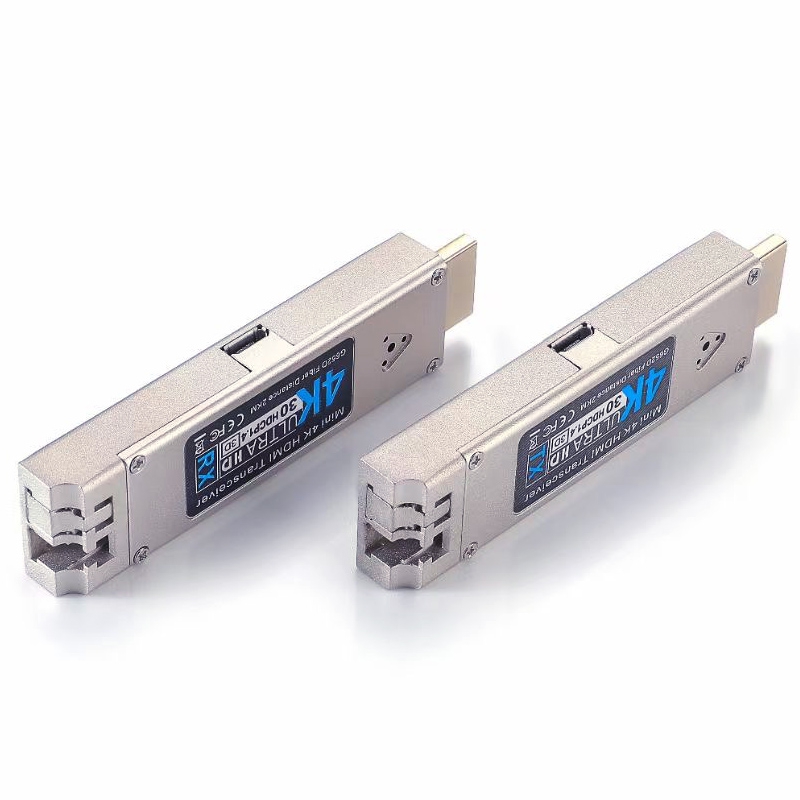

Interface Description
| ① |
HDMI Type (HDMI male) |
| ② |
Status indicator light |
| ③ |
Micro-USB power supply interface |
| ④ |
LC fiber interface |
LED Status Description
| Transmitter (T) |
|
|
|
| Operating status |
Powered up |
Fiber signal |
Video signal |
| Indicator light Status |
Red light |
Red light |
Purple light |
| Receiver (R) |
|
|
|
| Operating status |
Powered up |
Fiber signal |
Video signal |
| Indicator light status |
Red light |
Purple light |
Purple light |
